TAG Tow Ball Mount - 178mm Long, 90° Tongue Face, 50mm Square Hitch

files/L4120.jpg
files/product_media-32069-L4120_L4120-D.jpg
files/l4120-4133328974264-3-b0f5ef2b.jpg

TAG Tow Ball Mount - 178mm Long, 90° Tongue Face, 50mm Square Hitch

SKU L4120

RRP: $82.99

TAG Chrome Tow Ball - 50mm, 3.5 tonne

TAG Chrome Tow Ball - 50mm, 3.5 tonne

SKU: UNT010

$22.59

related

TAG Zinc Plated Tow Ball - 50mm, 3.5 tonne

TAG Zinc Plated Tow Ball - 50mm, 3.5 tonne

SKU: UNT010ZP

$22.59

compatible

Quantity

RRP: $82.99

Product Description

TAG Tow Ball Mounts are manufactured using drop-forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

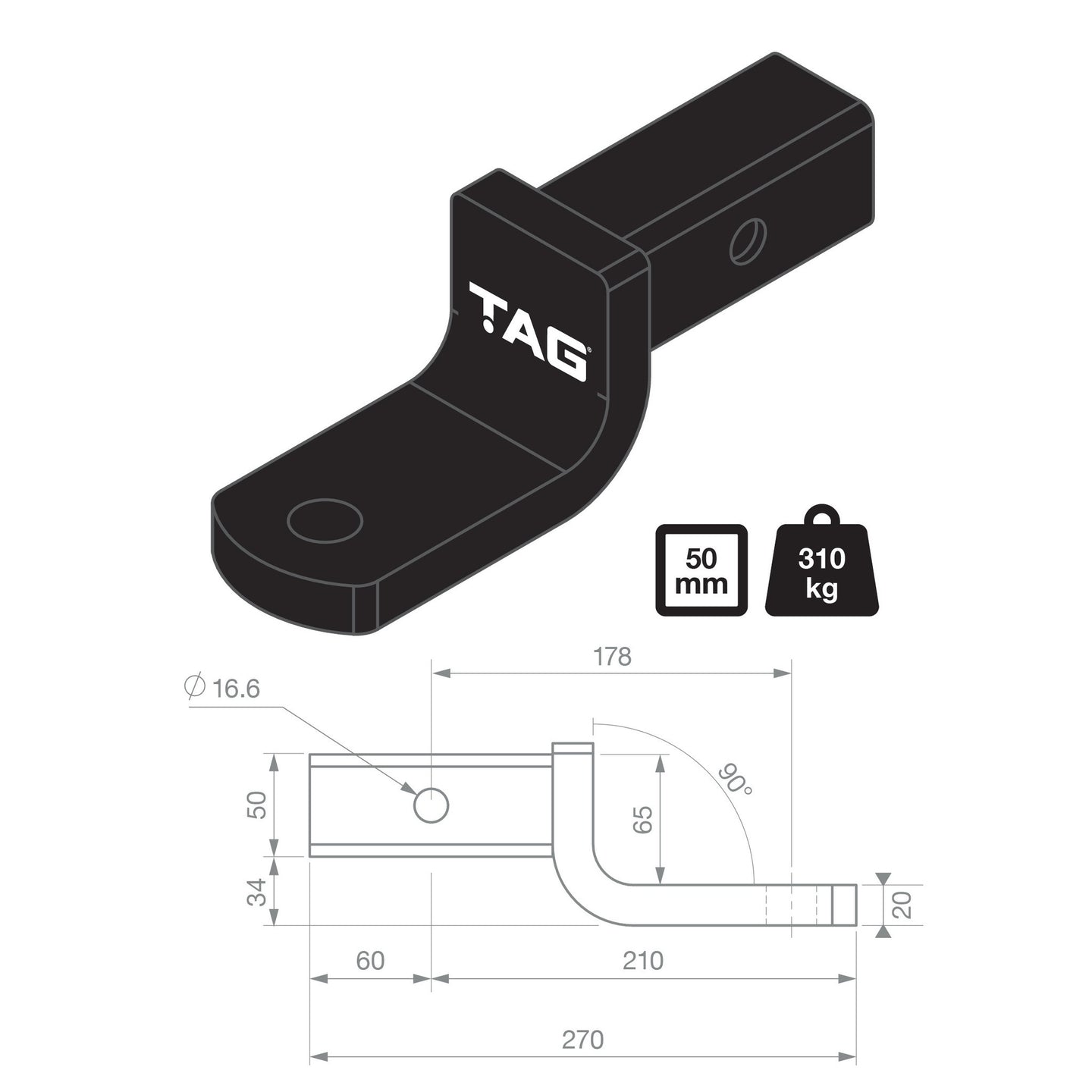

178mm Long (Hitch Pin Hole to Tow Ball Hole)
90° Tongue Face
Drop: 14mm
Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
3100kg Gross Trailer Weight
310kg Ball Weight
Drop Mode or Rise Mode
Powder Coated Finish
ADR 62/02 Compliant
Limited Lifetime Warranty

Tow Ball, R-Clip & Hitch Pin sold separately.

Product Attributes

Specifications

Hitch type Heavy Duty 50mm Square
Tow ball mount class Heavy Duty (Class 4)
Gross trailer weight 3100
Drop 40mm
Length (pin to ball) 178mm
Front to pin (mm) 210
Back to pin (mm) 60
Tongue face 90°
Coating Powder Coated
Length 270
Ball weight [kg] 310
