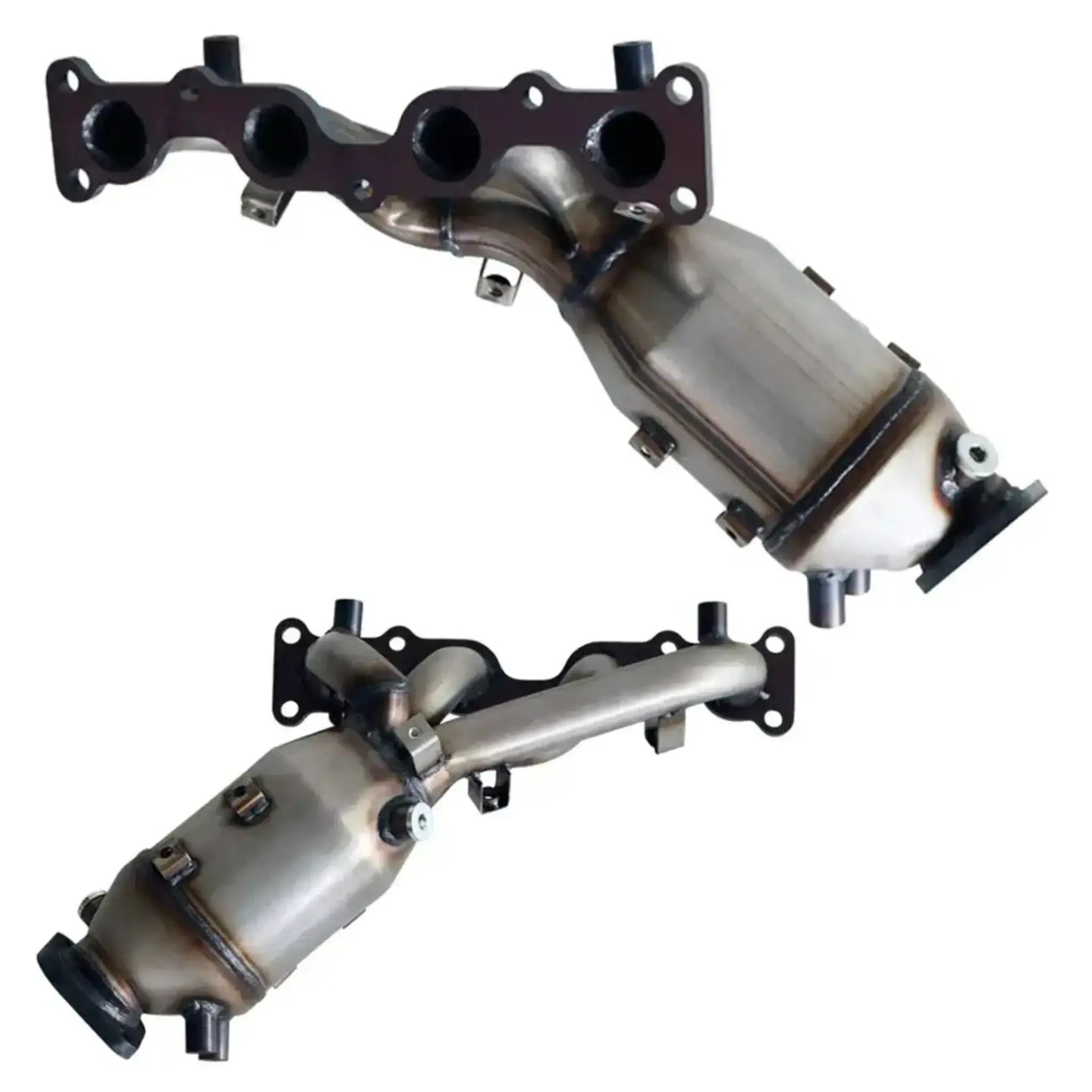

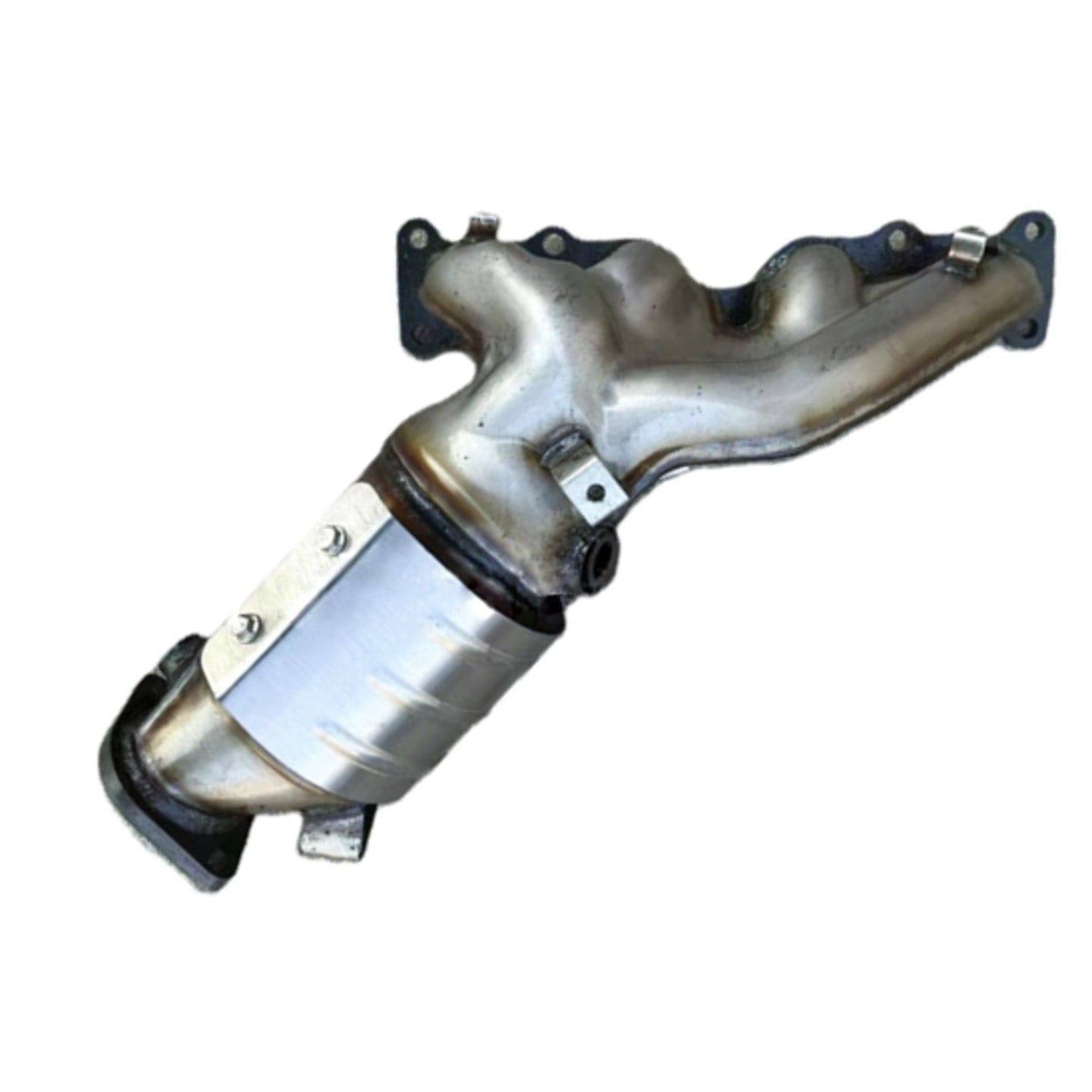

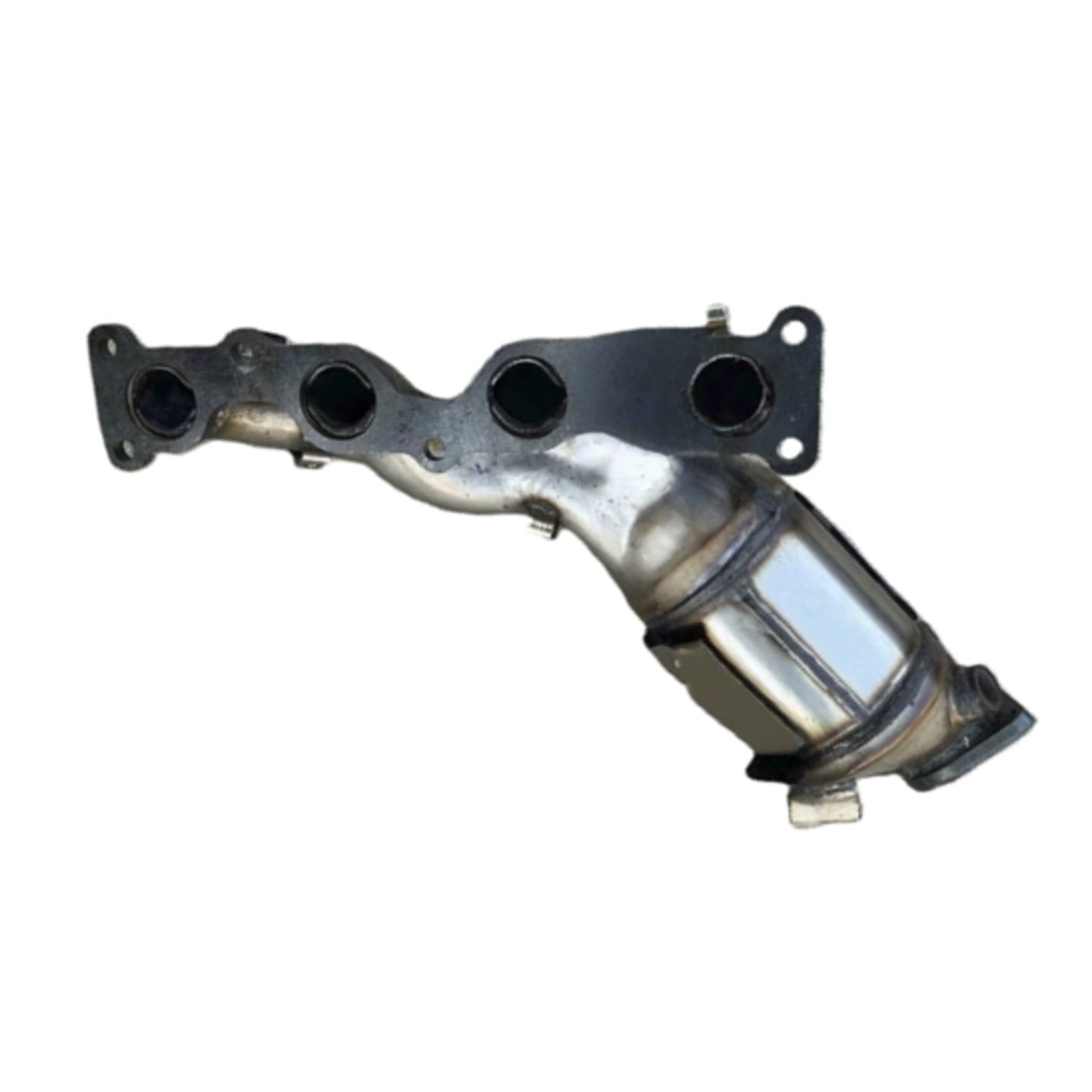

Replacement Manifold Catalytic Converter

  • Direct fit manifold catalytic converter for Hyundai iLoad and Hyundai iMax TQ-W 2.4L G4KG

  • Direct fit on most models — note: due to slight variations on later model iMax, modifications to the flange plate and heat shields may be necessary (uncommon)

  • 409 stainless steel with internally welded collector

  • Increased Euro rating

  • Includes MCV079 and MCV079K fitting kit

Fitting & Warranty Information

Ensure all mechanical and engine management issues are corrected before installation of this product. Failure to address underlying issues may cause premature failure and void warranty.

For warranty claim, the following documentation may be required:

  • Original vehicle OBD scan report and current OBD scan report

  • Original invoice and service report for all mechanical and tuning issues

Vehicle Applications

Hyundai ILoad (02/2008 - on)

Make Model From To Body Series Engine Variant Drivetrain
HYUNDAI iLoad 01/2009 - Van TQ G4KG | 2.4L | Petrol 3S LIFTBACK 12/16 --> Automatic/Manual RWD
HYUNDAI iLoad 02/2008 11/2016 Van TQ G4KC, G4KG | 2.4L | Petrol - RWD
HYUNDAI iLoad 02/2008 12/2009 Van TQ G4KG | 2.4L | Petrol - Automatic/Manual RWD

Hyundai IMAX (02/2008 - on)

Make Model From To Body Series Engine Variant Drivetrain
HYUNDAI iMAX 02/2008 - Bus TQ G4KG | 2.4L | Petrol - Automatic RWD
HYUNDAI iMAX 02/2008 11/2016 Bus TQ G4KC, G4KG | 2.4L | Petrol i RWD
