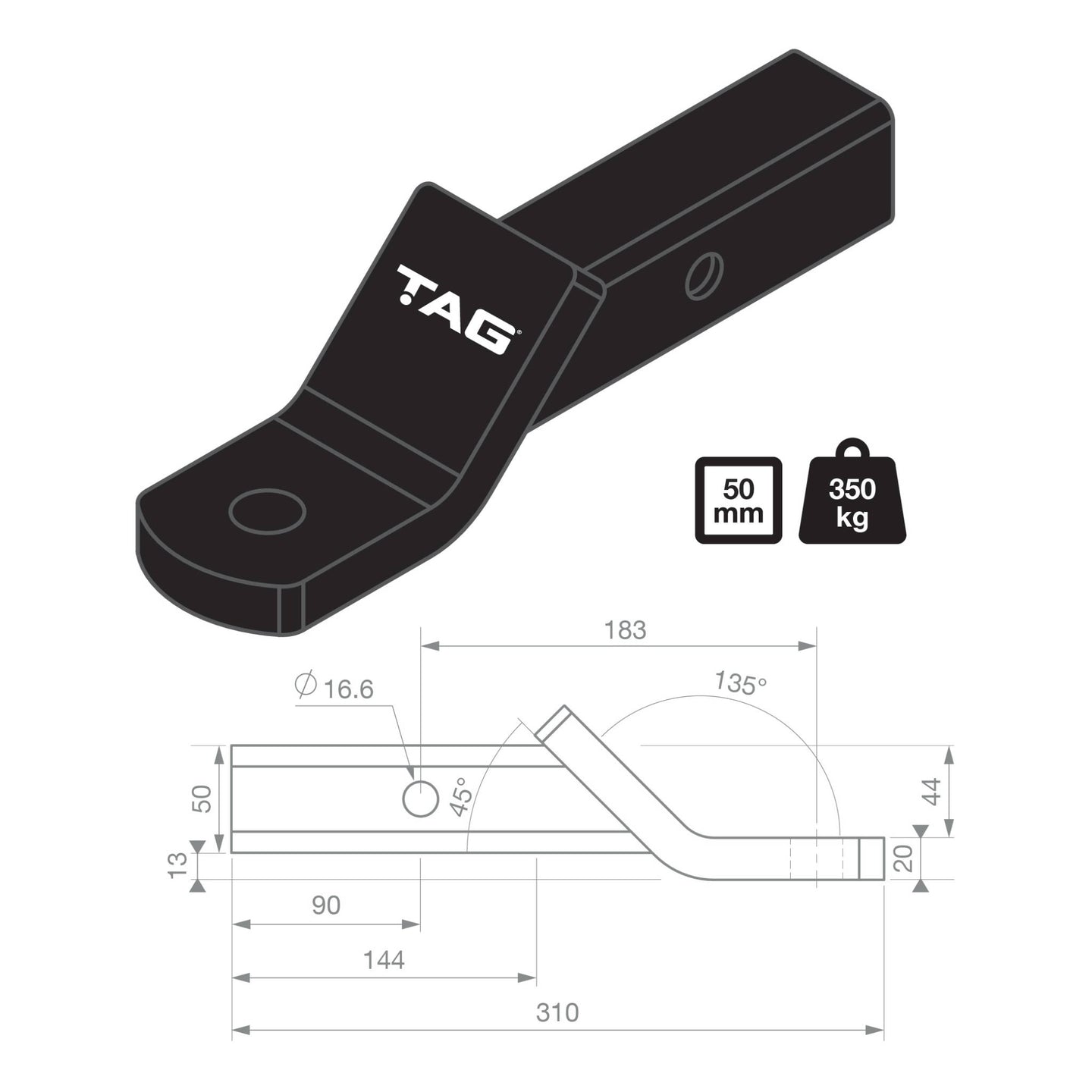

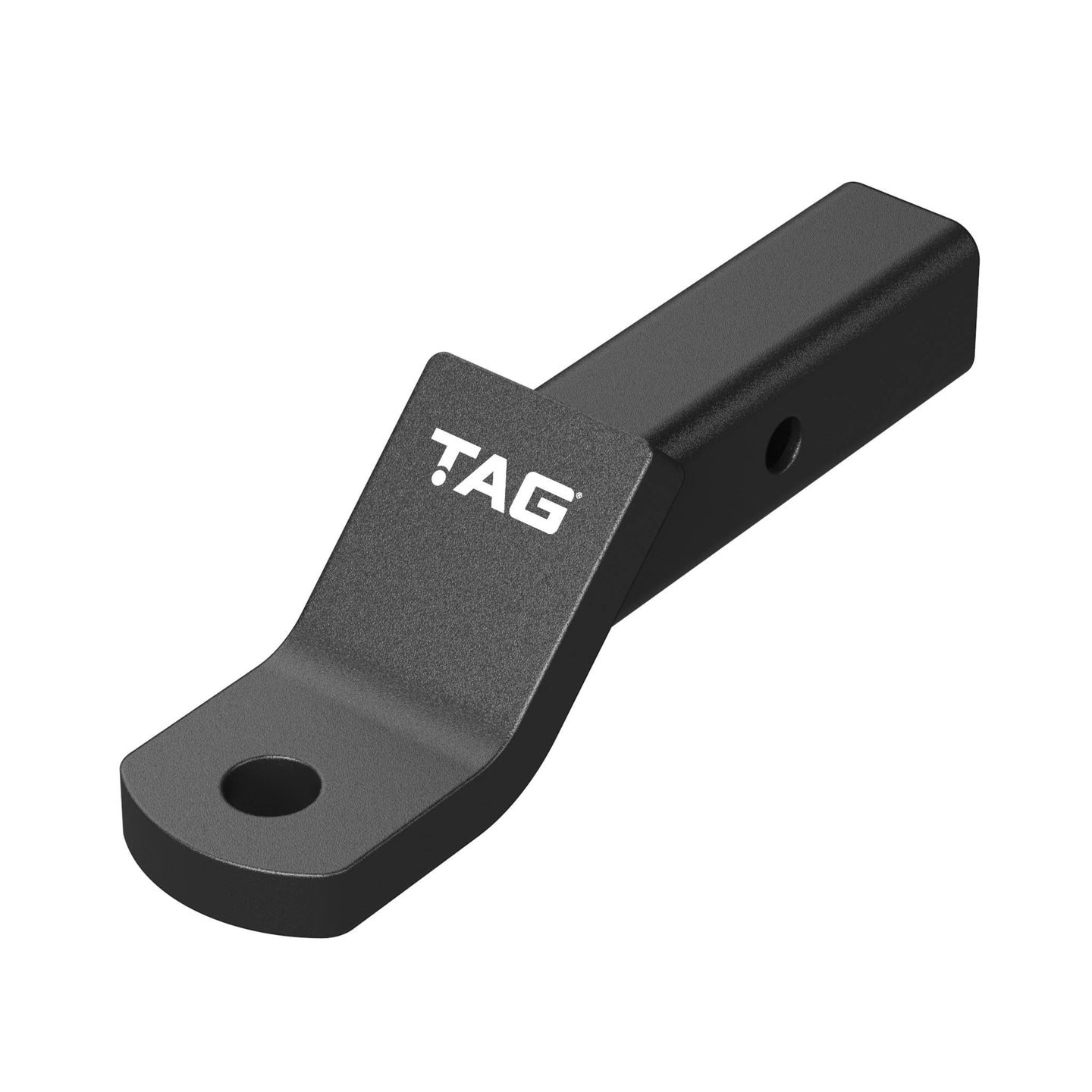

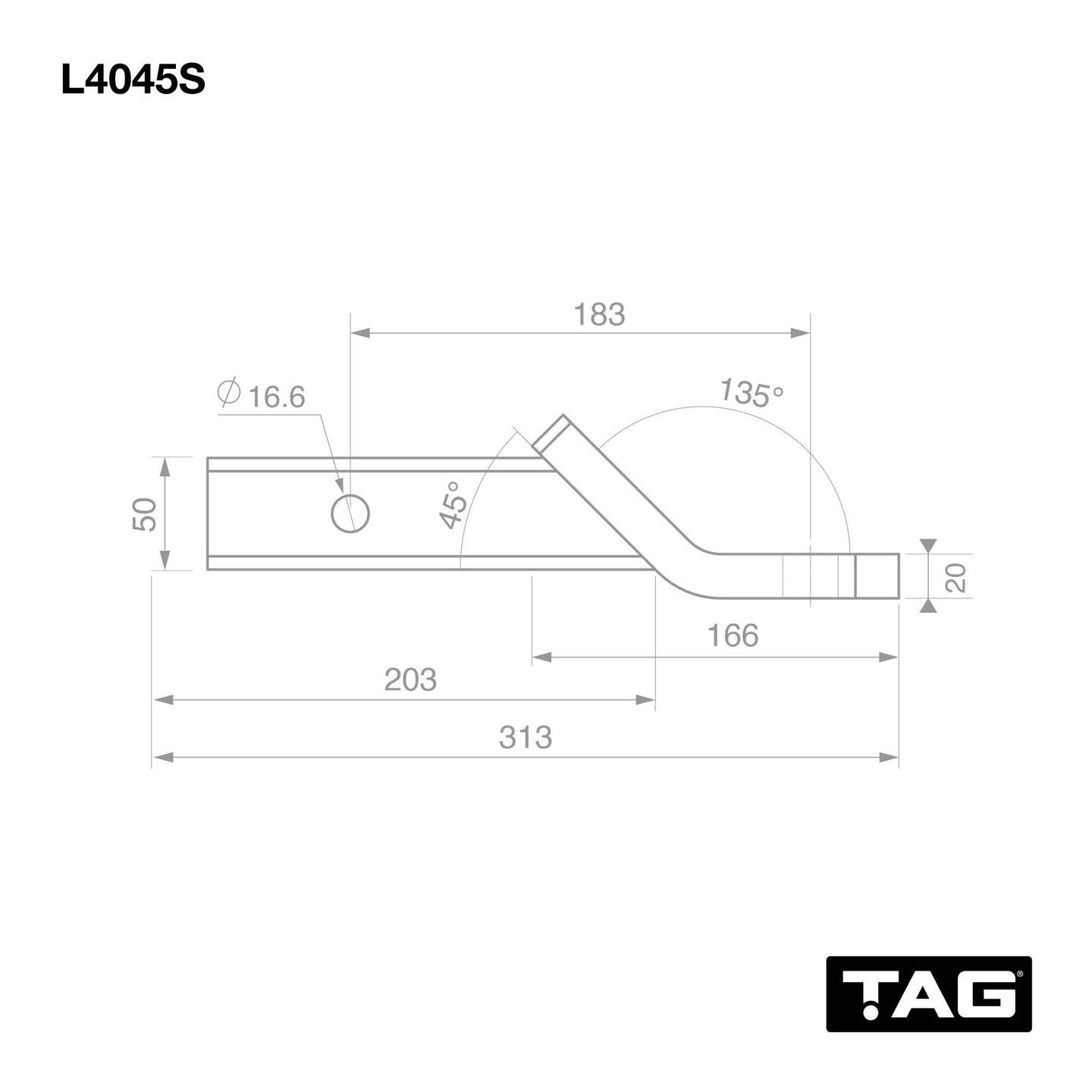

TAG Tow Ball Mount - 183mm Long, 135° Face, 50mm Square Hitch

SKU L4045S
$78.99
$63.19
$78.99
$63.19

You may also need

Product Attributes
  • Ball weight [kg] 350
  • Tow ball mount class Heavy Duty (Class 4)
  • Gross trailer weight 3500
  • Hitch type Heavy Duty 50mm Square
  • Drop 44mm
  • Rise 13
  • Length 313
  • Length (pin to ball) 183mm
  • Front to pin (mm) 213
  • Back to pin (mm) 90
  • Tongue face 135°
  • Coating Powder Coated

TAG Tow Ball Mounts are manufactured using drop-forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

  • 183mm Long (Hitch Pin Hole to Tow Ball Hole)

  • 135° Tongue Face

  • Drop: 18mm

  • Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball

  • 3500kg Gross Trailer Weight

  • 350kg Ball Weight

  • Durable Powder-Coated Finish

  • ADR 62/02 Compliant

  • TAG Limited Lifetime Warranty

Tow Ball, R-Clip & Hitch Pin sold separately.
