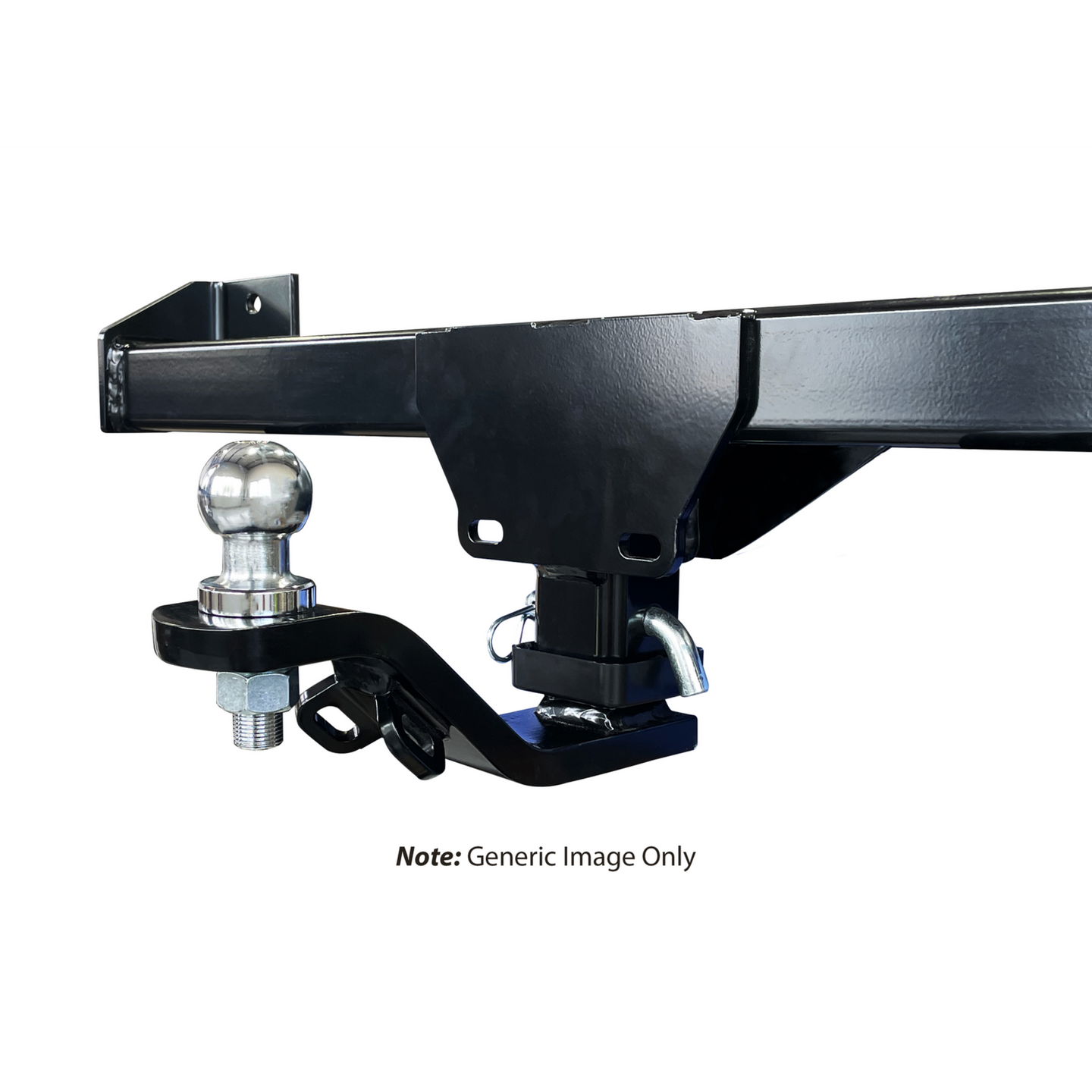

TOWRITE Towbar Heavy Duty for Isuzu D-MAX (06/2012 - 06/2020)

SKU 115244-ID
$1,180.00

Important Note

Ute Extended Tray Without Step Wiring Harness Supplied - UNT285-FIT-F

$1,180.00
Product Attributes
  • Towing capacity (kg) 3500
  • Ball weight (kg) 350
  • Fitting time (min) 135
  • Bumper cut out required N/A

TowRite Heavy Duty Towbar suits Isuzu D-MAX Ute Extended Tray (06/2012 - 07/2020, Without Rear Step)

Features:

  • Heavy Duty Class 4 Towbar

  • Rated to 3500kg towing capacity and 350kg ball weight

  • 50mm x 50mm slide-in style ball mount

  • Durable powder-coated protective finish for long-term corrosion protection

  • Proudly Australian made

  • Backed by the TowRite Limited Lifetime Warranty

  • Designed and tested to comply with Australian Standard AS/NZS4177

Parts Included:

  • Chrome finish tow ball

  • Rated D-shackles

  • All required nuts, bolts, and mounting hardware

Please Note:

  • Designed for extended tray models without a rear step

Vehicle Applications

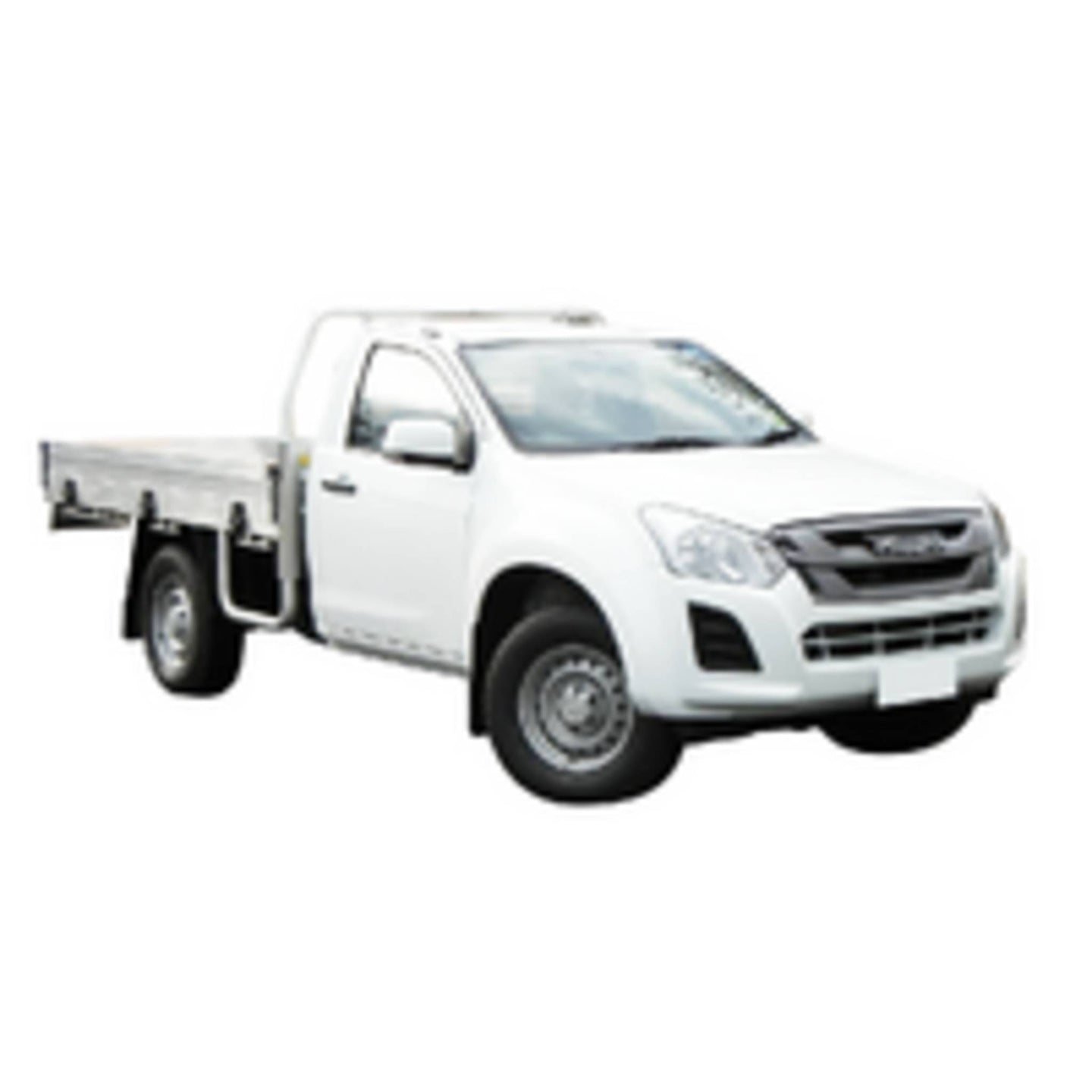

Isuzu D-MAX (06/2012 - 06/2020)

Make Model From To Body Series Engine Variant Drivetrain
ISUZU D-MAX 06/2012 06/2020 Cab Chassis TF 4JJ1-TCX | 3.0L | Diesel CRDi AWD
ISUZU D-MAX 06/2012 06/2020 Cab Chassis TF 4JJ1-TCX | 3.0L | Diesel CRDi RWD
ISUZU D-MAX 06/2012 06/2020 Ute TF 4JJ1-TCX | 3.0L | Diesel CRDi AWD
ISUZU D-MAX 06/2012 06/2020 Ute TF 4JJ1-TCX | 3.0L | Diesel CRDi RWD
ISUZU D-MAX 06/2012 06/2020 Ute TFR 4JJ1-TCX | 3.0L | Diesel SX SPACE CAB Automatic/Manual RWD
ISUZU D-MAX 06/2012 05/2020 Cab Chassis TFR, TFS 4JJ1-TC | 3.0L | Diesel CRDi AWD
ISUZU D-MAX 06/2012 05/2020 Cab Chassis TFR, TFS (TFR85J) 4JJ1-TC | 3.0L | Diesel CRDi RWD
ISUZU D-MAX 06/2012 05/2020 Cab Chassis TFR, TFS 4JJ1-TC | 3.0L | Diesel CRDi RWD
ISUZU D-MAX 06/2012 05/2020 Ute TFR, TFS (TFS85J) 4JJ1-TC | 3.0L | Diesel CRDi AWD
ISUZU D-MAX 06/2012 06/2020 Ute TFS 4JJ1-TCX | 3.0L | Diesel EX, SX Automatic/Manual 4WD
ISUZU D-MAX 06/2012 06/2020 Ute TFR 4JJ1-TCX | 3.0L | Diesel LS HI-RIDE, LS-T HIGH-RIDE, LS-TERRAIN HI-RIDE, LS-U HI-RIDE, SX, SX HI-RIDE Automatic/Manual RWD
ISUZU D-MAX 06/2012 06/2020 Ute TFS 4JJ1-TCX | 3.0L | Diesel LS-M, LS-M HI-RIDE, LS-T 01/19, LS-TERRAIN HI-RIDE, LS-U, LS-U HI-RIDE, SX, SX HI-RIDE, X-RIDER LIMITED EDTION, X-RUNNER Automatic/Manual 4WD
ISUZU D-MAX 06/2012 06/2020 Ute TFS 4JJ1-TCX | 3.0L | Diesel LS-U, LS-U HI-RIDE, SX SPACE CAB Automatic/Manual 4WD
ISUZU D-MAX 06/2012 06/2020 Ute TFR 4JJ1-TCX | 3.0L | Diesel SX, SX HI-RIDE, SX LOW-RIDE Automatic/Manual RWD
ISUZU D-MAX 06/2012 12/2018 Ute TF RZ4E-TC | 1.9L | Diesel - 4WD
ISUZU D-MAX 06/2012 12/2018 Ute TF RZ4E-TC | 1.9L | Diesel - 4WD
ISUZU D-MAX 06/2012 12/2018 Ute TF RZ4E-TC | 1.9L | Diesel - RWD
ISUZU D-MAX 06/2012 12/2018 Ute TF RZ4E-TC | 1.9L | Diesel - RWD
ISUZU D-MAX 06/2012 12/2018 Ute TF 4JK1-TC | 2.5L | Diesel - 4WD
ISUZU D-MAX 06/2012 12/2018 Ute TF 4JK1-TC | 2.5L | Diesel - 4WD
ISUZU D-MAX 06/2012 12/2018 Ute TF 4JK1-TC | 2.5L | Diesel - RWD
ISUZU D-MAX 06/2012 12/2018 Ute TF 4JK1-TC | 2.5L | Diesel - RWD
ISUZU D-MAX 06/2012 01/2017 Ute TF 4JK1-TC | 2.5L | Diesel D AWD
ISUZU D-MAX 06/2012 01/2017 Ute TF 4JK1-TC | 2.5L | Diesel D RWD
ISUZU D-MAX 06/2012 12/2016 Ute TF 4JK1-TC | 2.5L | Diesel - Automatic/Manual 4WD
ISUZU D-MAX 06/2012 12/2016 Ute TF 4JK1-TC | 2.5L | Diesel - Automatic/Manual RWD
ISUZU D-MAX 06/2012 05/2012 Ute TF 4JJ1-TC | 3.0L | Diesel - Automatic/Manual RWD
ISUZU D-MAX 06/2012 05/2012 Ute TFS 4JJ1-TC | 3.0L | Diesel EX, FARM MATE TRAY, SX, FARM MATE TRAY Automatic/Manual 4WD
ISUZU D-MAX 06/2012 05/2012 Ute TFS 4JJ1-TC | 3.0L | Diesel LE, LS-M LS-U LS-U ARTIC PEARL LE, SX, X-RUNNER Automatic/Manual 4WD
ISUZU D-MAX 06/2012 05/2012 Ute TF 4JJ1-TC | 3.0L | Diesel SX Automatic/Manual RWD
ISUZU D-MAX 06/2012 08/2012 Ute RC 4JK1-TC | 2.5L | Diesel CRDi AWD
