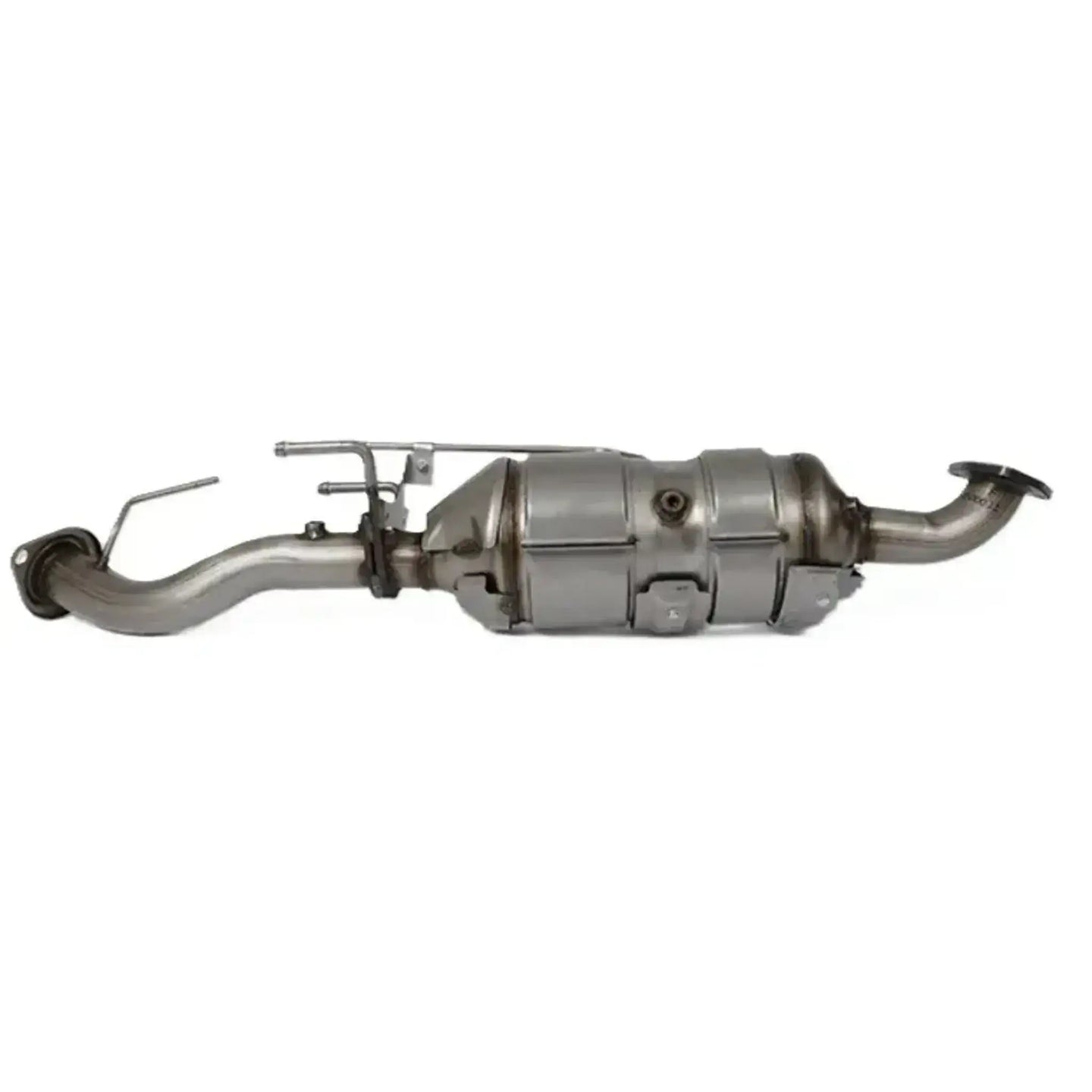

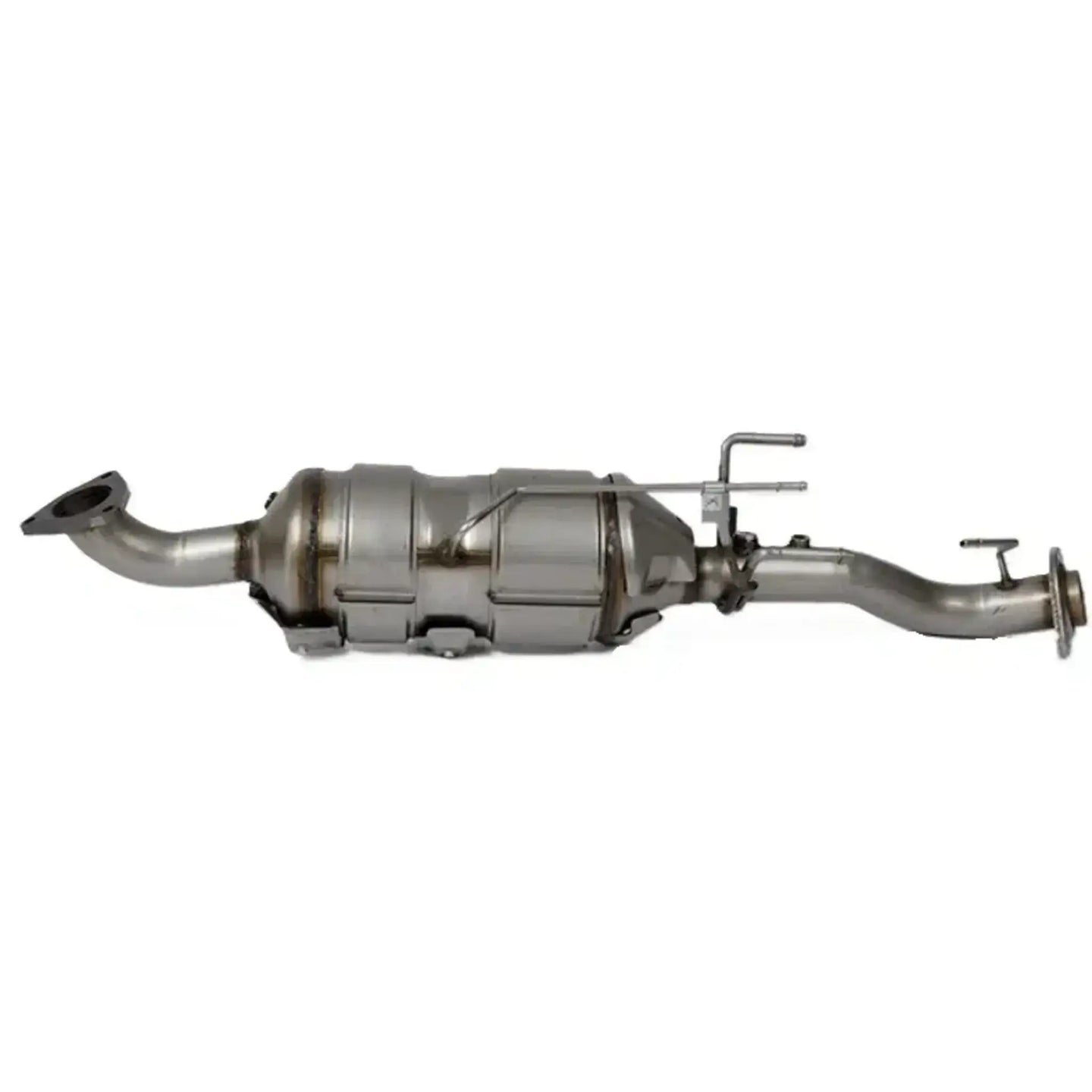

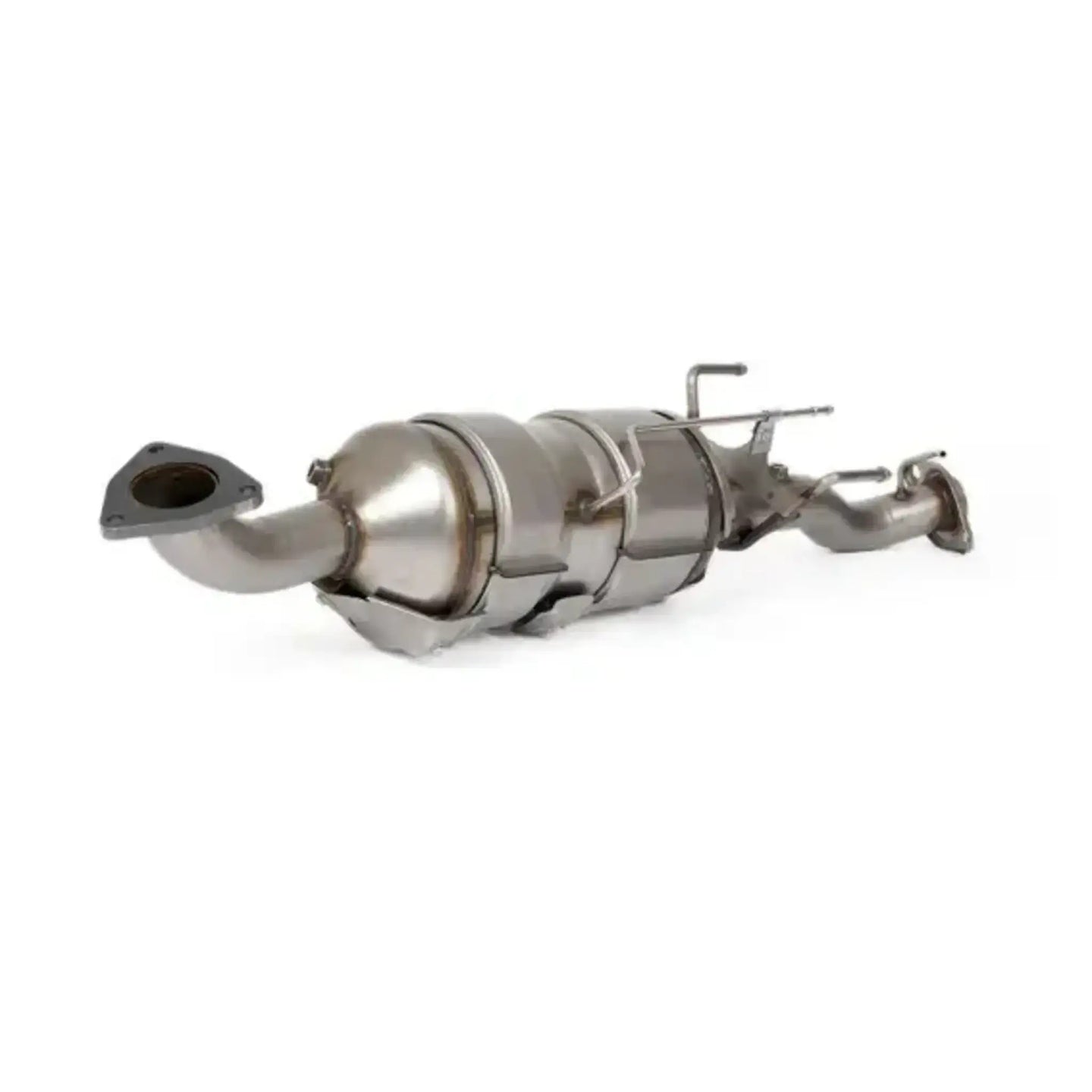

Equipe Diesel Particulate Filter for Toyota Hiace - DPF176

SKU DPF176K

RRP: $2,446.51

Important Note

Australian Import Only - Will Not Japanese Imports

Quantity

Product Description

Replacement Diesel Particulate Filter

Direct fit DPF for Toyota Hiace 200 Series (inc Commuter Bus) KDH201R/206R/211R/220R/221R/222R/223R 3.0L CRD Turbo 1KD-FTV (2006 - 2019) — Australian Import
Euro 5 emissions standard
Direct fit application — bolt-on to factory flanges, no cutting or welding required
Includes DPF176 and DPF176K fitting kit

Fitting & Warranty Information

Ensure all mechanical and engine management issues are corrected before installation of this product. Failure to address underlying issues may cause premature failure and void warranty.

For warranty claim, the following documentation may be required:

Original vehicle OBD scan report and current OBD scan report
Original invoice and service report for all mechanical and tuning issues

Product Attributes

Vehicle Applications

Toyota Hiace (08/2004 - on), Hiace / Commuter (08/2004 - on), Regius Ace (08/2004 - on), Regiusace (08/2004 - on)

Make	Model	From	To	Body	Generation	Chassis	Engine	Variant	Drivetrain
TOYOTA	HIACE	08/2007	-	Van	KDH206R	-	1KDFTV \| 3.0L \| Diesel	DX	Automatic/Manual 4WD
TOYOTA	HIACE	05/2010	01/2019	Van	KDH2	KDH201R	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE	05/2010	01/2019	Van	KDH2	KDH221R	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE	11/2008	05/2019	Van	KDH2	KDH206R	1KD-FTV \| 3.0L \| Diesel	D	AWD
TOYOTA	HIACE	11/2006	01/2019	Bus	KDH223R	-	1KDFTV \| 3.0L \| Diesel	COMMUTER BUS	Automatic/Manual RWD
TOYOTA	HIACE	11/2006	01/2019	Van	KDH2	KDH221R	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE	11/2006	01/2019	Van	KDH2	KDH201R	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE	11/2006	01/2019	Van	KDH201R	-	1KDFTV \| 3.0L \| Diesel	LWB	Automatic/Manual RWD
TOYOTA	HIACE	11/2006	01/2019	Van	KDH221R	-	1KDFTV \| 3.0L \| Diesel	SLWB	Automatic/Manual RWD
TOYOTA	HIACE	01/2005	01/2019	Van	KDH2	KDH200R	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE	01/2005	01/2019	Van	KDH2	KDH223R	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE	09/2006	07/2010	Van	KDH2	KDH220R	2KD-FTV \| 2.5L \| Diesel	D-4D	RWD
TOYOTA	HIACE	09/2006	07/2010	Van	KDH2	KDH200R	2KD-FTV \| 2.5L \| Diesel	D-4D	RWD
TOYOTA	HIACE	09/2007	11/2008	Van	KDH2	KDH206R	1KD-FTV \| 3.0L \| Diesel	D	AWD
TOYOTA	HIACE	08/2004	09/2007	Van	KDH2	KDH205	2KD-FTV \| 2.5L \| Diesel	D-4D	AWD
TOYOTA	HIACE	08/2004	09/2007	Van	KDH2	KDH225	2KD-FTV \| 2.5L \| Diesel	D-4D	AWD
TOYOTA	HIACE	08/2004	09/2007	Van	KDH200R	-	2KDFTV \| 2.5L \| Diesel	DX, LONG, ROUTE, SUPER GL	Automatic/Manual RWD
TOYOTA	HIACE	03/2005	10/2006	Bus	KDH222R	-	2KDFTV \| 2.5L \| Diesel	COMMUTER BUS	Automatic/Manual RWD
TOYOTA	HIACE	03/2005	10/2006	Van	KDH200R	-	2KDFTV \| 2.5L \| Diesel	LWB	Automatic/Manual RWD
TOYOTA	HIACE	03/2005	10/2006	Van	KDH220R	-	2KDFTV \| 2.5L \| Diesel	SLWB	Automatic/Manual RWD
TOYOTA	HIACE	01/2005	09/2006	Van	KDH2	KDH220R	2KD-FTV \| 2.5L \| Diesel	D-4D	RWD
TOYOTA	HIACE	01/2005	09/2006	Van	KDH2	KDH200R	2KD-FTV \| 2.5L \| Diesel	D-4D	RWD
TOYOTA	HIACE / COMMUTER	01/2005	-	Bus	TRH2	TRH219W	2TR-FE \| 2.7L \| Petrol	-	AWD
TOYOTA	HIACE / COMMUTER	08/2004	01/2019	Bus	KDH2	KDH203R	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE / COMMUTER	08/2004	01/2019	Bus	KDH2	KDH221	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE / COMMUTER	08/2004	01/2019	Bus	KDH2	KDH223	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE / COMMUTER	05/2010	12/2014	Bus	KDH2	KDH223	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE / COMMUTER	05/2010	12/2014	Bus	KDH2	KDH223	1KD-FTV \| 3.0L \| Diesel	D	RWD
TOYOTA	HIACE / COMMUTER	08/2004	09/2007	Bus	KDH2	KDH225	2KD-FTV \| 2.5L \| Diesel	D-4D	AWD
TOYOTA	HIACE / COMMUTER	08/2004	09/2007	Bus	KDH2	KDH227	2KD-FTV \| 2.5L \| Diesel	D-4D	AWD
TOYOTA	HIACE / COMMUTER	08/2004	09/2007	Bus	KDH2	KDH205	2KD-FTV \| 2.5L \| Diesel	D-4D	AWD
TOYOTA	HIACE / COMMUTER	09/2006	12/2006	Bus	KDH2	KDH212	2KD-FTV \| 2.5L \| Diesel	D-4D	RWD
TOYOTA	HIACE / COMMUTER	09/2006	12/2006	Bus	KDH2	KDH202	2KD-FTV \| 2.5L \| Diesel	D-4D	RWD
TOYOTA	HIACE / COMMUTER	09/2006	12/2006	Bus	KDH2	KDH222	2KD-FTV \| 2.5L \| Diesel	D-4D	RWD
TOYOTA	REGIUS ACE	08/2004	-	Bus	KDH2	KDH206	1KD-FTV \| 3.0L \| Diesel	D-4D	AWD
TOYOTA	REGIUS ACE	08/2004	12/2020	Van	KDH2	KDH201	1KD-FTV \| 3.0L \| Diesel	D-4D	RWD
TOYOTA	REGIUS ACE	08/2004	12/2020	Van	KDH2	KDH211	1KD-FTV \| 3.0L \| Diesel	D-4D	RWD
TOYOTA	REGIUS ACE	08/2004	12/2020	Van	KDH2	KDH221	1KD-FTV \| 3.0L \| Diesel	D-4D	RWD
TOYOTA	REGIUS ACE	08/2004	12/2018	Van	KDH2	KDH200	2KD-FTV \| 2.5L \| Diesel	D-4D	RWD
TOYOTA	REGIUSACE	08/2004	12/2020	Van	KDH206	-	1KD-FTV \| 3.0L \| Diesel	D-4D	AWD
