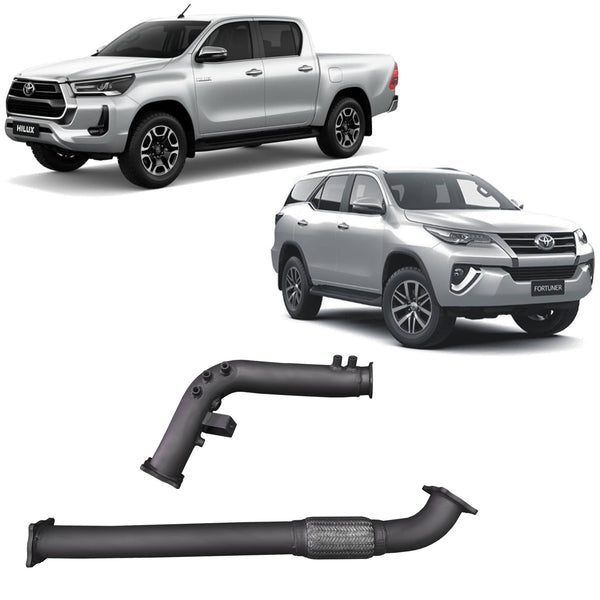

Redback Extreme Duty Exhaust DPF Adaptor Kit for Toyota Hilux / Fortuner (07/2015 - on)
SKU: THX443100-PA
$1,096.50
compatible-
files/THX48900-PM_4e5ed956-68c2-4726-8660-b430452d79dd.jpg
-
files/THX48900-PR_84fb9333-0ca5-4952-90c1-d4f7b5f4287b.jpg
-
files/THX48900-PO_2596c1da-cefb-4301-9e9a-7f4e4b51ce71.jpg
-
files/THX48900-PB.jpg
-
files/XR00172_e474bbd3-a101-4dfc-a7fd-ac4e33a37153.jpg
-
files/XM00072_80201b3f-c1c8-437d-b140-9367f988d8a7.jpg
-
files/XP00272_4ec5cf00-4f78-4754-a932-acfffe425b22.jpg
Product Specifications:
- 3" DPF Back Exhaust

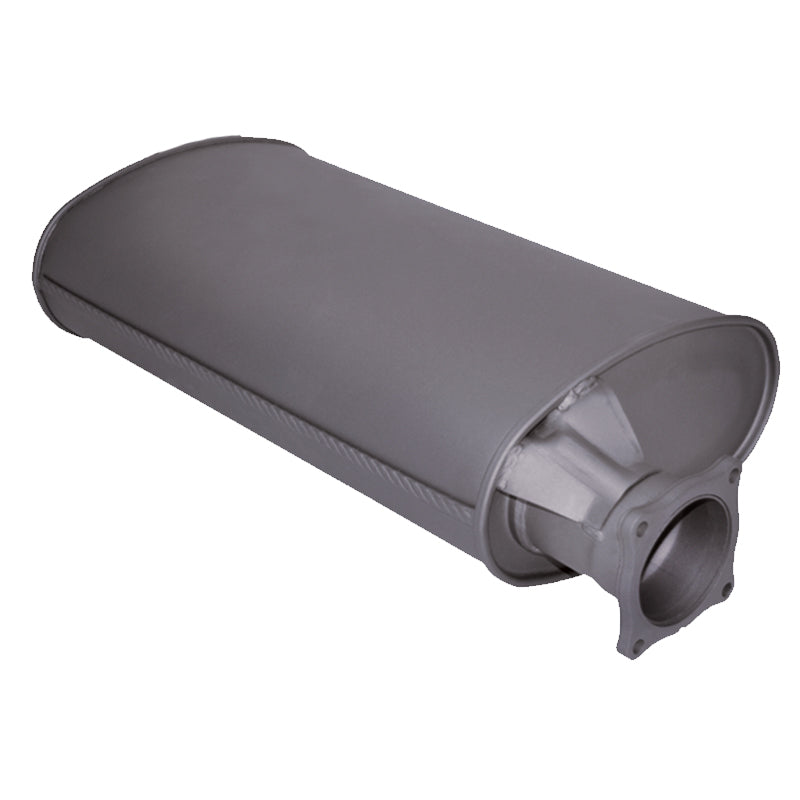

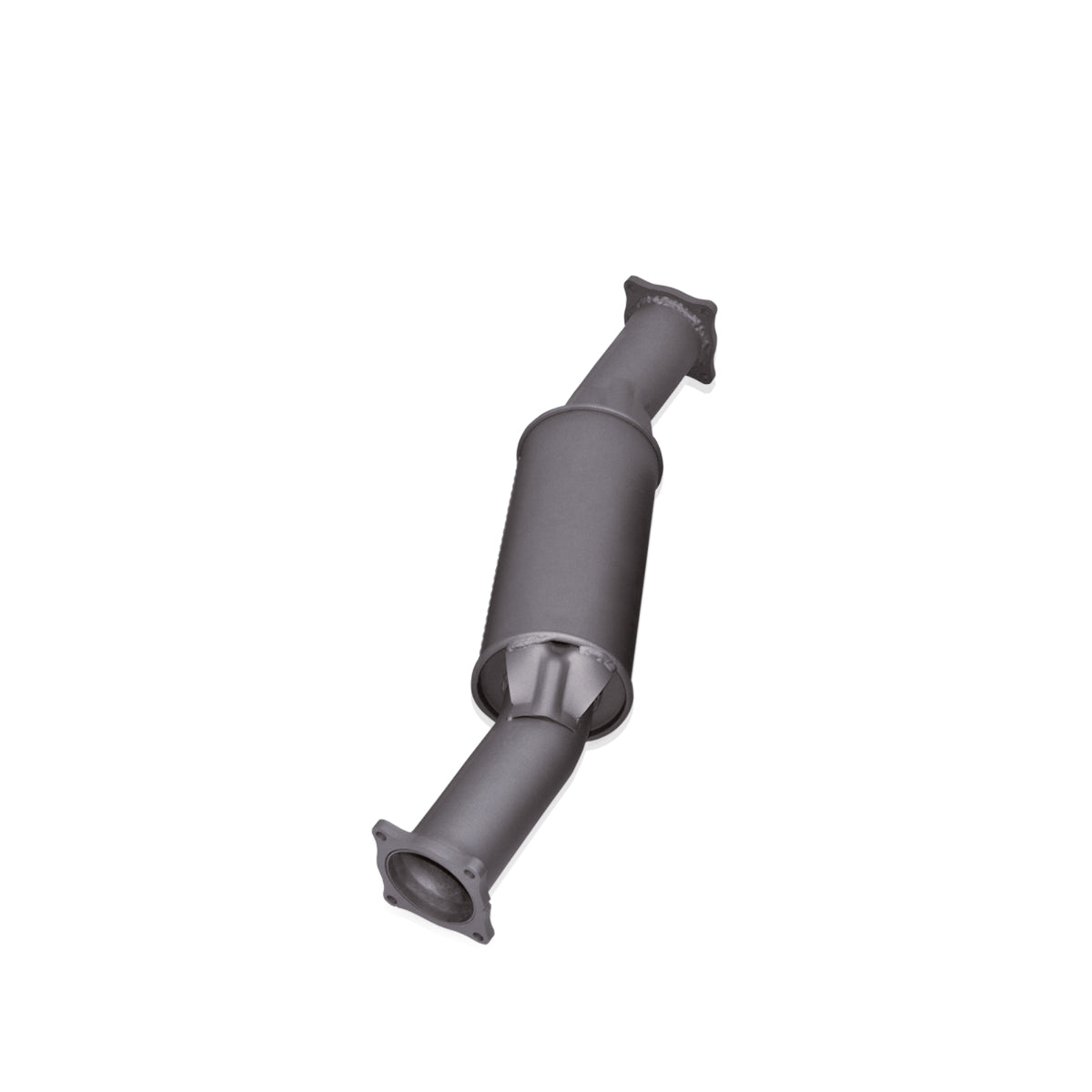

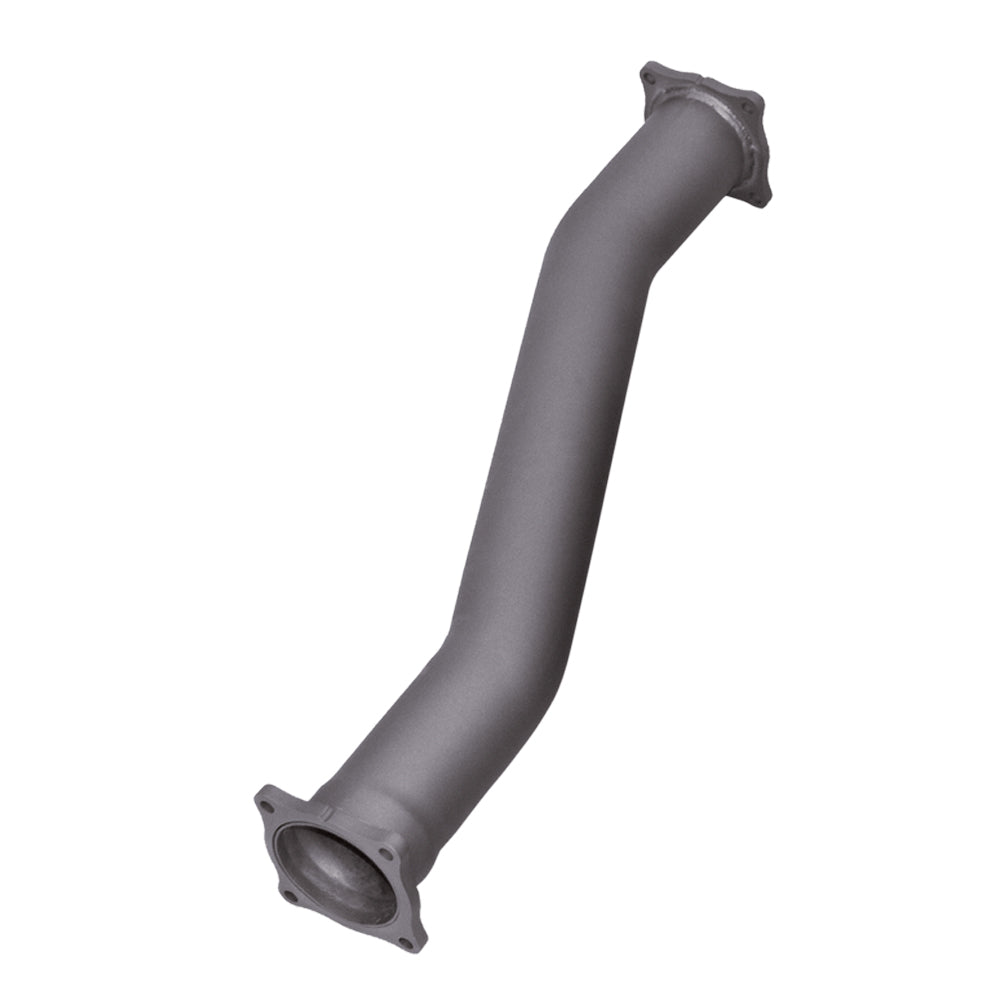

- Available Sound Options include 11"x6" Large Straight Through Muffler, 5" Round Straight Through Resonator or Muffler Delete (Pipe Only)
Features and Benefits:
- Australian Designed and Made
- 10-Year Warranty
- 409 Stainless Steel Tube
- 4 Bolt, 10mm Thick Flange Plates
- Extreme Duty Hanger Brackets
- Removable Plug Boss for EGT (1/4" NPT)
- Pressed Fire Ring Gaskets
- Coated with Premium Heat Proof Paint
Aftermarket Accessories: No known fitment issues
Approximate Fitting Time: 1 Hour
Approximate Fitting Time: 1 Hour

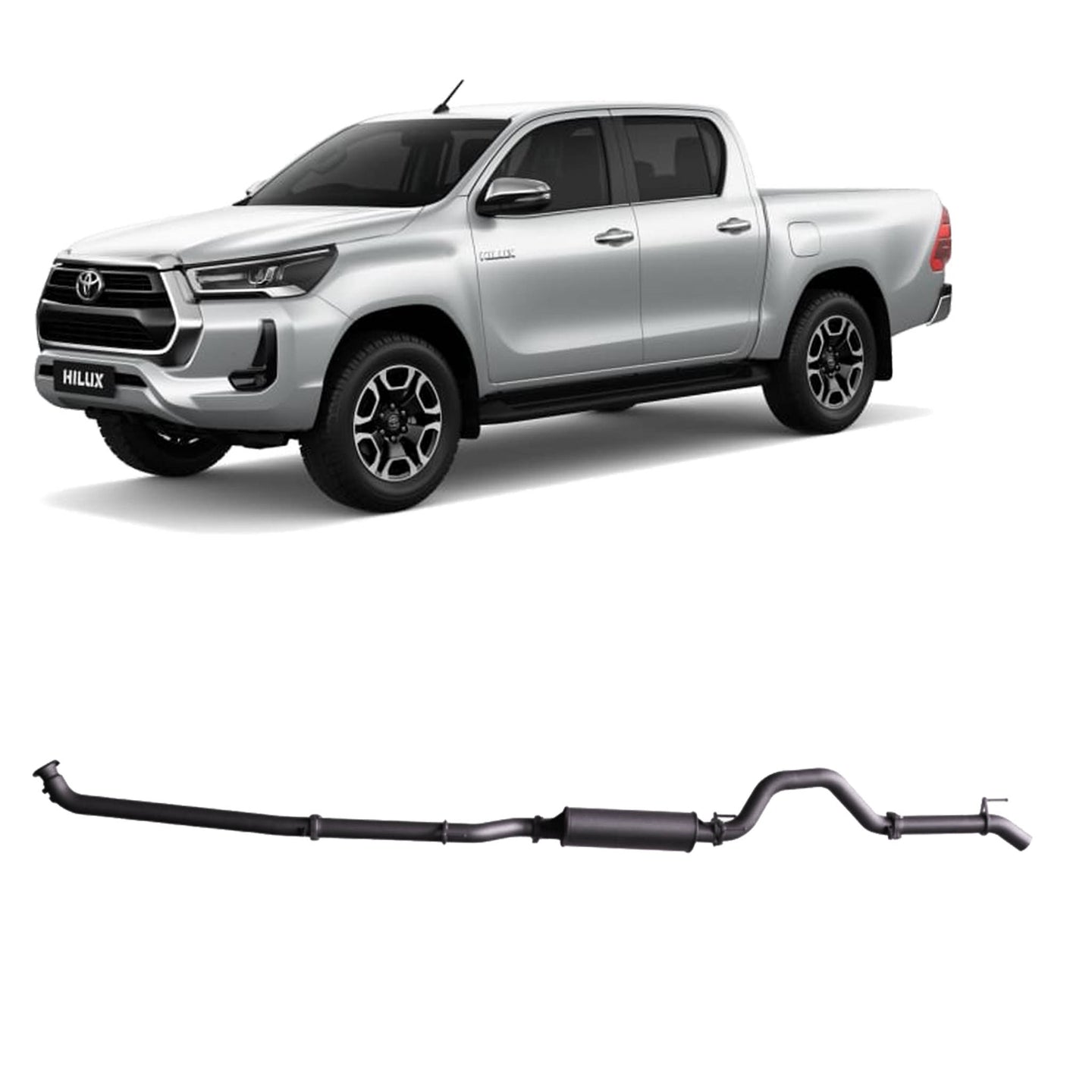

Redback Extreme Duty for Toyota Hilux 2.8L (01/2015 - on)
SKU
THX48900-PM
- Regular Price
- $1,327.00
Product Specifications:
- 3" DPF Back Exhaust
- Available Sound Options include 11"x6" Large Straight Through Muffler, 5" Round Straight Through Resonator or Muffler Delete (Pipe Only)
Features and Benefits:
- Australian Designed and Made
- 10-Year Warranty
- 409 Stainless Steel Tube
- 4 Bolt, 10mm Thick Flange Plates
- Extreme Duty Hanger Brackets
- Removable Plug Boss for EGT (1/4" NPT)
- Pressed Fire Ring Gaskets
- Coated with Premium Heat Proof Paint
Aftermarket Accessories: No known fitment issues
Approximate Fitting Time: 1 Hour
Approximate Fitting Time: 1 Hour
- Regular Price
- $1,327.00
You may also need
Assembly Components
Specifications
- Transmission Fits Both
- Coating Premium Heat-Proof Paint
- Aftermarket accessory fitted None
- Muffler option Large Muffler (Quiet)
- System layout DPF Back System
- Fitting time [min.] 60
- Material type 304 Stainless Steel
- Configuration Offset/Centre
Vehicle Applications
Toyota Hilux (10/2015 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| TOYOTA | HILUX | 05/2023 | - | Ute | GUN126 | 1GD-FTV | 2.8L | Diesel | GR Sport | - 4X4 |
| TOYOTA | HILUX | 04/2018 | - | Ute | GUN126 | 1GD-FTV | 2.8L | Diesel | Rogue| Rugged| Rugged X | 4WD |
| TOYOTA | HILUX | 10/2015 | - | Ute | GUN136R | 1GD-FTV | 2.8L | Diesel | SR5 Hi-Rider | RWD |
| TOYOTA | HILUX | 10/2015 | - | Ute | GUN136R | 1GD-FTV | 2.8L | Diesel | SR Hi-Rider | RWD |
Toyota Hilux (05/2020 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| TOYOTA | HILUX | 06/2020 | - | Ute | GUN126 | 1GD-FTV | 2.8L | Diesel | D-4D | AWD |
| TOYOTA | HILUX | 05/2020 | - | Ute | GUN136 | 1GD-FTV | 2.8L | Diesel | D-4D | RWD |
Toyota Hilux (07/2015 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| TOYOTA | HILUX | 10/2015 | - | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | SR | AWD |
| TOYOTA | HILUX | 10/2015 | - | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | SR5 | AWD |
| TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | ROGUE, RUGGED, RUGGED X, SR5, SR5+ | Automatic/Manual 4WD |
| TOYOTA | HILUX | 07/2015 | 04/2020 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | D-4D | AWD |
| TOYOTA | HILUX | 07/2015 | 09/2019 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | SR5 EXTRA CAB | Automatic 4WD |
