TAG 4x4 Recovery Towbar and Direct Fit Tag Wiring Harness for Suzuki Jimny (11/2018 - 12/2025)

SKU TXR817-K201
$1,335.69
$1,335.69
Product Attributes
  • Style 7 Pin Flat
  • Type Plugs & Sockets
  • Diagnostic coding No
  • Fitting time [min.] 40 (UNT367)
  • Fitting time [min.] 45 (TXR817)
  • Reverse sensor cut-off Via Dash
  • Wiring type Direct Fit
  • Includes trailer plug No
  • Brake controller prep Yes
  • Ball weight [kg] 75
  • Towbar class Heavy Duty (4x4 Recovery)
  • Towbar capacity [kg] 1300
  • Recovery load-tested 2000kg WLL
  • Recovery points 2
  • Tow ball mount L4180TXR
  • Coating Textured Powder Coated
  • Bumper removed during fitment Yes
  • Bumper cut out required Yes
  • Exposure Partially concealed
  • Hitch type 50mm Square Hitch Receiver
Assembly Components

Fits 3 and 5 Door models

This Kit Includes:

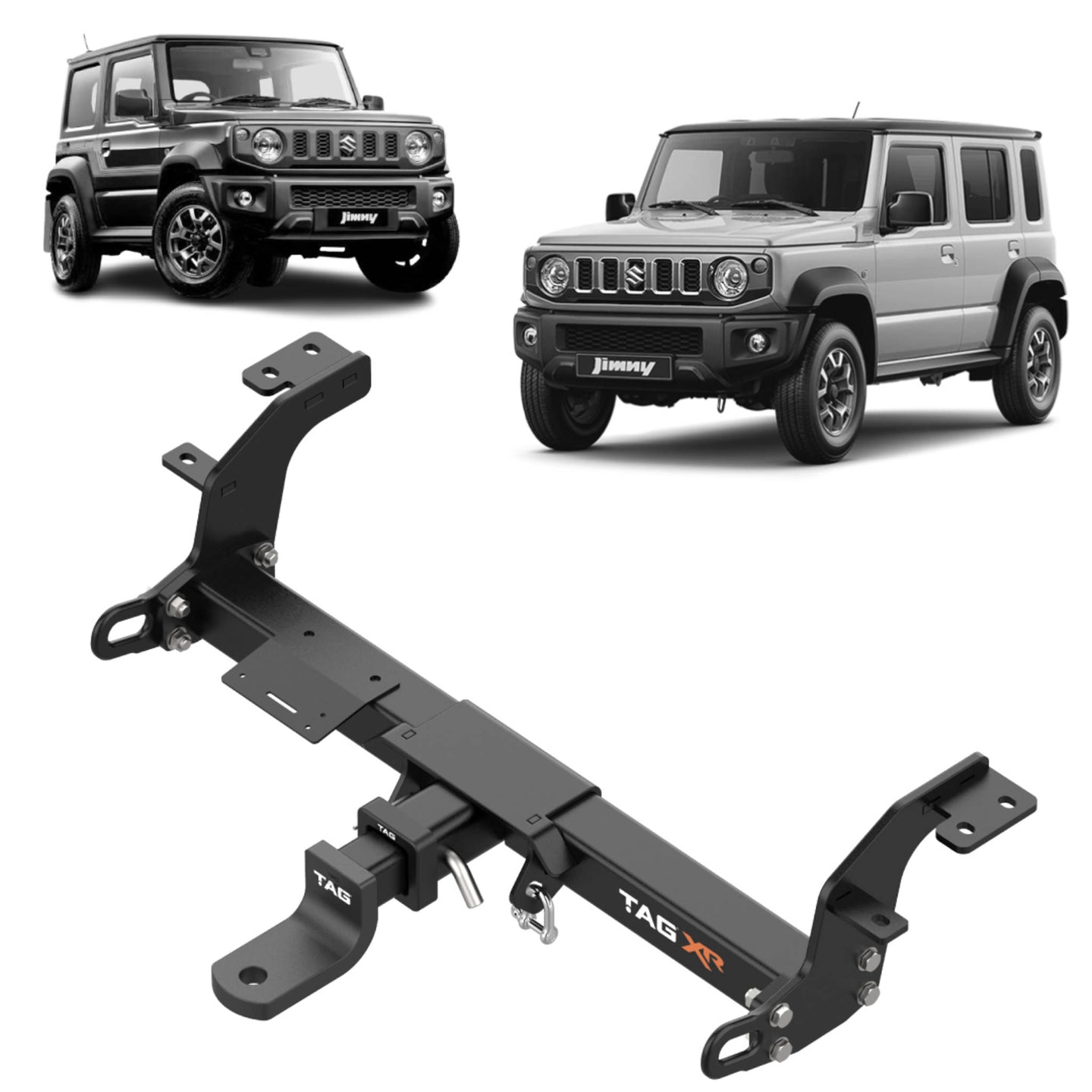

  • TAG 4x4 Recovery Towbar

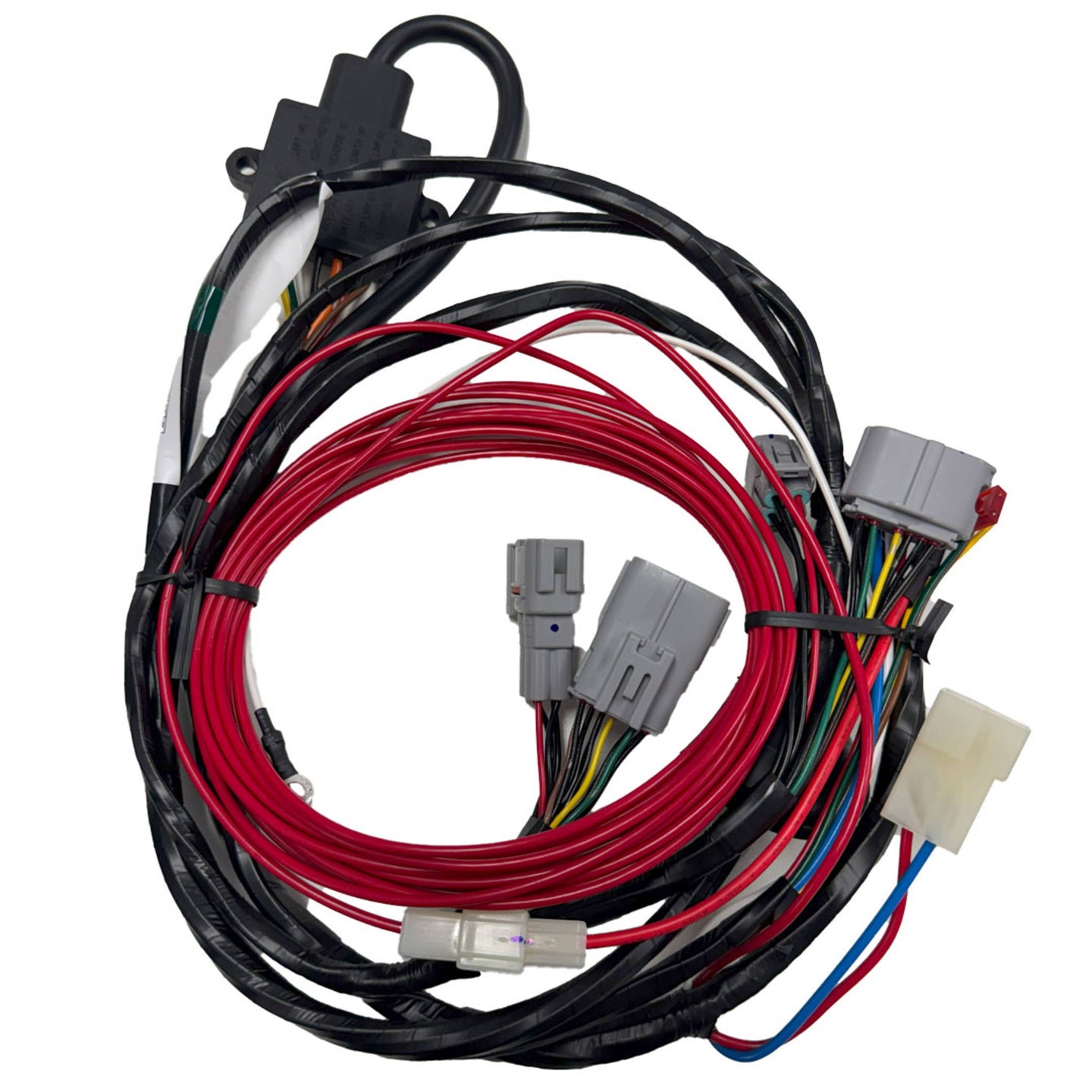

  • TAG Direct Fit Wiring Harness

  • 7 Pin Flat Socket

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

  • 65mm x 65mm Extreme Duty Reinforced Crossbar

  • Two WLL 2000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

  • Flush body-mounted profile for maximum offroad clearance for improved departure angles.

  • Highly durable, textured Extreme Duty Powder Coated Finish

  • Top-mounted Trailer & Anderson Plug Mount

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Includes Zinc Tow Ball & ballmount rated at 1300kg towing capacity / 75kg ball weight, Pin & Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Vehicle Applications

Suzuki Jimny (11/2018 - 12/2025)

Make Model From To Body Series Engine Variant Drivetrain
SUZUKI JIMNY 11/2018 12/2025 SUV JC74W K15B | 1.5L | Petrol XL (5 Door) Automatic/Manual AWD
SUZUKI JIMNY 11/2018 12/2025 Wagon A6G (JC74W) K15B | 1.5L | Petrol XL AWD
SUZUKI JIMNY 11/2018 12/2025 Wagon JB64 R06A-T | 0.7L | Petrol - AWD

Suzuki Jimny (11/2018 - 12/2025)

Make Model From To Body Series Engine Variant Drivetrain
SUZUKI JIMNY 11/2018 12/2025 SUV GJ K15B | 1.5L | Petrol LITE Automatic/Manual 4WD
SUZUKI JIMNY 11/2018 12/2025 Wagon GJ K15B | 1.5L | Petrol - AWD
SUZUKI JIMNY 11/2018 12/2025 SUV A6G (A6G415, JB74W) K15B | 1.5L | Petrol - AWD
