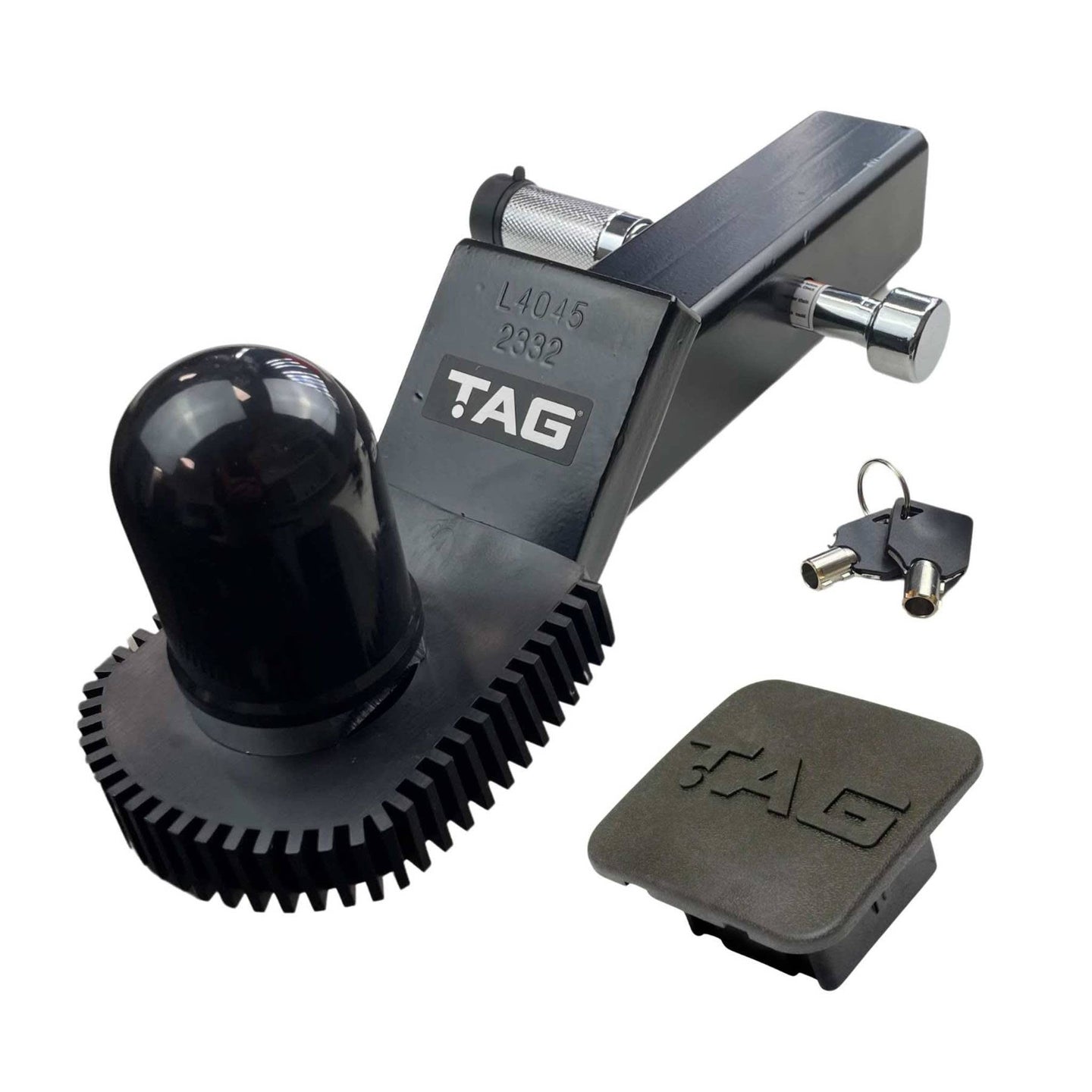

TAG Ball Mount Hitch Kit (Lug + Locking Pin + Tow Ball + Ball Cover + Hitch Cover + Shin Protector)

SKU TOWLUG01
$149.99
$149.99
Assembly Components

Whether you are starting your towing setup or need to replace your existing one, this is a complete ball mount solution with everything you need to protect your towing set-up from premature wear, rust or theft.

This Kit Includes:

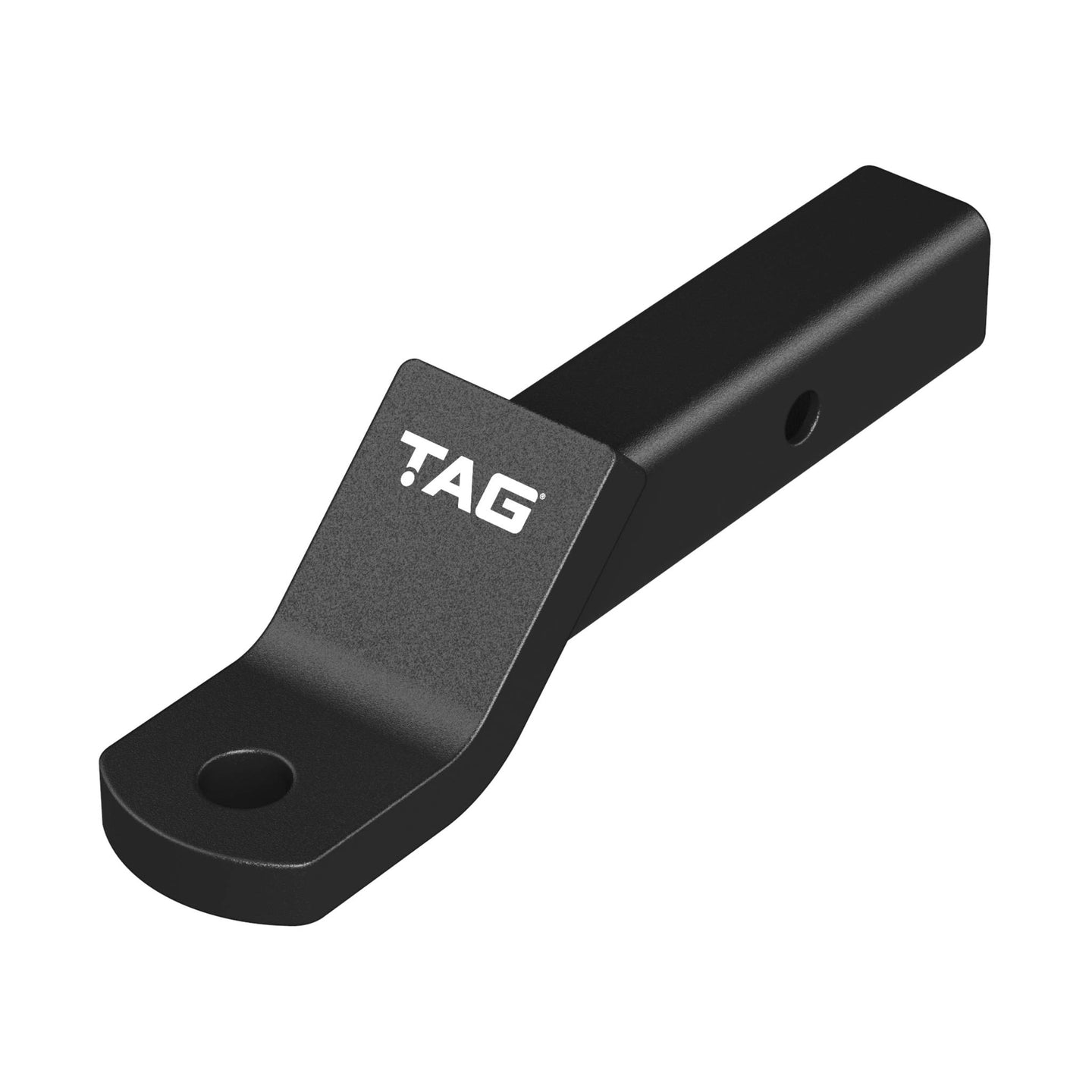

  • TAG Tow Ball Mount - 208mm Long, 135° Face, 50mm Square Hitch

    • 208mm Long (Hitch Pin Hole to Tow Ball Hole)

    • 135° Tongue Face

    • Drop: 18mm

    • Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball

    • 3500kg Gross Trailer Weight

    • 350kg Ball Weight

    • Durable Powder-Coated Finish

    • ADR 62/02 Compliant

    • TAG Limited Lifetime Warranty

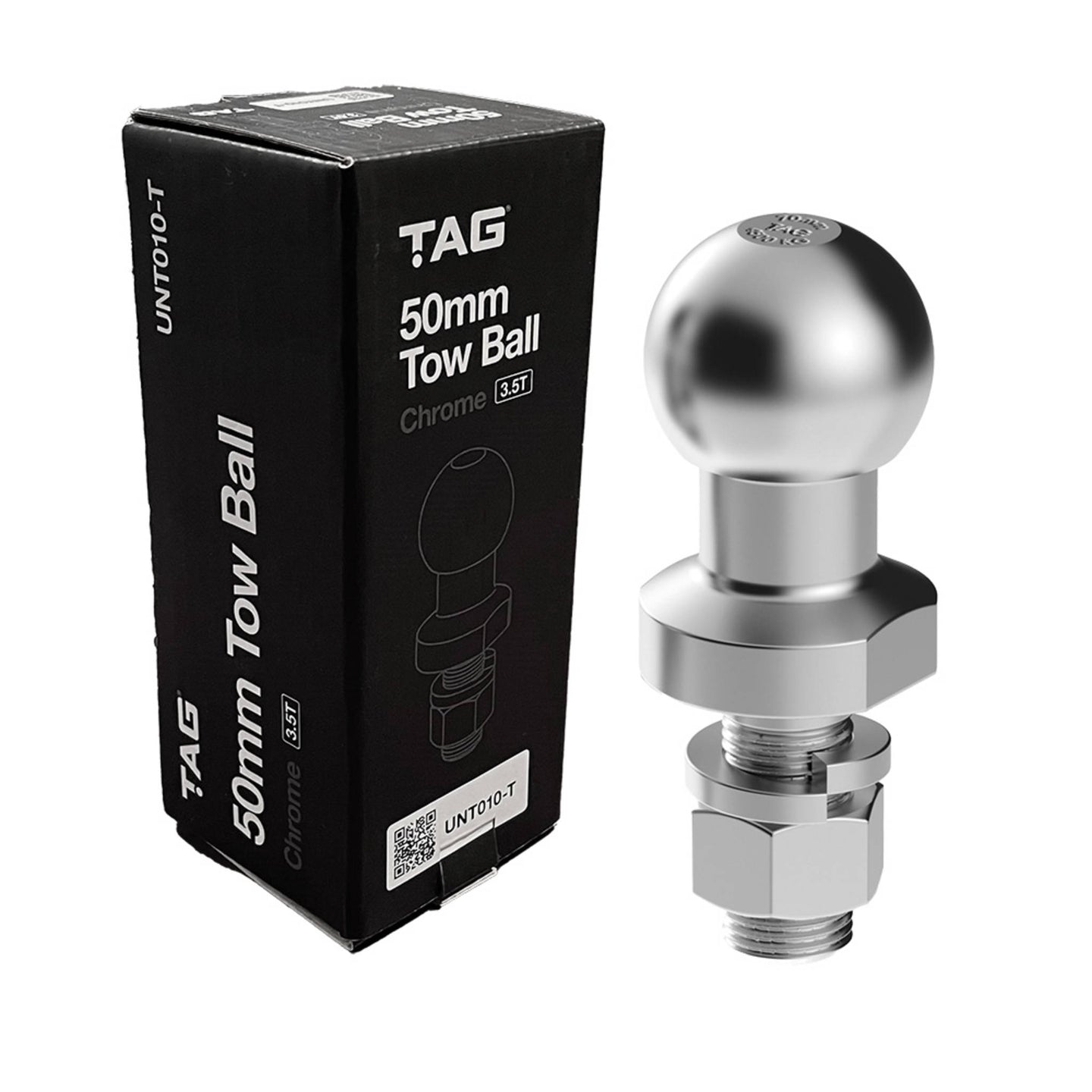

  • TAG Chrome Tow Ball - 50mm, 3.5 tonne

    • 50mm Thread

    • Chrome

    • Load rate 3500kg

    • 62mm shank

    • This tow ball conforms to the requirements of AS4177.2-2004 Appendix A Static Test.

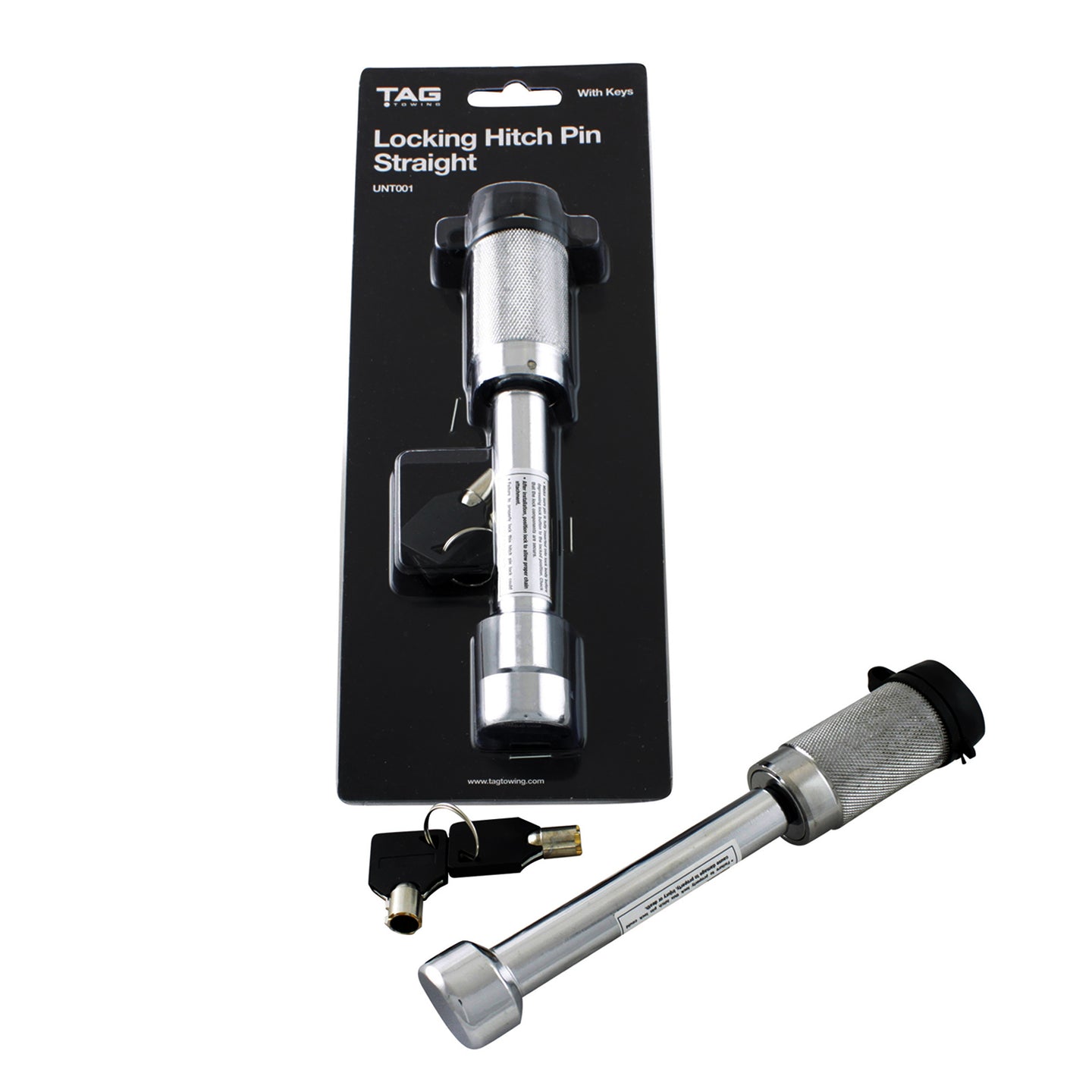

  • TAG Locking Hitch Pin - Straight

    • For Class 4 hitch ball mount

    • Round shape lock up.

    • 1 x set of Keys (2) included

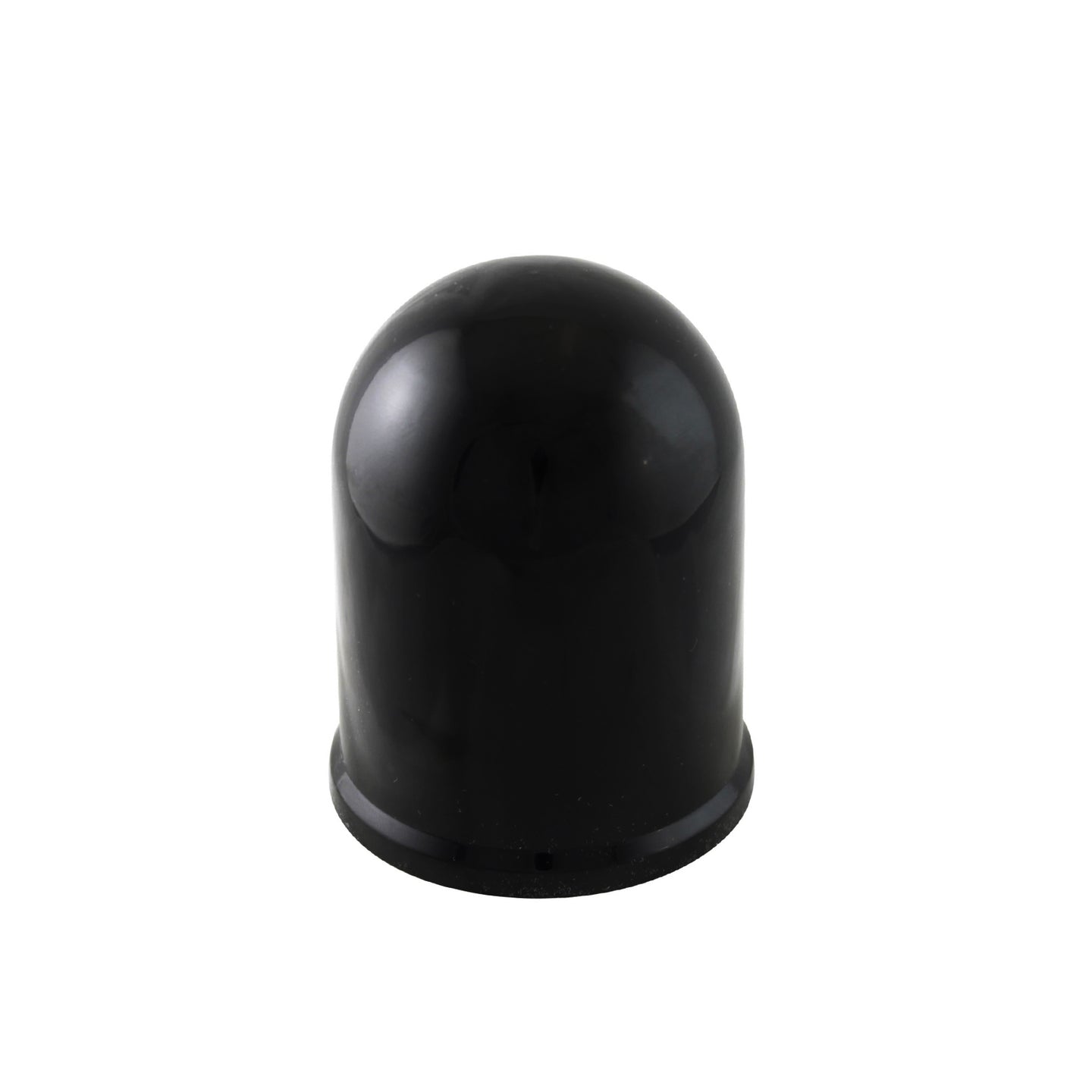

  • TAG 50mm Tow Ball Cover

    • 50mm Tow Ball Cover, black with spring clip

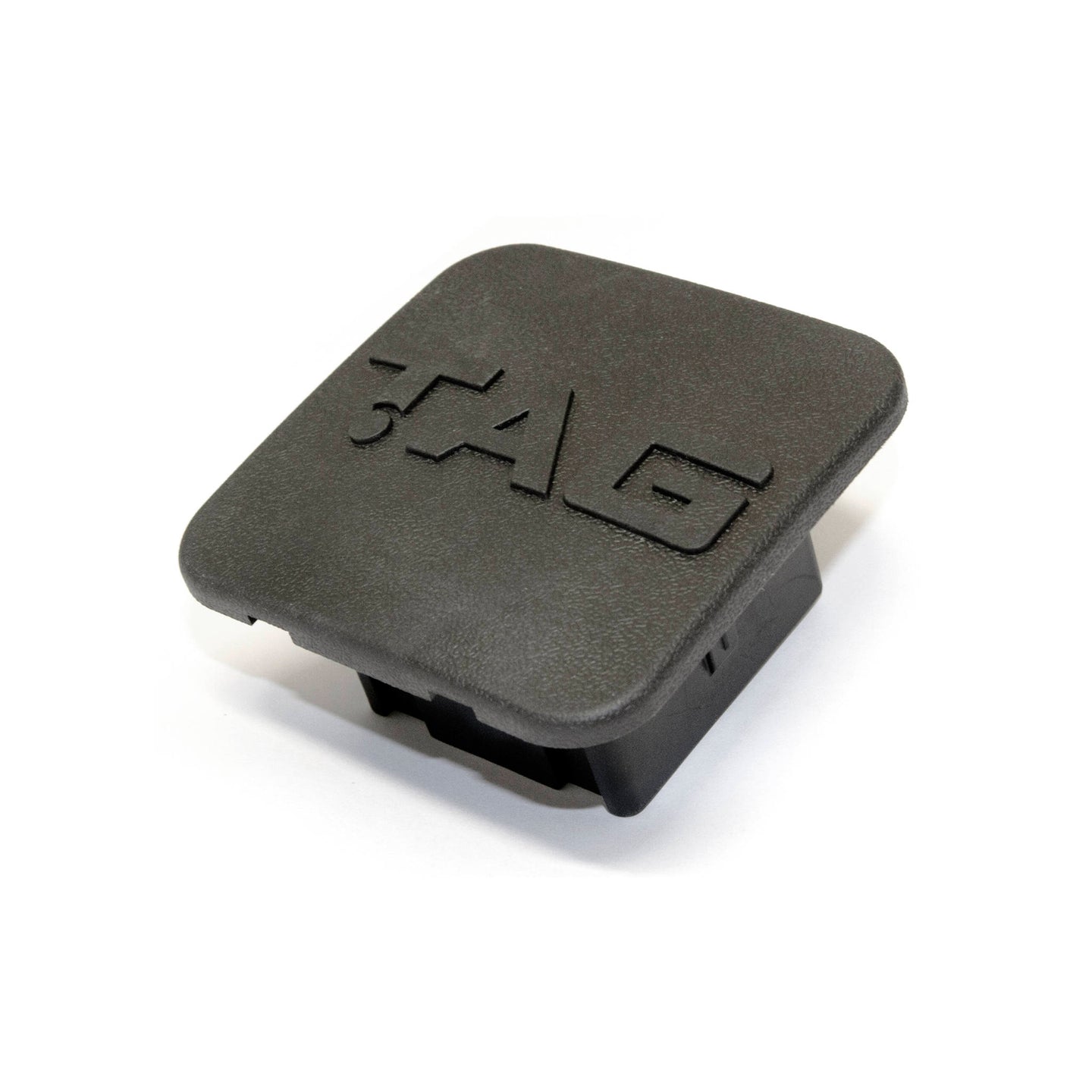

  • TAG Tow Hitch Cover

    • Keep your tow hitch clean and safe from damage and ingress while not in use. The TAG snug-fitting tow hitch cover suits all 50mm x 50mm square hitch receivers.

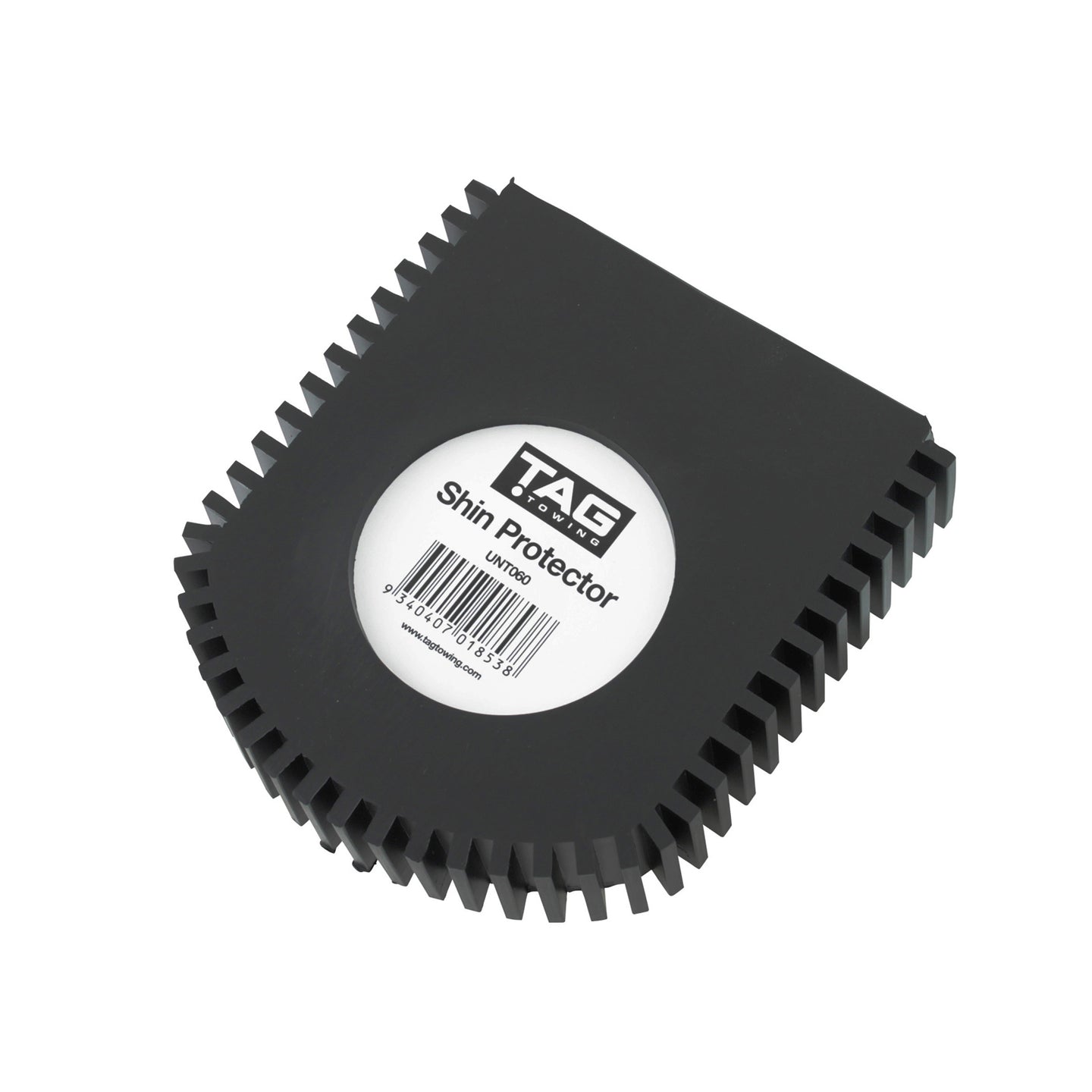

  • TAG Shin Protector

    • Save your shins and knees from taking a whack, by putting a TAG Shin Protector around your tow ball.

Specifications

  • Material type Plastic (UNTTHC)
  • Material type Rubber (UNT060)
  • Type Security & Protection (UNT060)
  • Type Towballs / Covers / Spanner (UNT010)
  • Diameter 50mm
  • Capacity 3500kg/350kg
  • Coating Chrome Plated (UNT010)
  • Coating Powder Coated (L4045)
  • Hitch type Heavy Duty 50mm Square
  • Tow ball mount class Heavy Duty (Class 4)
  • Gross trailer weight 3500
  • Ball weight [kg] 350
  • Drop 18mm
  • Rise Can be used in Drop or Rise mode
  • Length (pin to ball) 208mm
  • Front to pin (mm) 250
  • Back to pin (mm) 90
  • Tongue face 135°
  • Length 338
