TAG Extreme Recovery Towbar and Direct Fit Wiring for Next-Gen Ford Ranger (01/2025 - On) - Cab Chassis Models

files/TXR836_3092a58a-e37c-4b3b-841b-b253cdf3b95f.jpg
files/750173EJ_750173EJ_1ea1c688-c8c6-4296-be3e-5190b8d991be.jpg

TAG Extreme Recovery Towbar and Direct Fit Wiring for Next-Gen Ford Ranger (01/2025 - On) - Cab Chassis Models

SKU TXR836-K103

RRP: $2,034.00

Quantity

RRP: $2,034.00

Assembly Components

TAG 4x4 Recovery Towbar for Next-Gen Ford Ranger (Cab Chassis 06/2022 - on), Volkswagen Amarok (Cab Chassis 12/2022 - on)

TXR836

$1,459.00

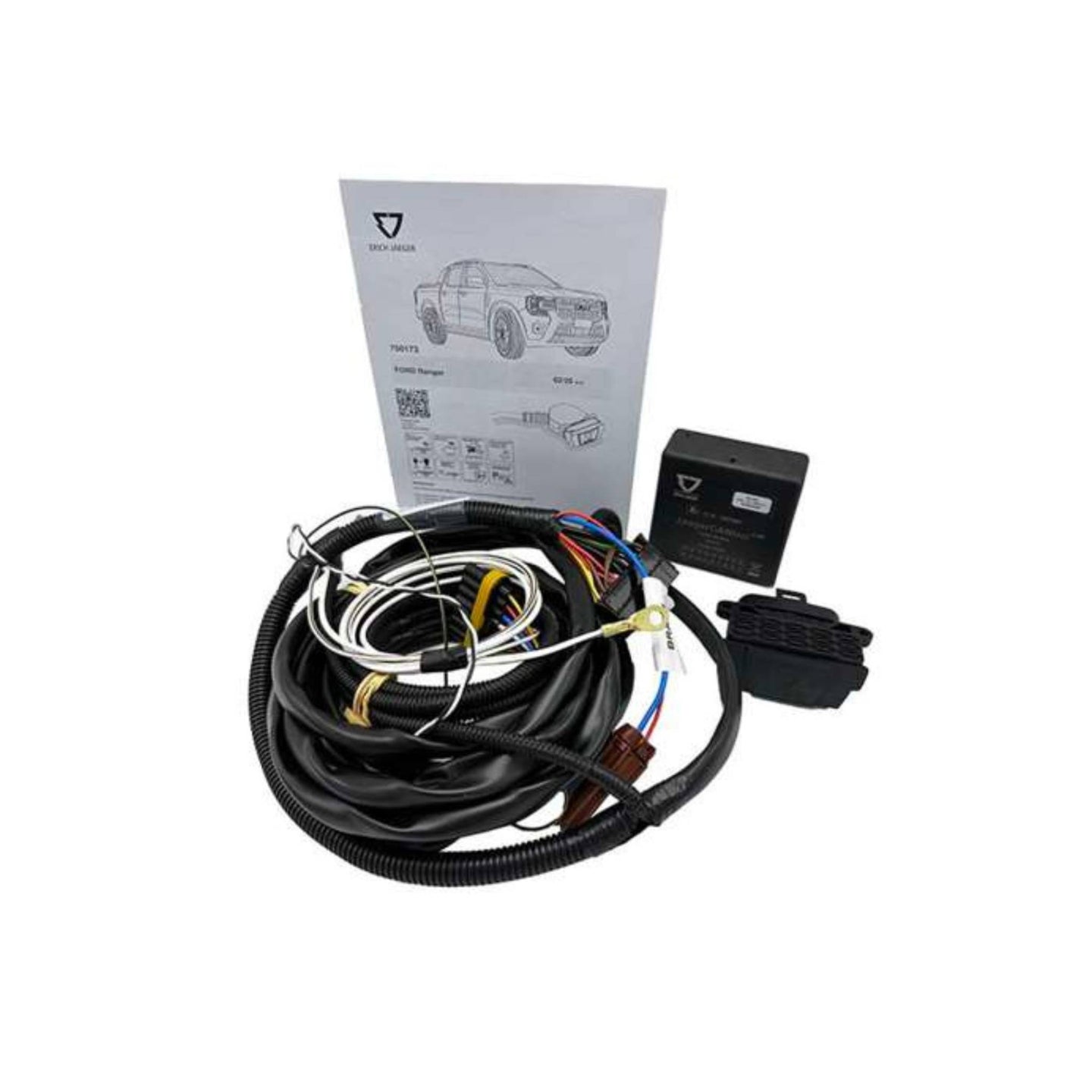

Erich Jaeger Direct Fit CANbus wiring Harness for Ford Ranger Next Gen (01/2025 - On)

750173EJ

$575.00

Product Description

Fits cab chassis models with no rear bumper step. Tag Extreme Recovery towbar kit including Erich Jaeger CAN-Bus Wiring harness with 7-pin trailer plug.

Kit Includes:

TXR836 4x4 Recovery Towbar
750173EJ CAN-Bus Wiring Harness and 7 Pin Flat Plug

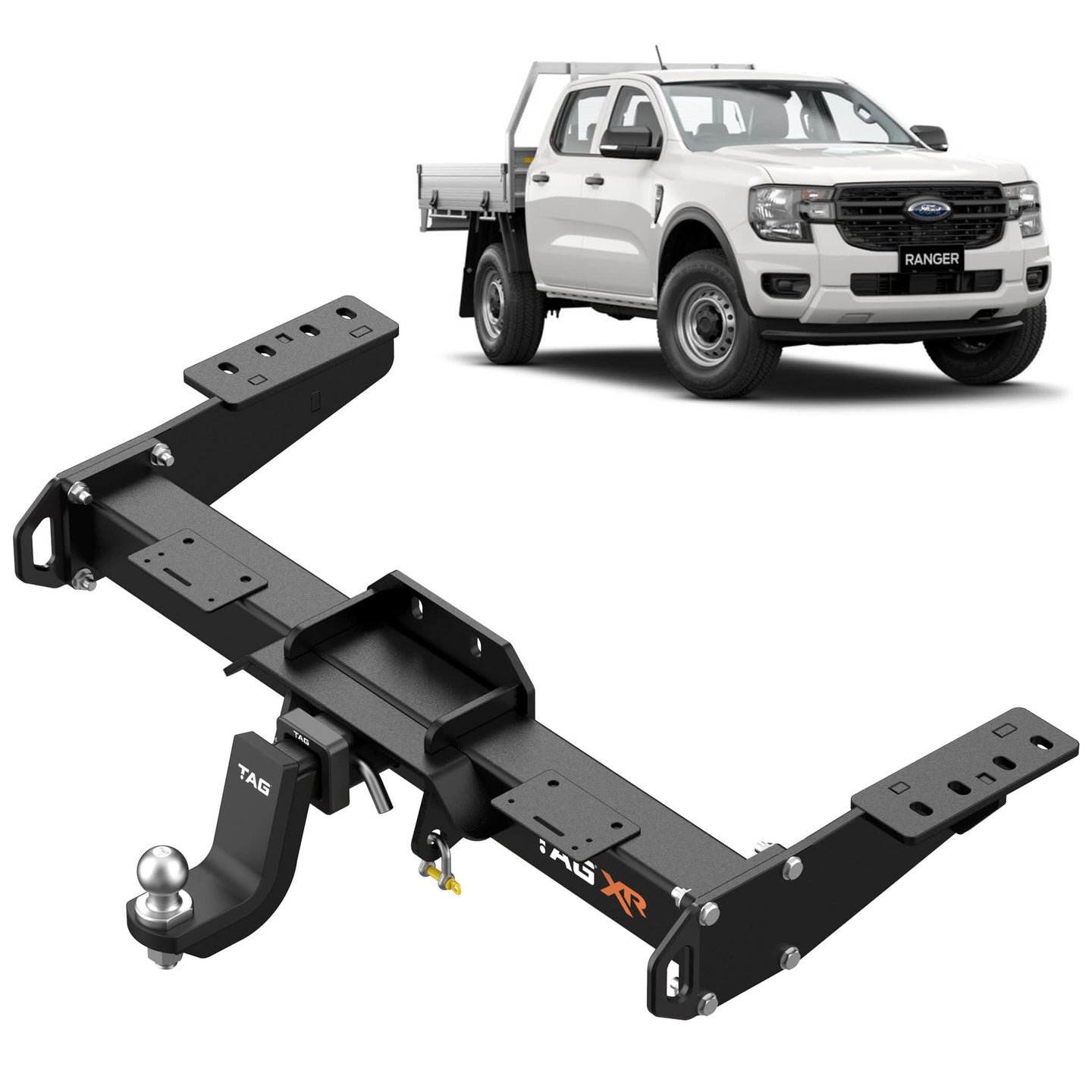

Tag Extreme Recovery Towbar

89mm x 89mm Extreme Duty Reinforced Crossbar
Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Highly durable, textured Extreme Duty Powder Coated Finish
Dual top-mounted Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles.

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Diagnostic coding Optional
Fitting time [min.] 90 (750173EJ)
Fitting time [min.] 60 (TXR836)
Reverse sensor cut-off Automatic If Coded
Wiring type Direct Fit
Includes trailer plug Yes
Brake controller prep Yes
Can bus support yes
Towbar class Heavy Duty (4x4 Recovery)
Towbar capacity [kg] 3500
Recovery load-tested 4500kg WLL
Recovery points 2
Tow ball mount L4171TXR
Coating Textured Powder Coated
Bumper removed during fitment No
Bumper cut out required No
Exposure Exposed
Hitch type 50mm Square Hitch Receiver
Ball weight [kg] 350

Vehicle Applications

Vehicle Applications

Ford Ranger (01/2025 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
FORD	RANGER	01/2025	-	Cab Chassis	PY	YN2S \| 2.0L \| Diesel	Bi-Turbo	- AWD
FORD	RANGER	01/2025	-	Cab Chassis	PY	YN2S \| 2.0L \| Diesel	Bi-Turbo	- RWD
FORD	RANGER	01/2025	-	Cab Chassis	PY	P02S \| 2.0L \| Diesel	Turbo	- AWD
FORD	RANGER	01/2025	-	Cab Chassis	PY	BF2S \| 3.0L \| Diesel	Turbo	- AWD
FORD	RANGER	01/2025	-	Cab Chassis	PY	BF2S \| 3.0L \| Diesel	Turbo	- AWD
FORD	RANGER	01/2025	-	Cab Chassis	PY	P02S \| 2.0L \| Diesel	Turbo	- RWD
