TAG Extreme Recovery Towbar and Direct Fit Wiring for Next-Gen Ford Ranger (06/2022 - 12/2024), Volkswagen Amarok (12/2022 - on) - Cab Chassis Models

SKU TXR836-K101

RRP: $1,726.98

Quantity

RRP: $1,726.98

Assembly Components

TAG 4x4 Recovery Towbar for Next-Gen Ford Ranger (Cab Chassis 06/2022 - on), Volkswagen Amarok (Cab Chassis 12/2022 - on)

TXR836

$1,459.00

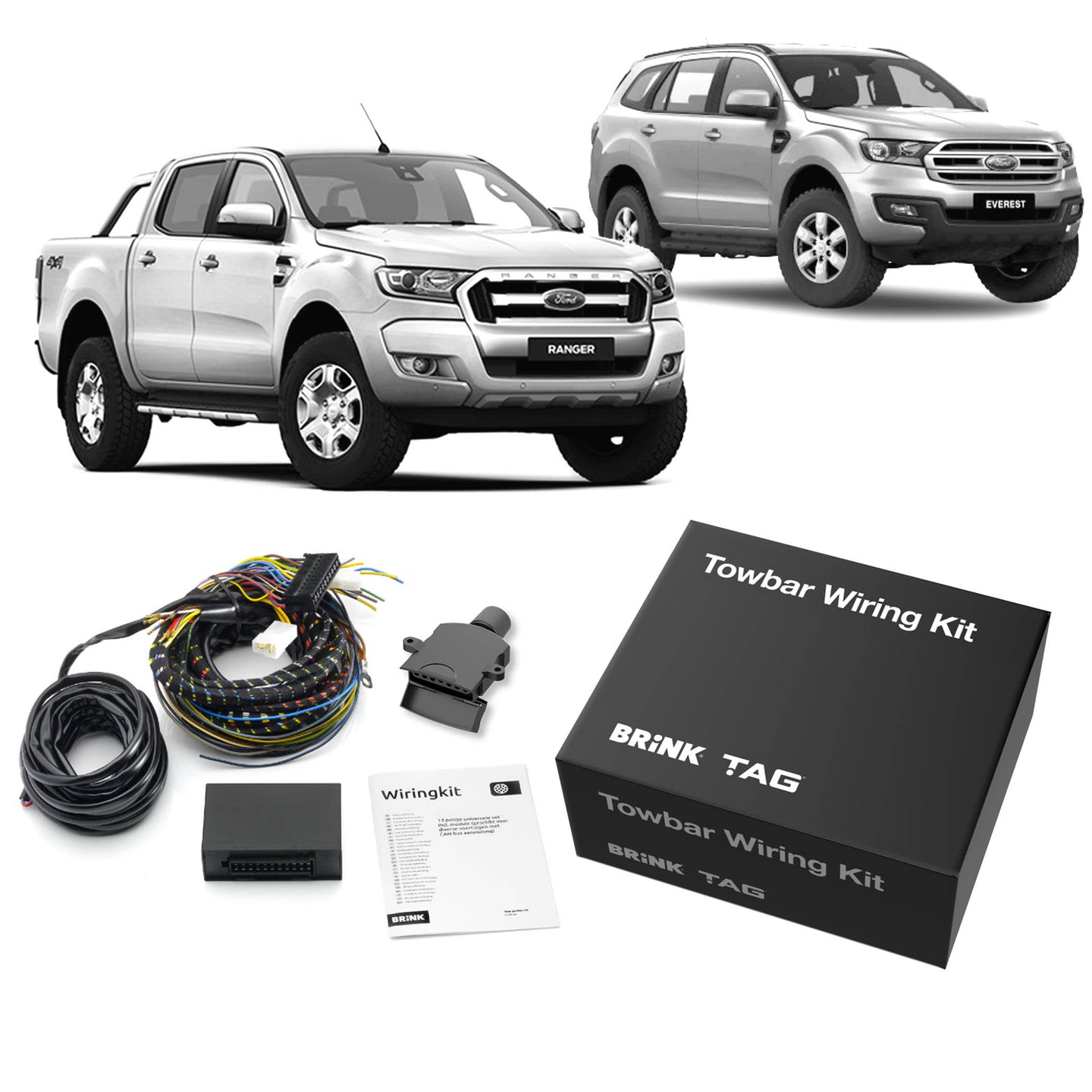

TAG Direct Fit Wiring Harness for Ford Ranger PX2 PX3 (06/2015 - 05/2022), Ranger Next Gen (06/2022 - 11/2024), Ford Everest UA/UA MkII (07/2015 - 05/2022), Volkswagen Amarok NF (12/2022- on)

BR-712365

$238.99

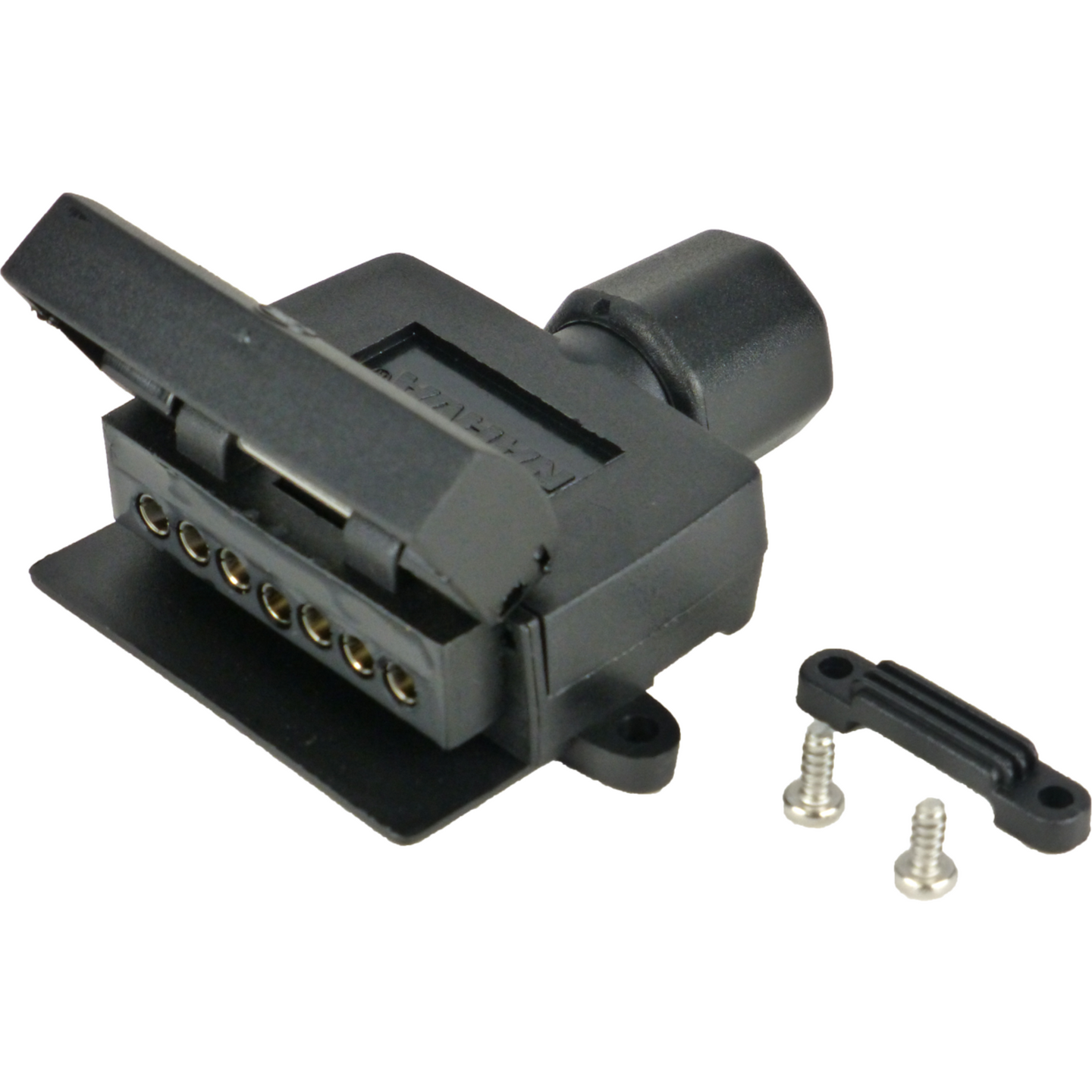

TAG 7 Pin Flat Socket with Reed Switch (Closed Circuits)

UNT032RS

$25.00

Product Description

Fits cab chassis models with no rear bumper step. Tag Extreme Recovery towbar kit including Erich Jaeger CAN-Bus Wiring harness with 7-pin trailer plug.

Kit Includes:

TXR836 4x4 Recovery Towbar
750150EJ CAN-Bus Wiring Harness and 7 Pin Flat Plug

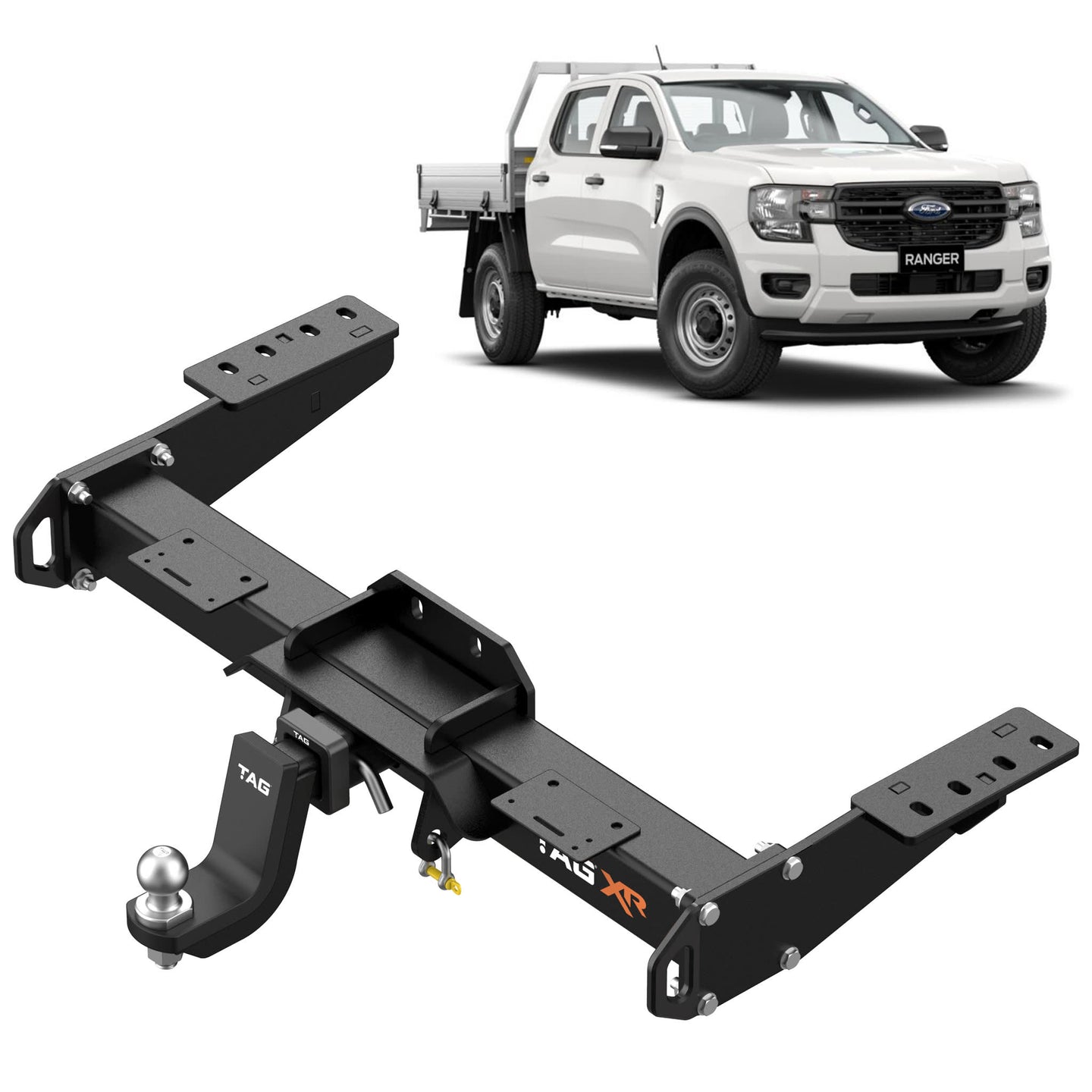

Tag Extreme Recovery Towbar

89mm x 89mm Extreme Duty Reinforced Crossbar
Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Highly durable, textured Extreme Duty Powder Coated Finish
Dual top-mounted Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles.

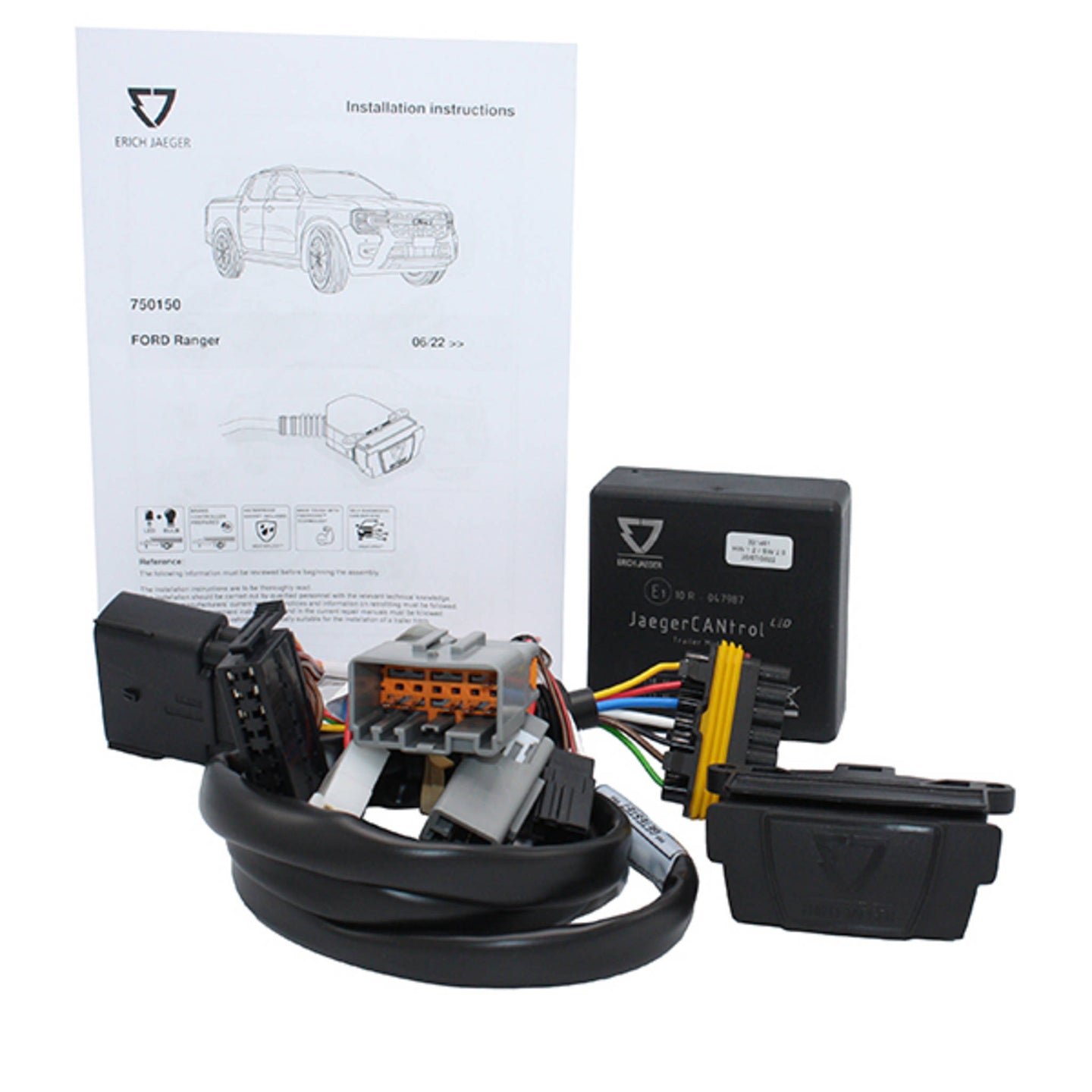

Erich Jaeger Towbar Wiring

7 Pin Flat

CAN-Bus Wiring
FORD RANGER (05/22-) T6.2 / P703 Series
Includes 7-pin flat plug

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Style 7 Pin Flat
Type Plugs & Sockets
Fitting time [min.] 60
Wiring option CANBUS Direct Fit Wiring
Diagnostic coding Optional For All Features
Reverse sensor cut off Coding required
Fog cut off Automatic
Plug connection 7 Pin Flat Socket
Towbar class Heavy Duty (4x4 Recovery)
Towbar capacity [kg] 3500
Recovery load-tested 4500kg WLL
Recovery points 2
Tow ball mount L4171TXR
Coating Textured Powder Coated
Bumper removed during fitment No
Bumper cut out required No
Exposure Exposed
Hitch type 50mm Square Hitch Receiver
Ball weight [kg] 350

Vehicle Applications

Volkswagen Amarok (12/2022 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
VOLKSWAGEN	AMAROK	12/2022	-	Cab Chassis	NF	DXKB \| 2.0L \| Diesel	TDI405 CORE 4MOTION	Automatic/Manual AWD
VOLKSWAGEN	AMAROK	12/2022	-	Cab Chassis	NF	DXKA \| 2.0L \| Diesel	TDI500 4MOTION	Automatic AWD
VOLKSWAGEN	AMAROK	12/2022	-	Cab Chassis	NF	DXWA \| 3.0L \| Diesel	TDI600 4MOTION	Automatic AWD
VOLKSWAGEN	AMAROK	12/2022	-	Cab Chassis	NF	DXVA \| 2.2L \| Petrol	TSI452 AVENTURA 4MOTION	Automatic AWD

Ford Ranger (06/2022 - 12/2024)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	P025 \| 2.0L \| Diesel	XL HI- RIDER	Automatic RWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	P025 \| 2.0L \| Diesel	XL HI- RIDER SUPER CAB	Automatic RWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	YN2S \| 2.0L \| Diesel	Bi-Turbo	- AWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	YN2S \| 2.0L \| Diesel	Bi-Turbo	- RWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	P02S \| 2.0L \| Diesel	Turbo	- AWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	BF2S \| 3.0L \| Diesel	Turbo	- AWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	BF2S \| 3.0L \| Diesel	Turbo	- AWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	P02S \| 2.0L \| Diesel	Turbo	- RWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	2.0L \| Diesel	XL	Automatic 4WD
FORD	RANGER	06/2022	12/2024	Cab Chassis	T6.2	2.0L \| Diesel	XL	Automatic 4WD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	2.0 \| 2.0L \| Diesel	XL	Automatic 4WD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	2.0L \| Diesel	XL HI-RIDER	Automatic RWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	2.0L \| Diesel	XL HI-RIDER	Automatic RWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	P02S \| 2.0L \| Diesel	XL HI- RIDER SUPER CAB	Automatic RWD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	YN2S \| 2.0L \| Diesel	XL SUPER CAB	Automatic 4WD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	YN2S \| 2.0L \| Diesel	XL SUPER CAB	Automatic 4WD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	3.0L \| Diesel	XLT, SPORT, WILDTRAK	Automatic 4WD
FORD	RANGER	06/2022	12/2024	Cab Chassis	PY	3.0L \| Diesel	XLT, SPORT, WILDTRAK	Automatic 4WD
