TAG Extreme Recovery Towbar And Direct Fit Wiring Kit For Toyota Landcruiser 78 Series Troopy (08/1991 - on)

SKU TXR862-K201

RRP: $1,232.68

Quantity

RRP: $1,232.68

Assembly Components

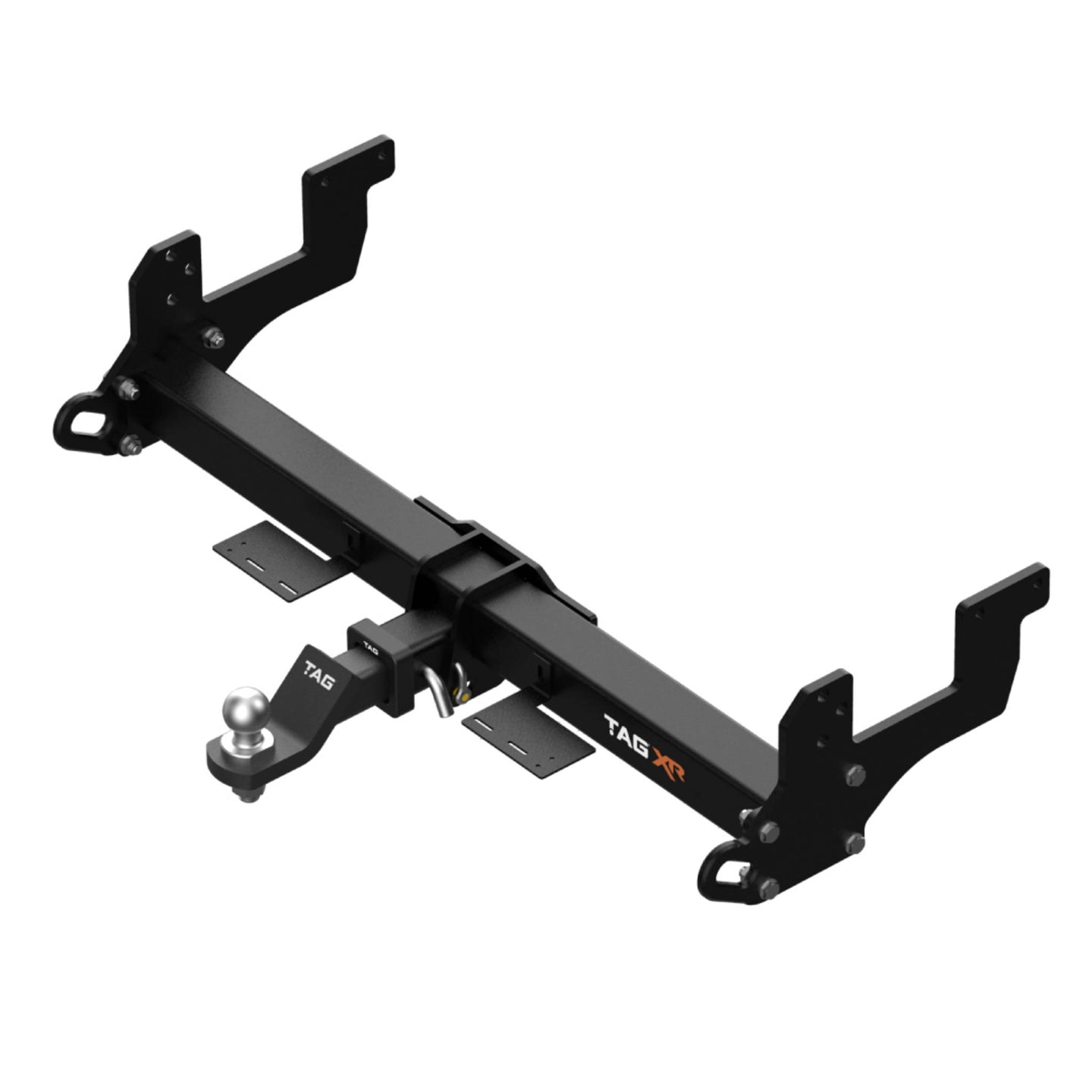

TAG 4x4 Recovery Towbar for Toyota Landcruiser 78 Series Troopy (08/1991 - on)

TXR862

$1,165.00

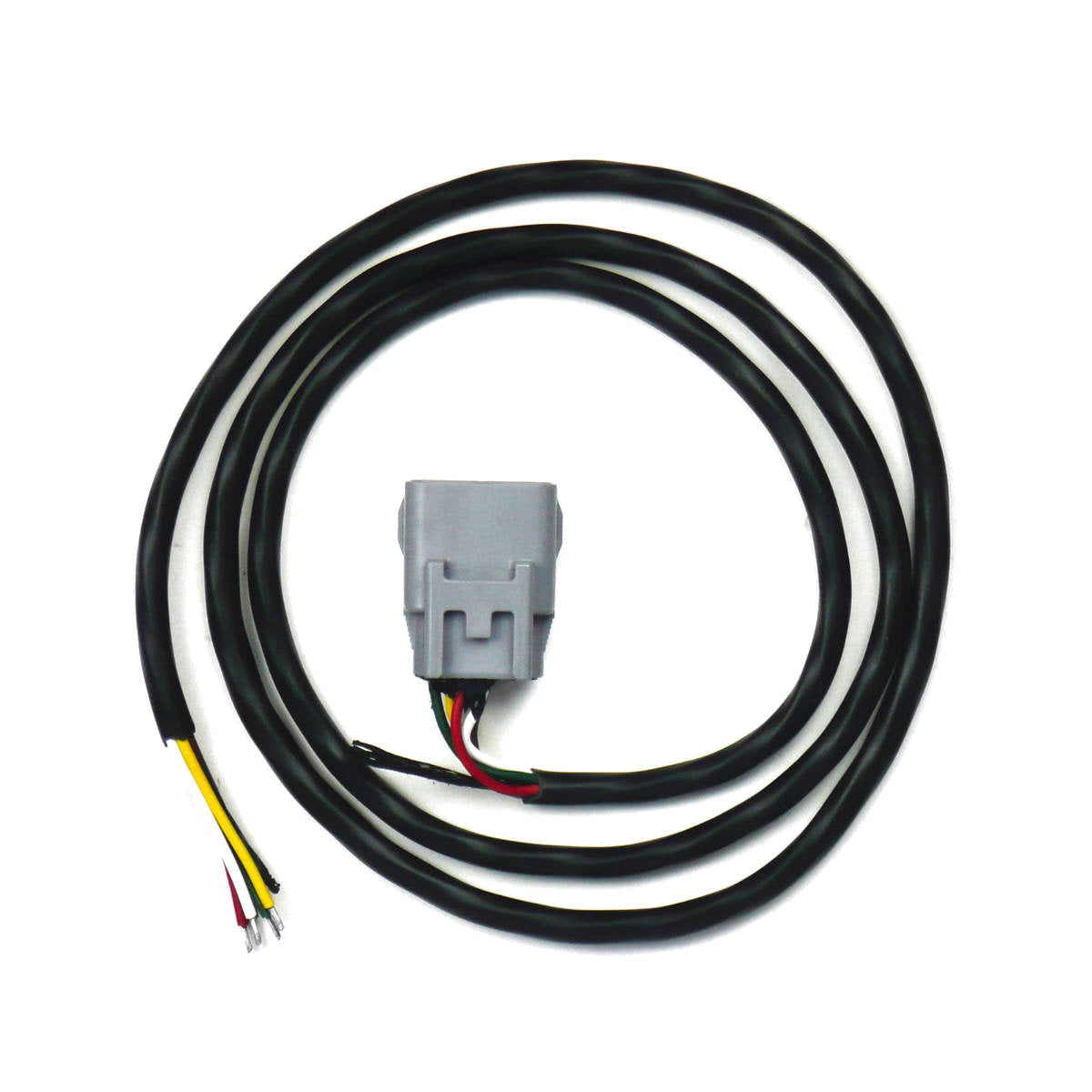

TAG Direct Fit Wiring Harness for Toyota Landcruiser 70 Series Models (11/1984 - on)

UNT272

$54.99

Product Description

This Kit Includes:

Extreme Recovery Towbar
Direct Fit Wiring Harness
7 Pin Flat Socket (Vehicles Side)

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

Extreme Duty Reinforced Crossbar
Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Textured Powder Coated Finish
Dual top-mounted Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.

Product Attributes

Specifications

Style 7 Pin Flat
Type Plugs & Sockets
Diagnostic coding Not Required
Fog cut off Not Applicable
Reverse sensor cut off Not Applicable
Wiring option Direct Fit Wiring Harness
Fitting time [min.] 30 (UNT272)
Fitting time [min.] 90 (TXR862)
Ball weight [kg] 350
Towbar class Heavy Duty (4x4 Recovery)
Towbar capacity [kg] 3500
Recovery load-tested 4000kg WLL
Recovery points 2
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4045TXR
Coating Textured Powder Coated
Bumper removed during fitment Yes
Bumper cut out required No
Exposure Partially concealed

Vehicle Applications

Toyota Landcruiser (01/1991 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
TOYOTA	LANDCRUISER	03/1991	-	Troop Carrier	78 Series	1VD-FTV \| 4.5L \| Diesel	VDJ78R	Manual 4WD
TOYOTA	LANDCRUISER	03/1991	08/2016	Troop Carrier	78 Series	1VD-FTV \| 4.5L \| Diesel	VDJ78R	4WD
TOYOTA	LANDCRUISER	11/1991	02/2007	Troop Carrier	78 Series	1HD-FTE \| 4.2L \| Diesel	HDJ78R	Manual 4WD
TOYOTA	LANDCRUISER	11/1991	02/2007	Troop Carrier	78 Series	1HD-FTE \| 4.2L \| Diesel	HDJ78R	Manual 4WD
TOYOTA	LANDCRUISER	10/1991	01/2007	Troop Carrier	78 Series	1H-Z \| 4.2L \| Diesel	HZJ78R	4WD
TOYOTA	LANDCRUISER	10/1991	01/2007	Troop Carrier	78 Series	1H-Z \| 4.2L \| Diesel	HZJ78R	Manual 4WD
TOYOTA	LANDCRUISER	01/1991	01/2007	Troop Carrier	HZJ70RV, HZJ73, HZJ75RV, HZJ78R	1H-Z \| 4.2L \| Diesel	D	4WD
TOYOTA	LANDCRUISER	10/1991	07/2001	Troop Carrier	78 Series	1FZ-FE \| 4.5L \| Petrol	FZJ78R	Manual 4WD
TOYOTA	LANDCRUISER	10/1991	07/2001	Troop Carrier	78 Series	1H-Z \| 4.2L \| Diesel	HZJ78R	Manual 4WD
