TAG XR Towbar and wiring kit for tub models with rear step only.

This Kit Includes:

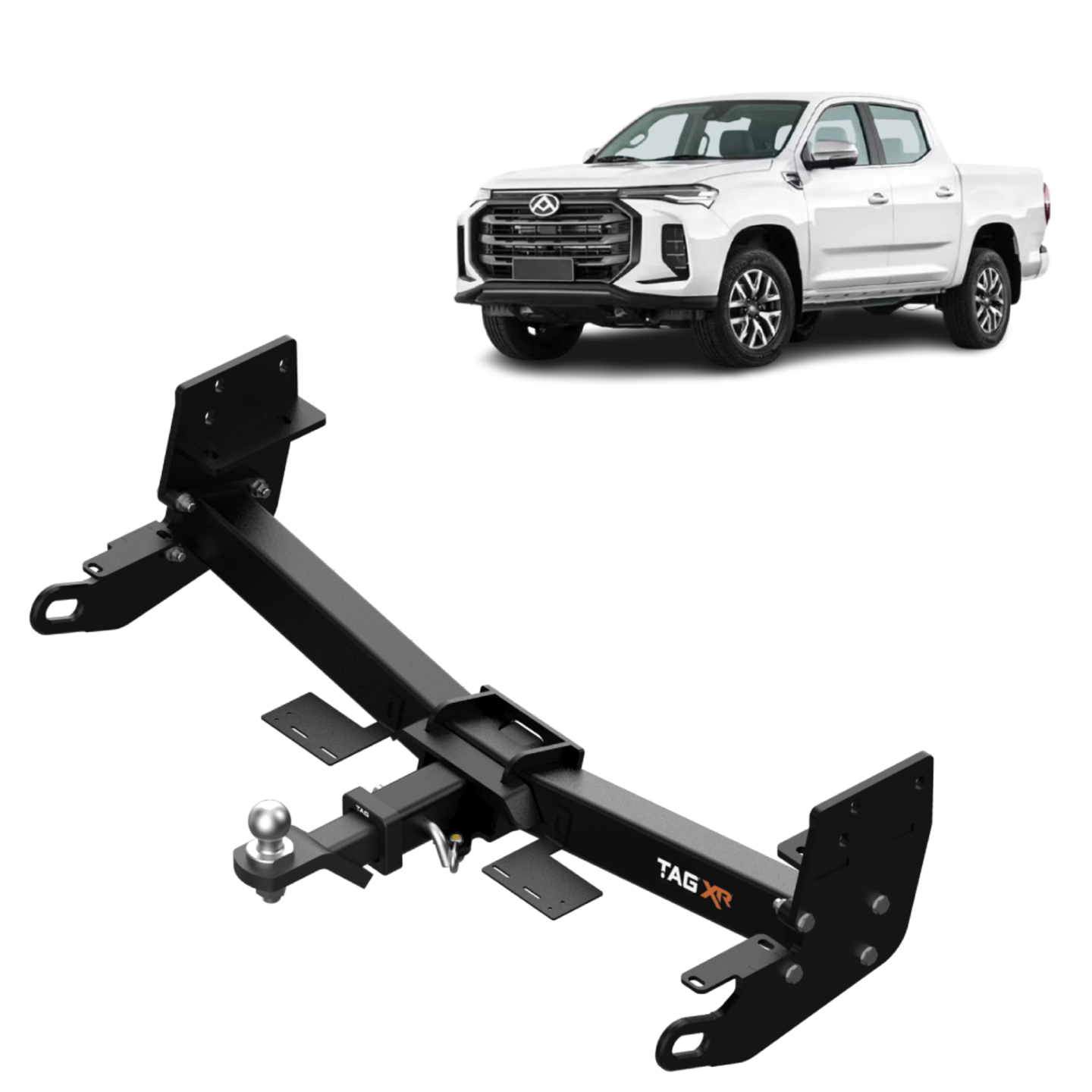

  • TAG 4x4 Recovery Towbar

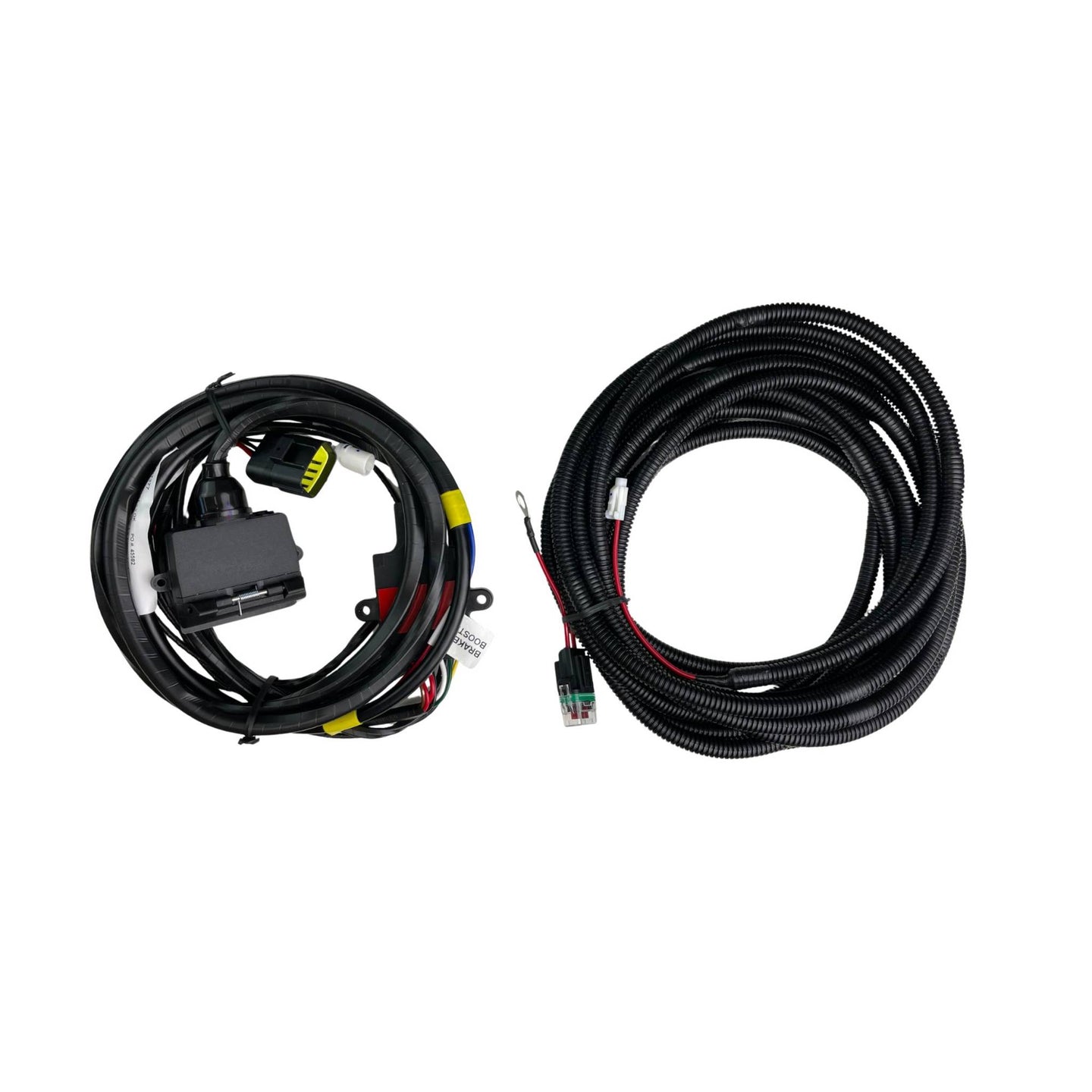

  • TAG Direct Fit Wiring Harness

  • TAG 7 Pin Flat Socket - Vehicle Side

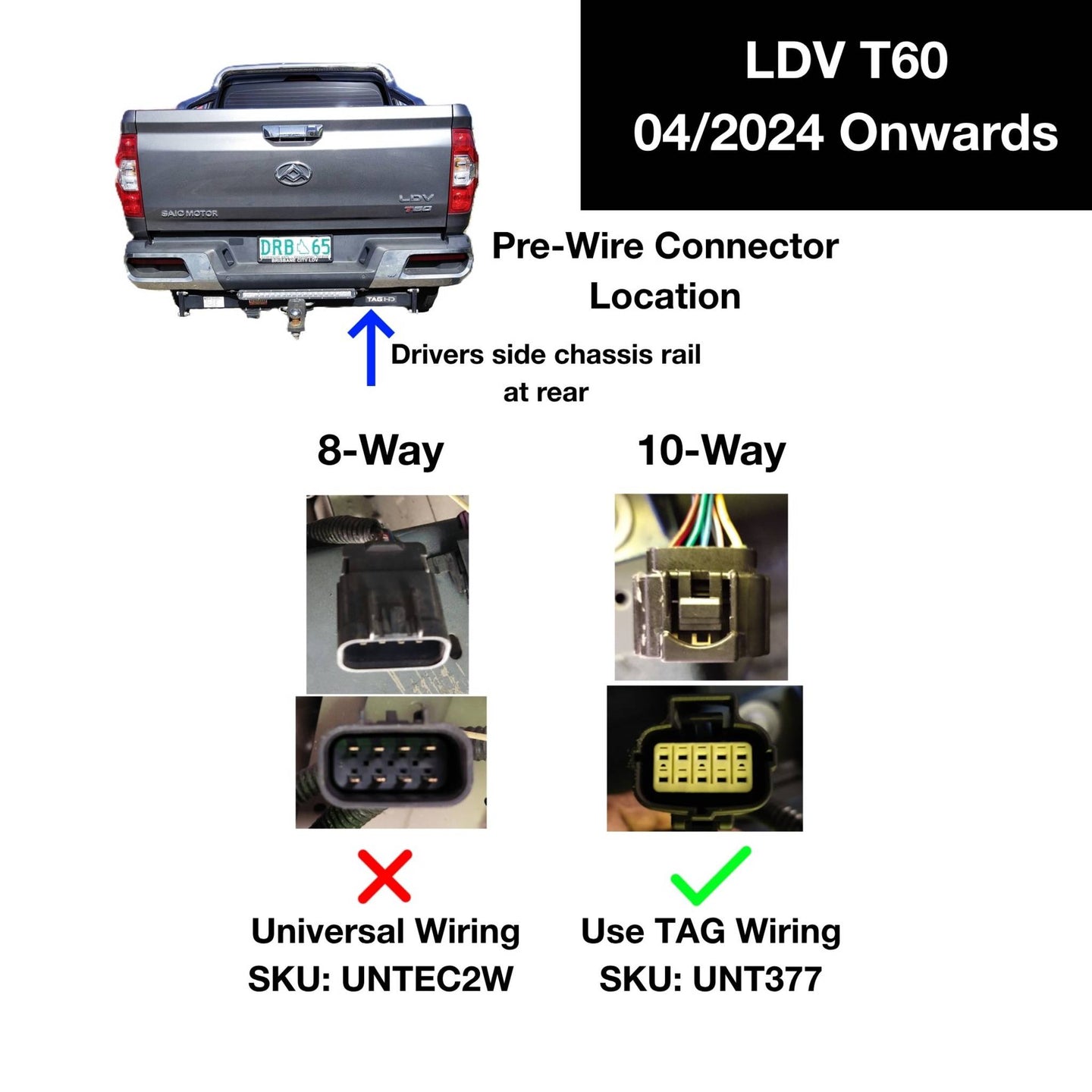

*Wiring: Will only suit 04/2024 models with 10 way pre-wire connector only (see second photo). For 04/2024 on, 8-way connector use universal wiring.

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

  • Extreme Duty Reinforced Crossbar

  • Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Textured Powder Coated Finish

  • Dual top-mounted Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

TAG Extreme Recovery Towbar And Wiring Kit For LDV T60 & T60 Max Styleside Tub (03/2024 - On)

SKU TXR868-K202
$1,814.00

TAG XR Towbar and wiring kit for tub models with rear step only.

This Kit Includes:

  • TAG 4x4 Recovery Towbar

  • TAG Direct Fit Wiring Harness

  • TAG 7 Pin Flat Socket - Vehicle Side

*Wiring: Will only suit 04/2024 models with 10 way pre-wire connector only (see second photo). For 04/2024 on, 8-way connector use universal wiring.

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

  • Extreme Duty Reinforced Crossbar

  • Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Textured Powder Coated Finish

  • Dual top-mounted Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
$1,814.00
Assembly Components
Specifications
  • Led support yes
  • Diagnostic coding No
  • Reverse sensor cut off Optional
  • Wiring type Direct Fit
  • Wiring option Direct Fit ECU
  • Fitting time [min.] 60
  • Towbar class Heavy Duty (4x4 Recovery)
  • Towbar capacity [kg] 3500
  • Recovery load-tested 4000kg WLL
  • Recovery points 2
  • Hitch type 50mm Square Hitch Receiver
  • Tow ball mount L4045TXR
  • Coating Textured Powder Coated
  • Bumper removed during fitment Yes
  • Bumper cut out required No
  • Exposure Partially concealed
  • Ball weight [kg] 350
Vehicle Applications

LDV T60 (03/2024 - on)

Make Model From To Body Series Engine Variant Drivetrain
LDV T60 03/2024 - Ute SK8C 0.0L | Electric - RWD
LDV T60 03/2024 - Ute SK8C SC20M218Q5 | 2.0L | Diesel DTT AWD
LDV T60 03/2024 - Ute SK8C SC20M218Q5 | 2.0L | Diesel DTT RWD
LDV T60 03/2024 - Ute SK8C SC20M163Q5 | 2.0L | Diesel - AWD
LDV T60 03/2024 - Ute SK8C SC20M163Q5 | 2.0L | Diesel - RWD
LDV T60 03/2024 - Ute - D20 | 2.0L | Diesel TRAILRIDER 2 Automatic/Manual 4WD
LDV T60 03/2024 - Ute - SC28R150Q5 | 2.8L | Diesel LUXE, PRO, TRAILRIDER, Automatic/Manual 4WD
LDV T60 03/2024 - Ute - SC28R150Q5 | 2.8L | Diesel Pro| Luxe 4WD
LDV T60 03/2024 - Ute SK8C SC28R150Q5 | 2.8L | Diesel - RWD
LDV T60 03/2024 08/2021 Ute SK8C SC28R150Q5 | 2.8L | Diesel - AWD

TAG XR Towbar and wiring kit for tub models with rear step only.

This Kit Includes:

  • TAG 4x4 Recovery Towbar

  • TAG Direct Fit Wiring Harness

  • TAG 7 Pin Flat Socket - Vehicle Side

*Wiring: Will only suit 04/2024 models with 10 way pre-wire connector only (see second photo). For 04/2024 on, 8-way connector use universal wiring.

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

  • Extreme Duty Reinforced Crossbar

  • Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Textured Powder Coated Finish

  • Dual top-mounted Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
