TAG Extreme Recovery Towbar & Direct Fit Wiring for Mitsubishi Triton MV Stylside Tub Body (2024 - on)

files/TXR863_TXR863.png
files/UNT369_UNT369_16498e4d-3141-475b-a70a-33d7e1bc6db3.jpg

TAG Extreme Recovery Towbar & Direct Fit Wiring for Mitsubishi Triton MV Stylside Tub Body (2024 - on)

SKU TXR863-K201

RRP: $1,671.00

Quantity

Assembly Components

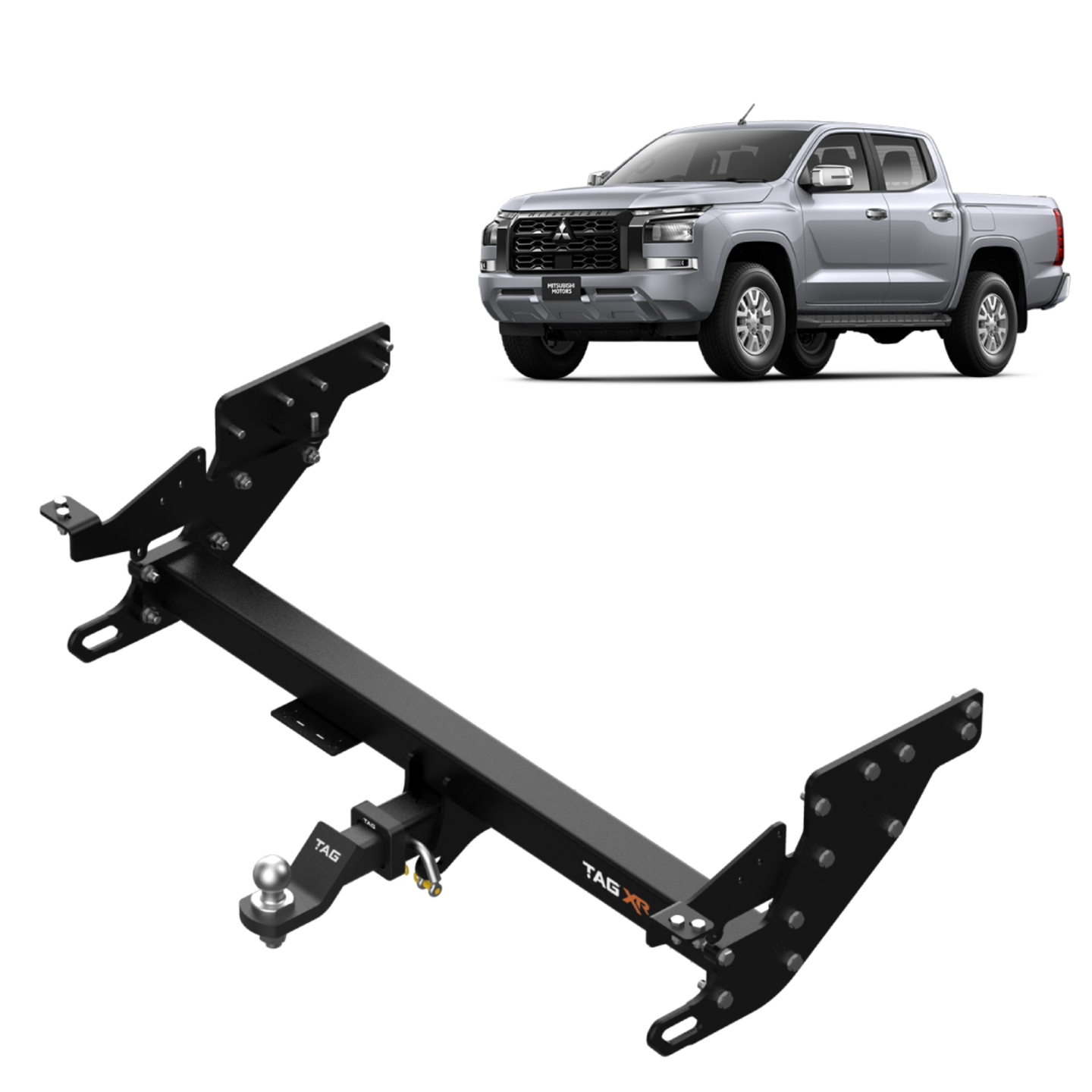

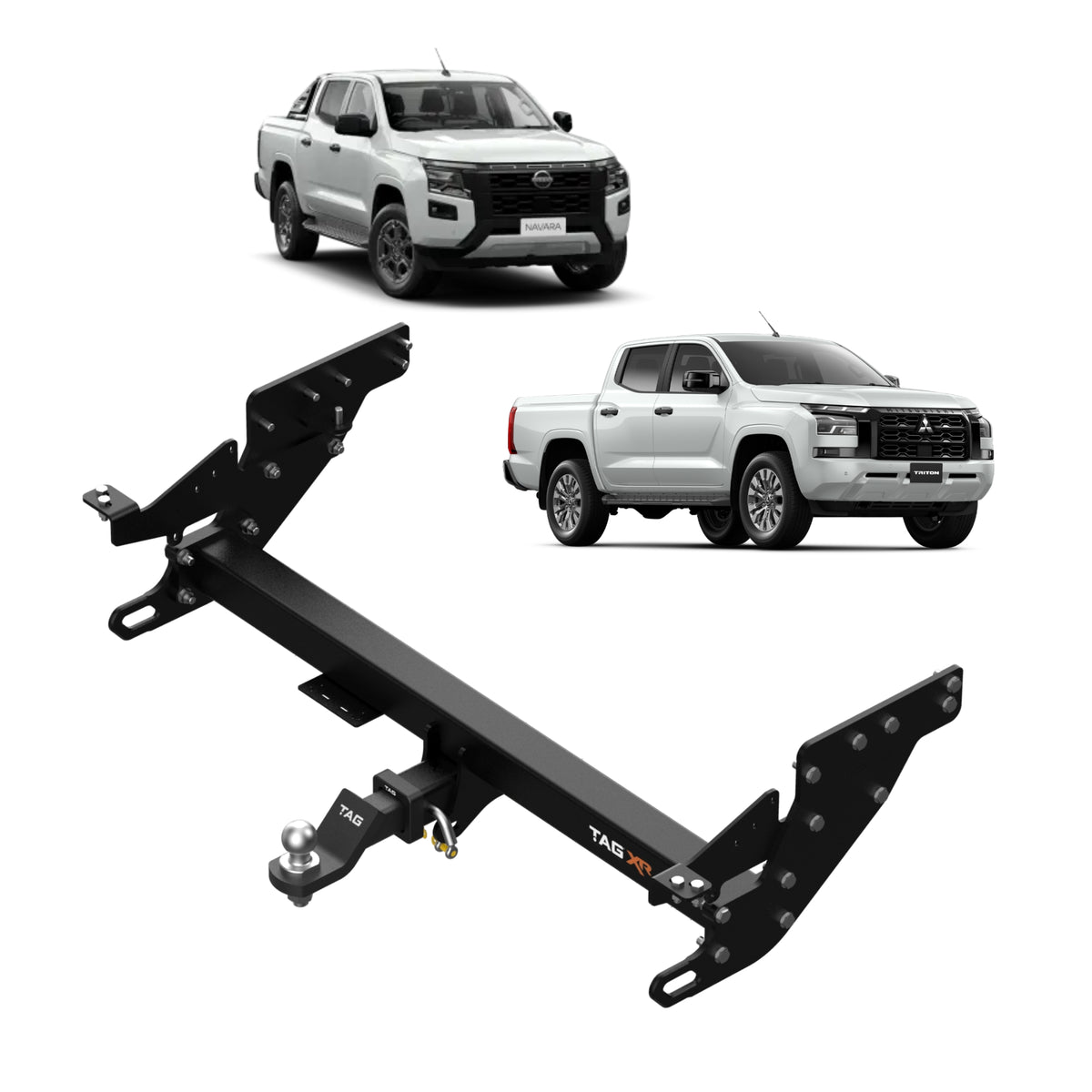

TAG Extreme Recovery Towbar for Mitsubishi Triton MV Styleside Ute (2024 - on)

TXR863

$1,249.00

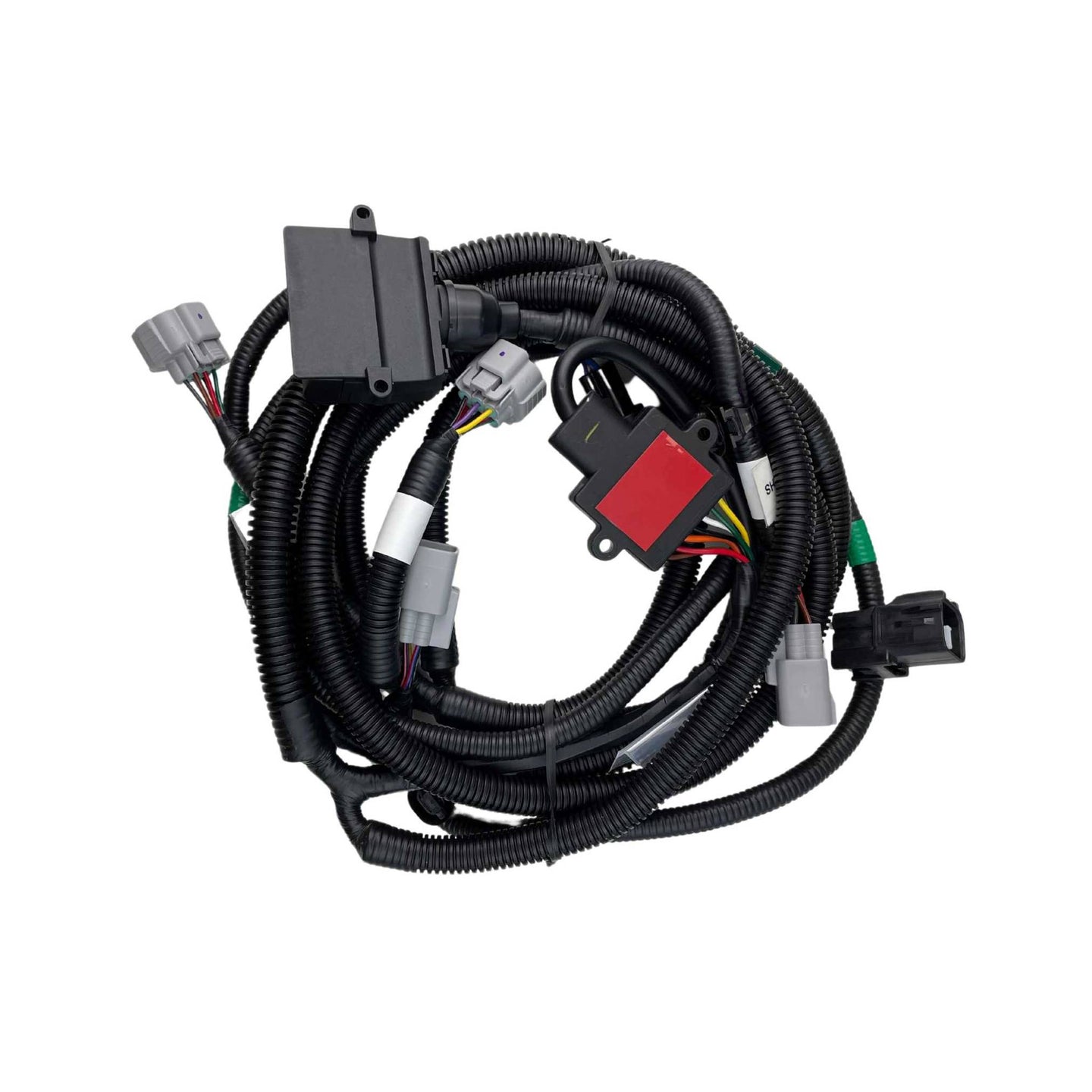

TAG Direct Fit Wiring Harness for Mitsubishi Triton MV (2024 - On)

UNT369

$422.00

Product Description

This Kit Includes:

Tag Extreme Recovery Towbar
Tag Direct Fit Wiring
7 Pin Flat Socket
Extreme Recovery Towbar:
- Zinc Tow Ball & Extreme Duty Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
- Extreme Duty Reinforced Crossbar
- Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit Soft-Shackles.
- Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
- Highly durable, textured Extreme Duty Powder Coated Finish
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar - 50mm Square Hitch Receiver

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Wiring option Direct Fit ECU
Diagnostic coding Not Required
Wiring type Direct Fit
Includes trailer plug Yes
Brake controller prep Yes
Reed switch Normally Open Circuit
Reverse sensor cut off Automatic
Fitting time [min.] 45
Coating Textured Powder Coated
Ball weight [kg] 350
Towbar class Heavy Duty (4x4 Recovery)
Towbar capacity [kg] 3500
Recovery load-tested 4000kg WLL
Recovery points 2
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4045TXR
Bumper removed during fitment Yes
Fits models with rear step Yes
Bumper cut out required No
Exposure Concealed

Vehicle Applications

Vehicle Applications

Mitsubishi Triton (12/2023 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
MITSUBISHI	TRITON	12/2023	-	Cab Chassis	MV	4N16 \| 2.4L \| Diesel	GLS, GLX, GLX+, GLR	Automatic 4X4
MITSUBISHI	TRITON	12/2023	-	Cab Chassis	MV	4N16 \| 2.4L \| Diesel	GLX	Automatic/Manual 4X2
MITSUBISHI	TRITON	12/2023	-	Ute	MV	4N16 \| 2.4L \| Diesel	GLS, GLX, GLX+, GLR	Automatic 4WD
MITSUBISHI	TRITON	12/2023	-	Ute	MV	4N16 \| 2.4L \| Diesel	GLX	Automatic RWD
MITSUBISHI	TRITON	12/2023	-	Ute	MV	4N16 \| 2.4L \| Diesel	GLX+ CLUB CAB	Automatic 4WD
MITSUBISHI	TRITON	12/2023	-	Cab Chassis	LA_, LB_, LC_, MV	4N16 \| 2.4L \| Diesel	DI-D	AWD
MITSUBISHI	TRITON	12/2023	-	Ute	-	4N16 \| 2.4L \| Diesel	DI-D	AWD
MITSUBISHI	TRITON	12/2023	-	Ute	-	4N16 \| 2.4L \| Diesel	DI-D	RWD
