TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 76 Series Wagon (03/2007 - On)

SKU TXR853-K201

RRP: $1,146.68

Quantity

RRP: $1,146.68

Assembly Components

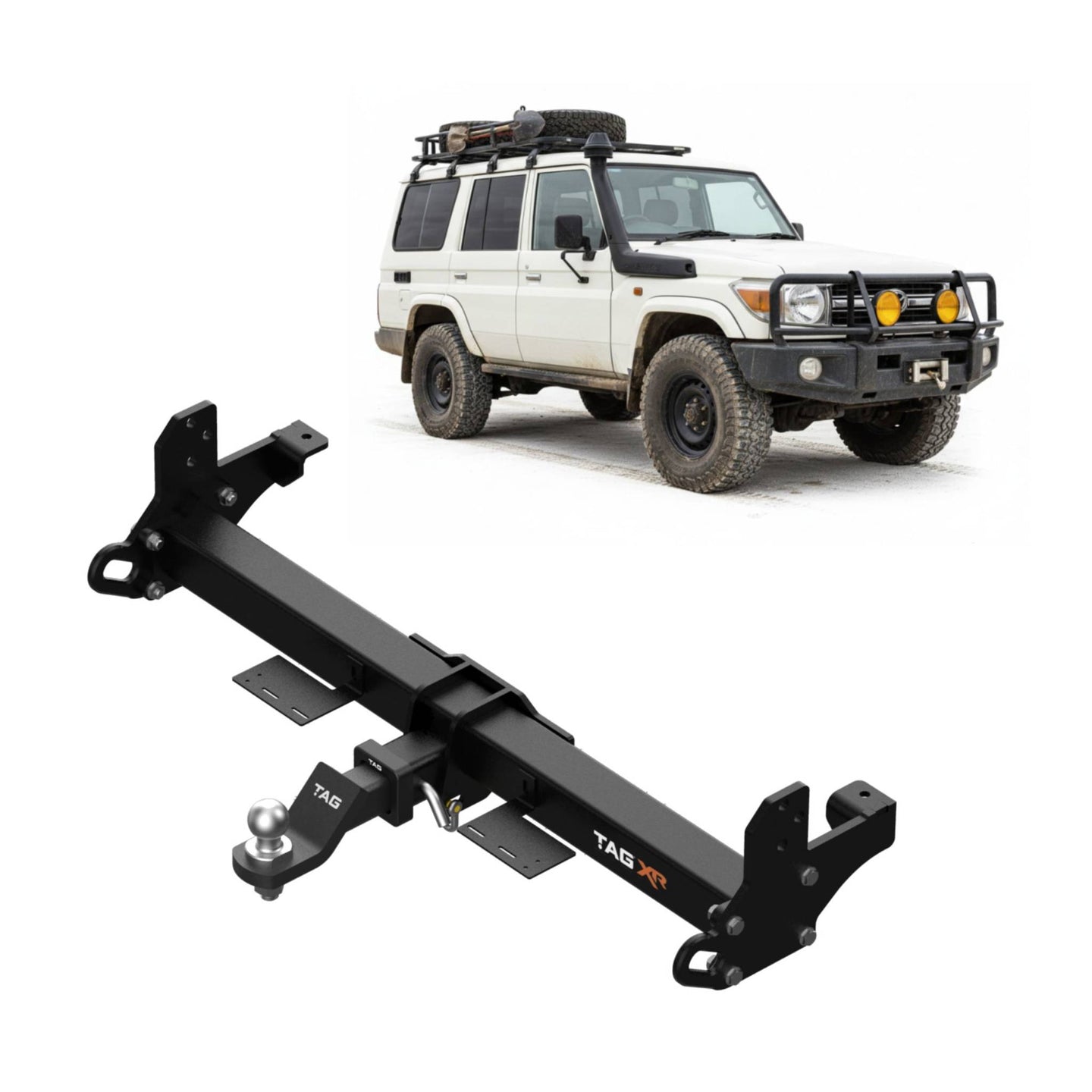

TAG Extreme Recovery Towbar for Toyota Landcruiser 76 Series Wagon (03/2007 - On)

TXR853

$1,079.00

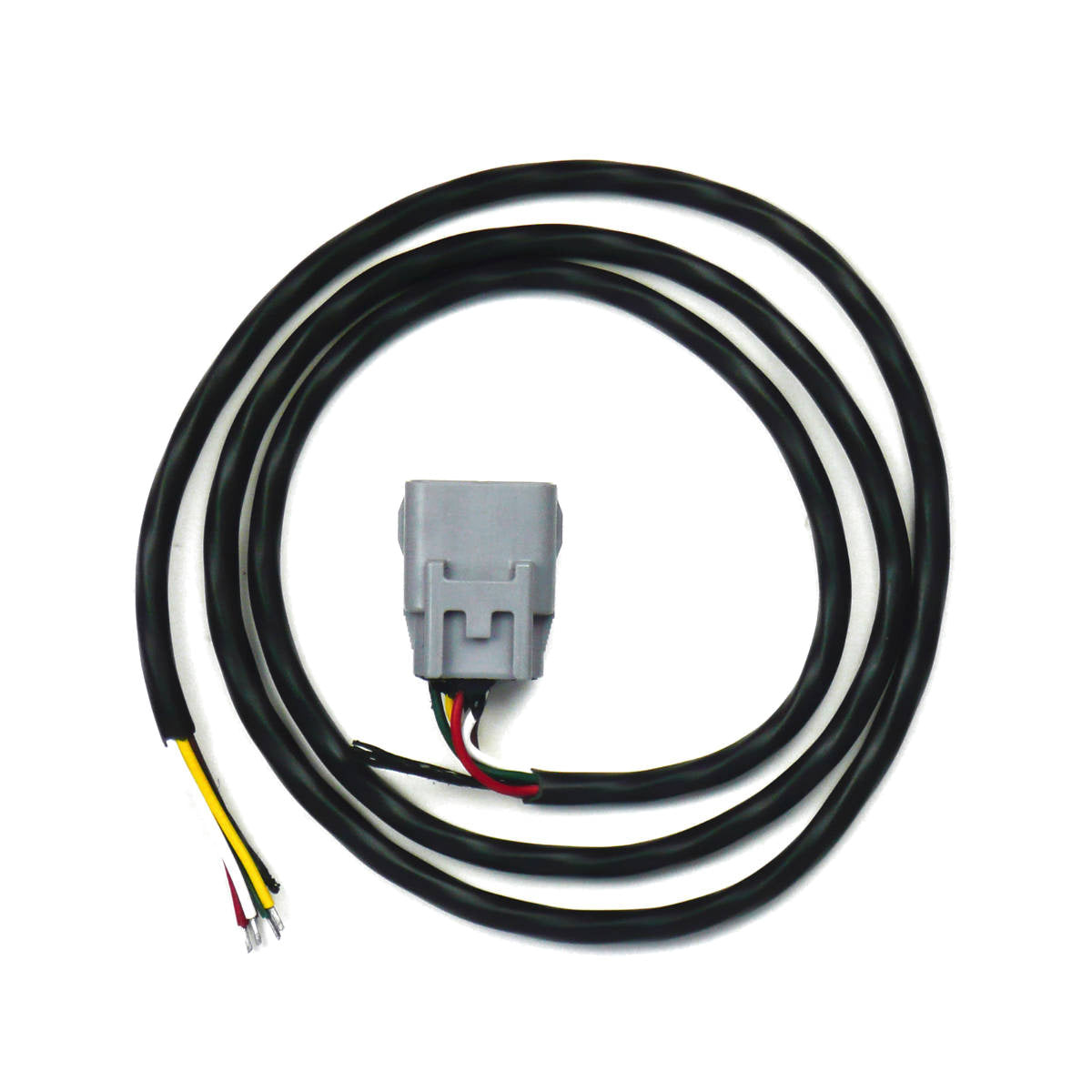

TAG Direct Fit Wiring Harness for Toyota Landcruiser 70 Series Models (11/1984 - on)

UNT272

$54.99

Product Description

This Kit Includes:

Tag Extreme Recovery Towbar
Direct Fit Wiring
7 Pin Flat Plug

Extreme Recovery Towbar:

Extreme Duty Reinforced Crossbar
Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Textured Powder Coated Finish
Dual top-mounted Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.

Product Attributes

Specifications

Style 7 Pin Flat
Type Plugs & Sockets
Diagnostic coding Not Required
Fog cut off Not Applicable
Reverse sensor cut off Not Applicable
Wiring option Direct Fit Wiring Harness
Fitting time [min.] 30 (UNT272)
Fitting time [min.] 90 (TXR853)
Ball weight [kg] 350
Towbar class Heavy Duty (4x4 Recovery)
Towbar capacity [kg] 3500
Recovery load-tested 4000kg WLL
Recovery points 2
Hitch type Heavy Duty 50mm Square
Tow ball mount L4045TXR
Coating Textured Powder Coated
Bumper removed during fitment Yes
Bumper cut out required No
Exposure Exposed

Vehicle Applications

Toyota Landcruiser (01/2007 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
TOYOTA	LANDCRUISER	09/2007	-	Wagon	76 Series	GDJL76 \| 2.8L \| Diesel	GXL+	Automatic 4WD
TOYOTA	LANDCRUISER	09/2007	-	Wagon	76 Series	1GDFTV \| 2.8L \| Diesel	WORKMATE	Automatic 4WD
TOYOTA	LANDCRUISER	09/2007	-	Wagon	78 Series	1GD-FTV \| 2.8L \| Diesel	D-4D 3.5t	4WD
TOYOTA	LANDCRUISER	09/2007	-	Wagon	76 Series	1GD-FTV \| 2.8L \| Diesel	D-4D 3.5t	4WD
TOYOTA	LANDCRUISER	09/2007	-	Wagon	78 Series, 76 Series	1VD-FTV \| 4.5L \| Diesel	TD 32V 3.5t	4WD
TOYOTA	LANDCRUISER	09/2007	-	Wagon	76 Series	1VDFTV \| 4.5L \| Diesel	GXL, Workmate	Manual 4WD
TOYOTA	LANDCRUISER	09/2007	-	Wagon	76 Series	1VD-FTV \| 4.5L \| Diesel	VDJ (with DPF)	4WD
TOYOTA	LANDCRUISER	03/2007	-	Wagon	71 Series	1GR-FE \| 4.0L \| Petrol	-	4WD
TOYOTA	LANDCRUISER	03/2007	-	Wagon	76 Series	1GR-FE \| 4.0L \| Petrol	-	4WD
TOYOTA	LANDCRUISER	03/2007	-	Wagon	79 Series	1GR-FE \| 4.0L \| Petrol	-	4WD
TOYOTA	LANDCRUISER	03/2007	-	Wagon	76 Series	1VD-FTV \| 4.5L \| Diesel	VDJ76R, 70TH ANNIVERSARY SPECIAL EDITION, GXL, WORKMATE	Manual 4WD
TOYOTA	LANDCRUISER	01/2007	12/2022	Wagon	76 Series	1VD-FTV \| 4.5L \| Diesel	-	Manual 4X4
TOYOTA	LANDCRUISER	01/2007	08/2022	Wagon	76 Series, 78 Series	1VD-FTV \| 4.5L \| Diesel	TD 32V	4WD
TOYOTA	LANDCRUISER	01/2007	08/2022	Wagon	76 Series, 78 Series	1VD-FTV \| 4.5L \| Diesel	TD 32V	4WD
