TAG Extreme Recovery Towbar & Direct Fit Wiring Kit for GWM Tank 300 Petrol Models Only (10/2022 - on)

SKU TXR883-K201
$1,541.00
$1,232.80
$1,541.00
$1,232.80
Product Attributes
  • Diagnostic coding No
  • Fitting time [min.] 30 (UNT366)
  • Fitting time [min.] 60 (TXR883)
  • Reverse sensor cut-off Via Dash
  • Wiring type Direct Fit
  • Includes trailer plug Yes
  • Brake controller prep Yes
  • Towbar class Heavy Duty (4x4 Recovery)
  • Towbar capacity [kg] 3000
  • Ball weight [kg] 300
  • Recovery load-tested 4000kg WLL
  • Recovery points 2
  • Tow ball mount L4045TXR
  • Coating Textured Powder Coated
  • Hitch type 50mm Square Hitch Receiver
  • Bumper removed during fitment No
  • Bumper cut out required Yes
  • Exposure Partially Concealed
Assembly Components

This Kit Includes:

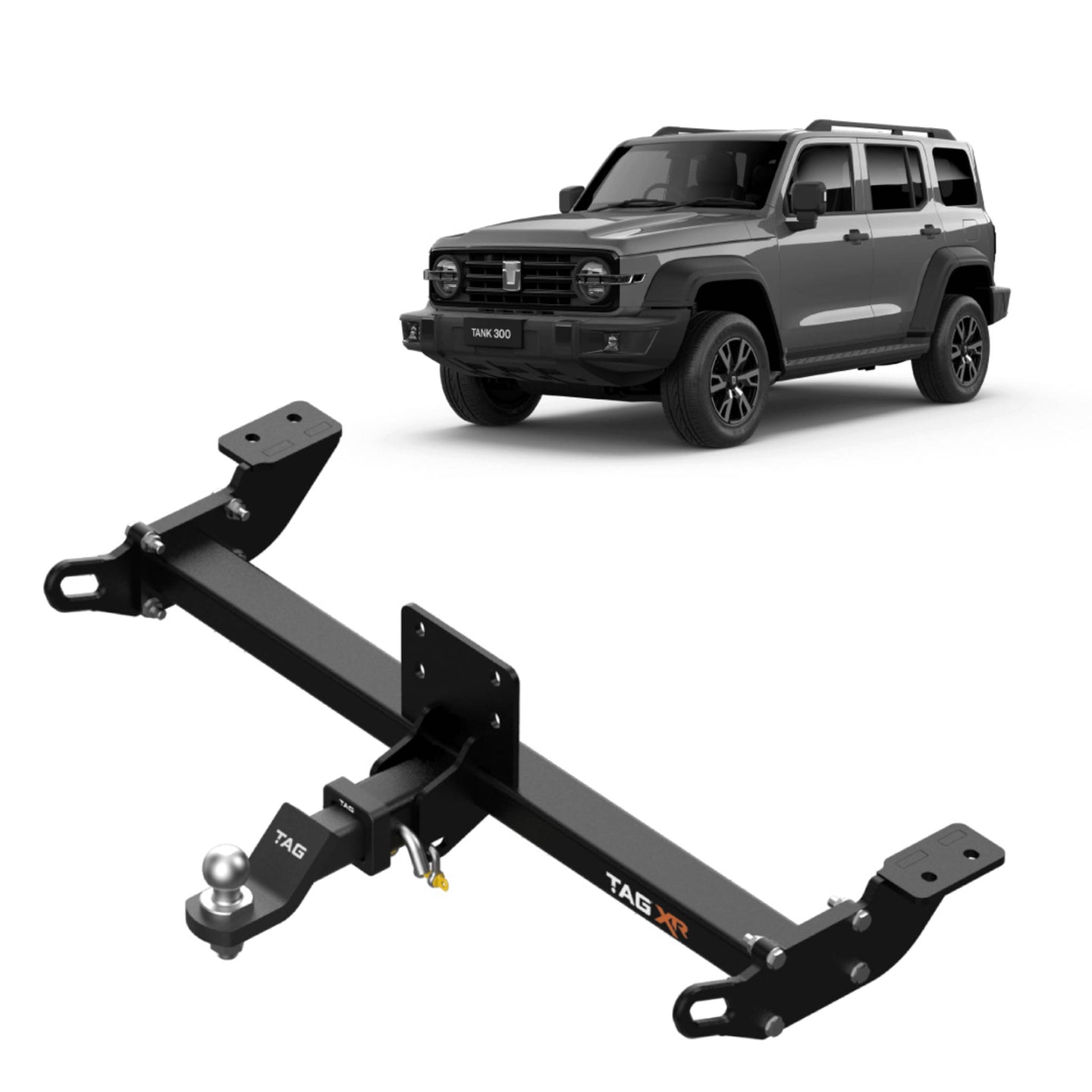

  • TAG Heavy Duty Towbar

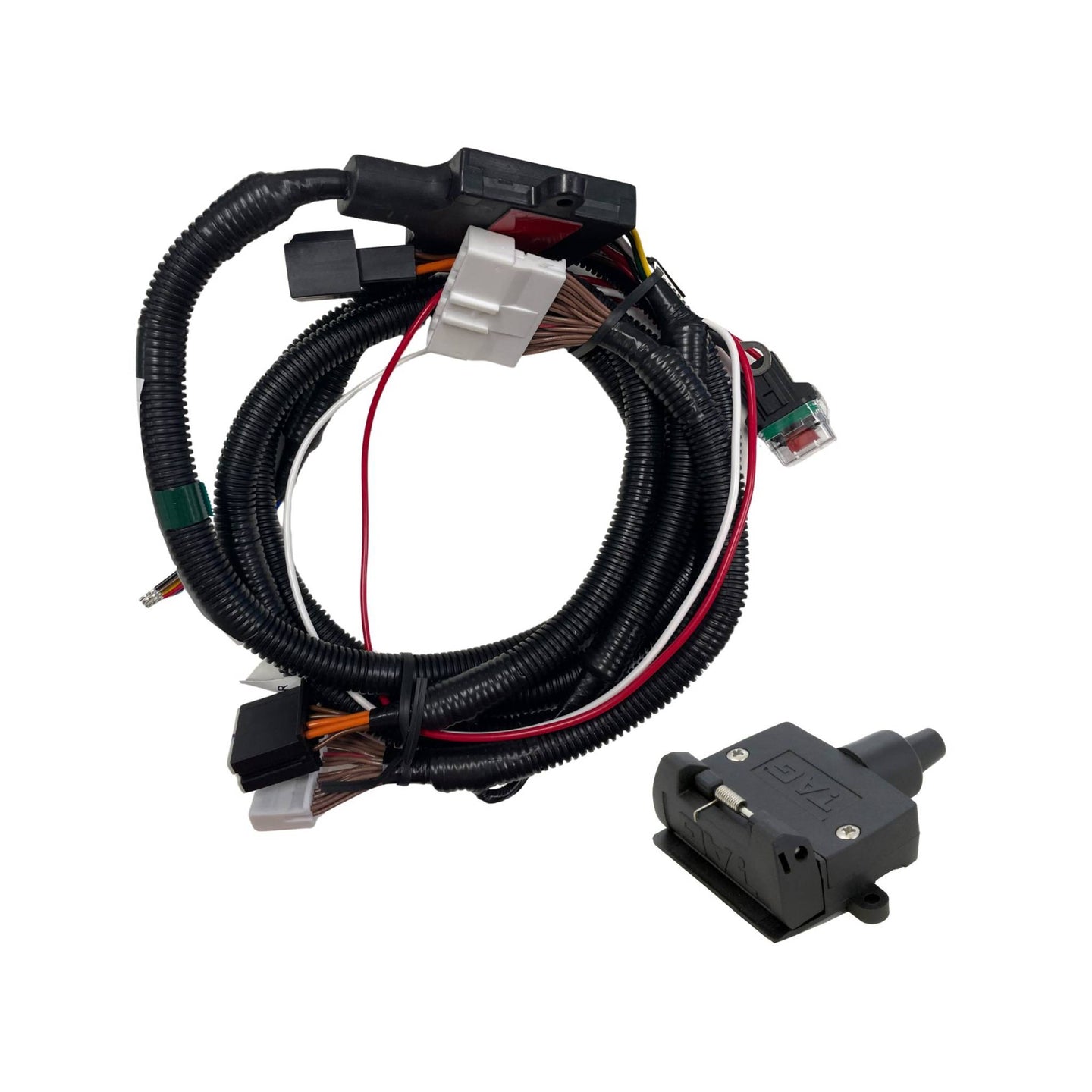

  • TAG Direct fit wiring harness (replaces factory wiring harness and does not automatically activate 'Tow Mode')

  • 7 Pin Flat Socket

Featuring:

  • Includes Zinc Tow Ball & Extreme Duty Hitch rated at 3000kg towing capacity / 300kg ball weight, Pin & Clip and D-Shackles

  • Extreme Duty Reinforced Crossbar

  • Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit Soft-Shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Highly durable, textured Extreme Duty Powder Coated Finish

  • Dual top-mounted Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Vehicle Applications

GWM Tank 300 (03/2023 - on)

Make Model From To Body Series Engine Variant Drivetrain
GWM TANK 300 03/2023 - SUV P01 GW4E20CB | 2.0L | Petrol LUX, ULTRA 4WD
GWM TANK 300 03/2023 - SUV . GW4C20NT | 2.0L | Petrol LUX, ULTRA Automatic AWD
