TAG Extreme Recovery Towbar & Direct Fit Wiring Kit For Isuzu MU-X (07/2021 - on)

files/3911156964528.jpg
files/3377336902215_65f9109b-18ce-468b-b2e6-97878fa4b324.jpg

TAG Extreme Recovery Towbar & Direct Fit Wiring Kit For Isuzu MU-X (07/2021 - on)

SKU TXR832-K201

RRP: $1,542.99

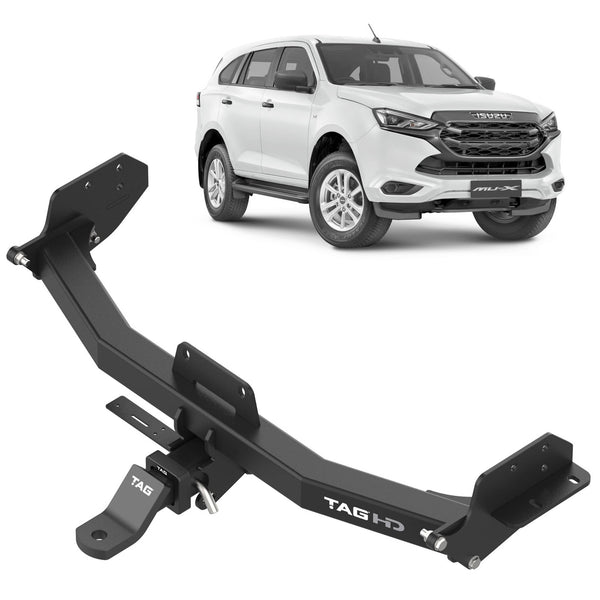

TAG Heavy Duty Towbar & Direct Fit Wiring Kit for Isuzu MU-X (06/2021 - on)

TAG Heavy Duty Towbar & Direct Fit Wiring Kit for Isuzu MU-X (06/2021 - on)

SKU: T7H808-K201

$1,418.99

alternate

Heavy Duty Towbar Option

Quantity

RRP: $1,542.99

Assembly Components

Product Description

This Kit Includes:

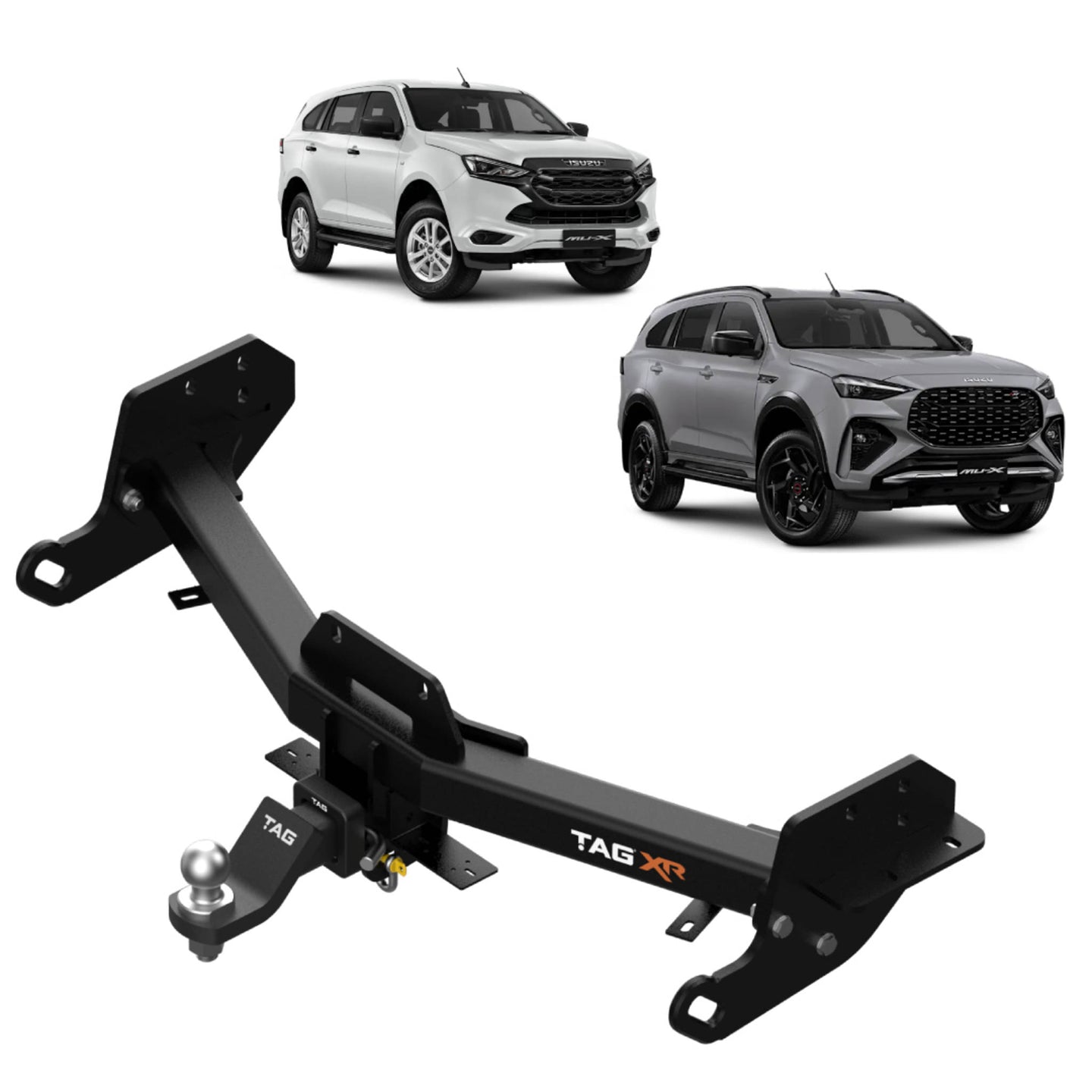

TAG 4x4 Recovery Towbar

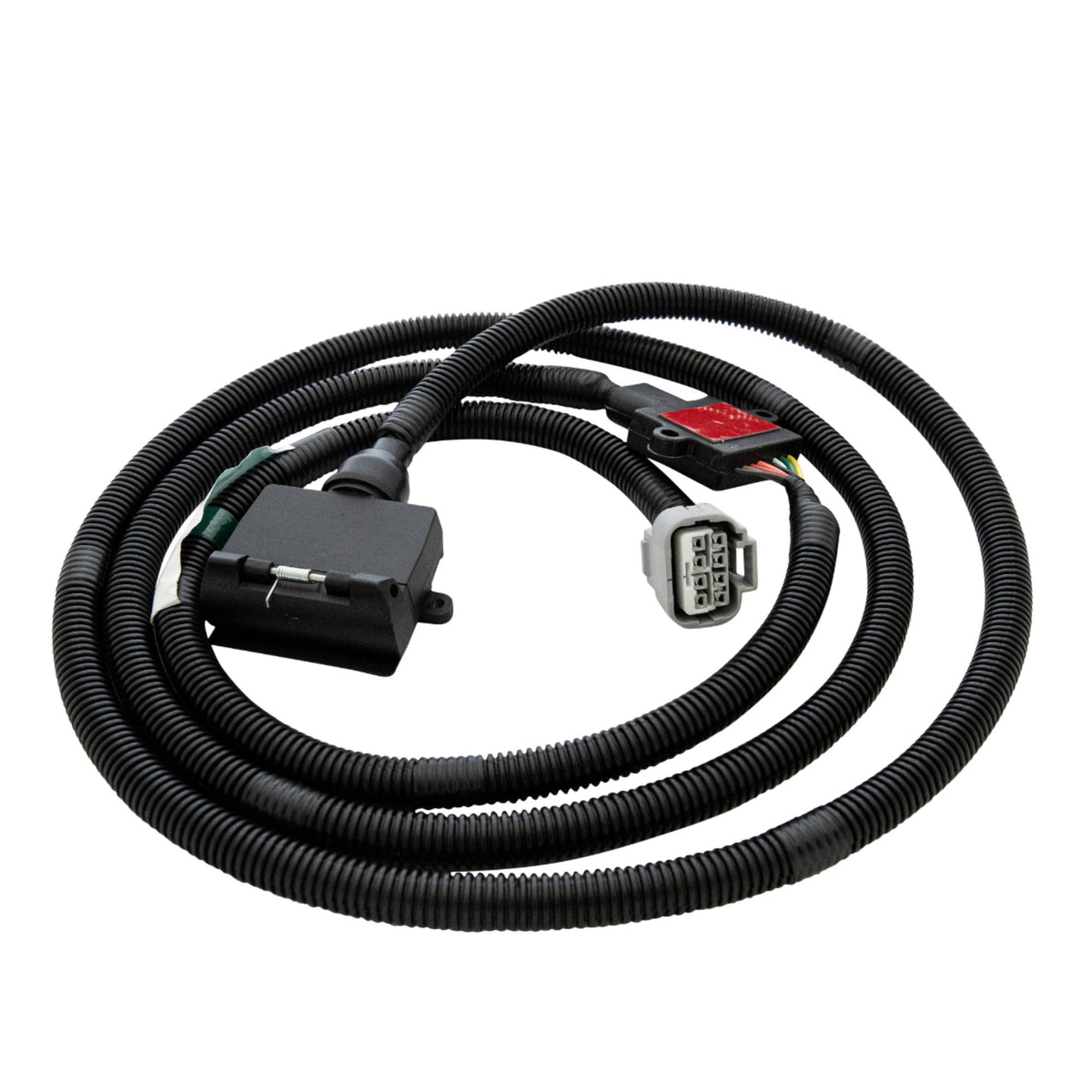

TAG Towbar Wiring Direct Fit - ECU
TAG 7 Pin Flat Socket - Vehicle Side

Built in Australia, the TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

Updated design to cater for larger tyres (265/70R17)
65mm x 65mm Extreme Duty Reinforced Crossbar
Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Highly durable, textured Extreme Duty Powder Coated Finish
Dual top-mounted Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

Fitting instructions now include bumper cut template.

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Diagnostic coding Not Required
Fitting time [min.] 30 (UNT351)
Fitting time [min.] 90 (TXR832)
Reverse sensor cut-off Automatic
Wiring type Direct Fit
Includes trailer plug Yes
Reed switch Normally Open Circuit
Can bus support no
Towbar class Heavy Duty (4x4 Recovery)
Towbar capacity [kg] 3500
Recovery load-tested 4500kg WLL
Recovery points 2
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4045STXR
Coating Textured Powder Coated
Bumper removed during fitment Yes
Bumper cut out required Yes
Exposure Partially concealed
Ball weight [kg] 350

Vehicle Applications

Vehicle Applications

Isuzu MU-X (06/2021 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
ISUZU	MU-X	11/2023	-	SUV	TFS/TFR (UCR/UCS)	RZ4E-TC \| 1.9L \| Diesel	Ddi	AWD
ISUZU	MU-X	11/2023	-	SUV	TFS/TFR	RZ4E-TC \| 1.9L \| Diesel	Ddi	RWD
ISUZU	MU-X	07/2021	-	SUV	RJ	4JJ3-TCX \| 3.0L \| Diesel	LS-M, LS-T, LS-U	Automatic 4WD
ISUZU	MU-X	07/2021	-	SUV	RJ	4JJ3-TCX \| 3.0L \| Diesel	LS-M, LS-T, LS-U	Automatic RWD
ISUZU	MU-X	06/2021	-	SUV	TFS/TFR	4JJ3-TCX \| 3.0L \| Diesel	Ddi	4WD
ISUZU	MU-X	06/2021	-	SUV	TFS/TFR	4JJ3-TCX \| 3.0L \| Diesel	Ddi	RWD
