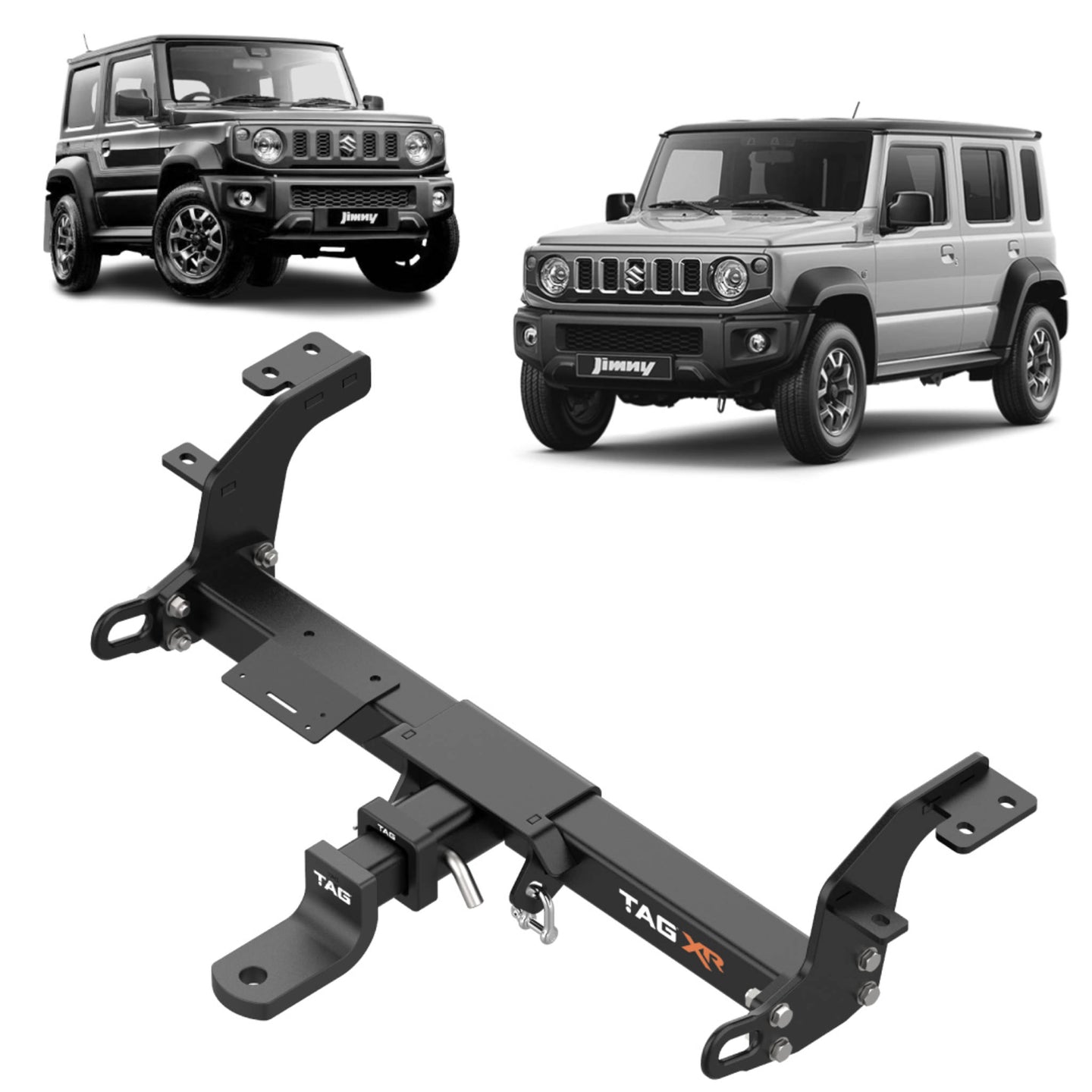

TAG Extreme Recovery Towbar for Suzuki Jimny 3 and 5 Door XL (11/2018 - on)

files/TXR817_TXR817.jpg

TAG Extreme Recovery Towbar for Suzuki Jimny 3 and 5 Door XL (11/2018 - on)

SKU TXR817

RRP: $889.00

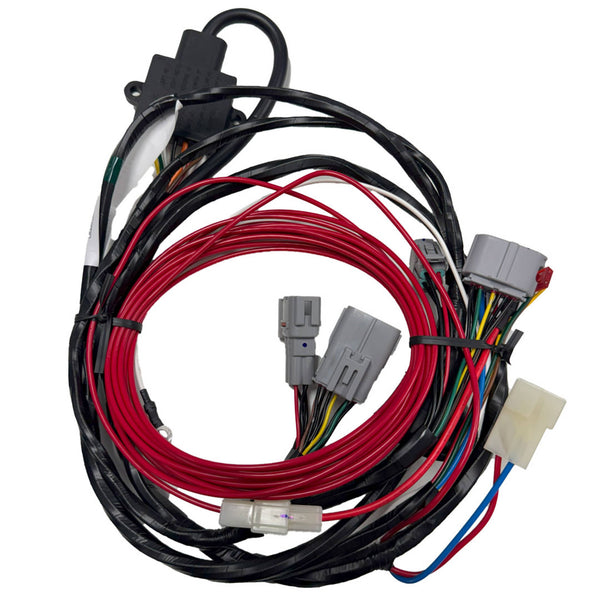

TAG Direct Fit Wiring Harness for Suzuki Jimny 3 and 5 Door (11/2018 - 12/2025)

TAG Direct Fit Wiring Harness for Suzuki Jimny 3 and 5 Door (11/2018 - 12/2025)

SKU: UNT367

$434.00

required

Quantity

Kit Listings

TAG 4x4 Recovery Towbar and Direct Fit Tag Wiring Harness for Suzuki Jimny (11/2018 - 12/2025)

TXR817-K201

$1,335.69

Product Description

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.Featuring:

Suits 3 & 5 Door Models
65mm x 65mm Extreme Duty Reinforced Crossbar
Two WLL 2000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
Flush body-mounted profile for maximum offroad clearance for improved departure angles.
Highly durable, textured Extreme Duty Powder Coated Finish
Top-mounted Trailer & Anderson Plug Mount
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & ballmount rated at 1300kg towing capacity / 75kg ball weight, Pin & Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Fitting time [min.] 45
Ball weight [kg] 75
Towbar class Heavy Duty (4x4 Recovery)
Towbar capacity [kg] 1300
Recovery load-tested 2000kg WLL
Recovery points 2
Tow ball mount L4180TXR
Coating Textured Powder Coated
Bumper removed during fitment Yes
Bumper cut out required Yes
Exposure Partially concealed
Hitch type 50mm Square Hitch Receiver

Vehicle Applications

Vehicle Applications

Suzuki Jimny (11/2018 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
SUZUKI	JIMNY	11/2018	-	SUV	GJ	K15B \| 1.5L \| Petrol	LITE	Automatic/Manual 4WD
SUZUKI	JIMNY	11/2018	-	Wagon	GJ	K15B \| 1.5L \| Petrol	-	AWD
SUZUKI	JIMNY	11/2018	-	SUV	A6G (A6G415, JB74W)	K15B \| 1.5L \| Petrol	-	AWD

Suzuki Jimny (01/2023 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
SUZUKI	JIMNY	12/2023	-	SUV	JC74W	K15B \| 1.5L \| Petrol	XL (5 Door)	Automatic/Manual AWD
SUZUKI	JIMNY	01/2023	-	Wagon	A6G (JC74W)	K15B \| 1.5L \| Petrol	XL	AWD
