TAG Extreme Recovery Towbar & Wiring Adaptor for GWM Cannon Alpha Cab Chassis (08/2024 - 09/2024)

SKU TXRA26-K201
$1,392.69
$1,114.15
$1,392.69
$1,114.15
Product Attributes
  • Fitting time [min.] 45 (UNT359)
  • Fitting time [min.] 40 (TXRA26)
  • Wiring option Direct Fit Wiring Harness
  • Fits vehicle year from 2021
  • Includes trailer plug Yes
  • Wiring type Direct Fit
  • Brake controller prep Yes
  • Fits vehicle year from (month) 01
  • Diagnostic coding Not Applicable
  • Reverse sensor cut off Optional
  • Towbar class Heavy Duty (4x4 Recovery)
  • Towbar capacity [kg] 3500
  • Ball weight [kg] 350
  • Recovery load-tested 4500kg WLL
  • Recovery points 2
  • Tow ball mount L4171
  • Coating Textured Powder Coated
  • Hitch type No
  • Bumper removed during fitment No
  • Fits models with rear step No
  • Bumper cut out required No
  • Exposure Exposed
Assembly Components

Towbar Kit Includes:

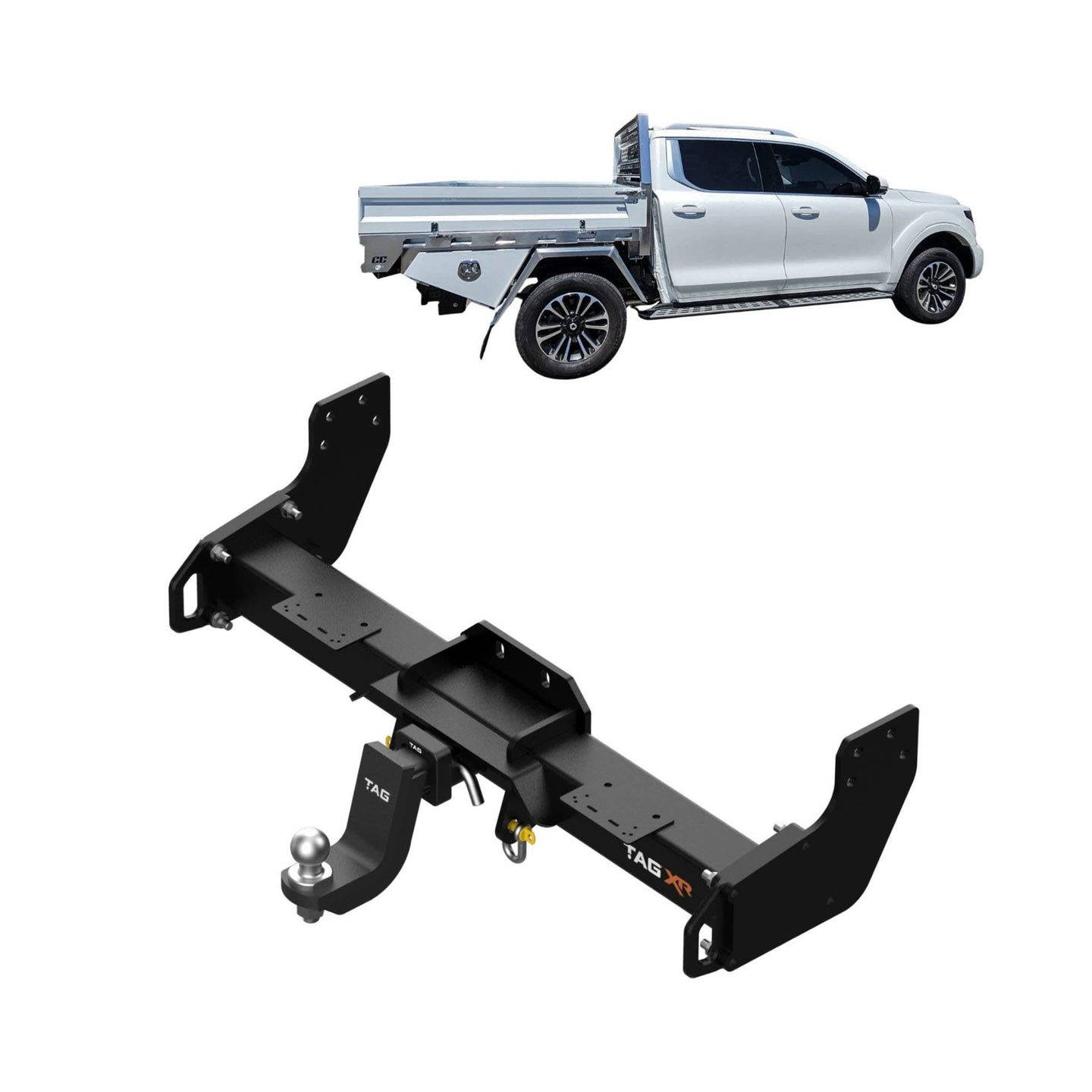

  • TAG Extreme Recovery Towbar

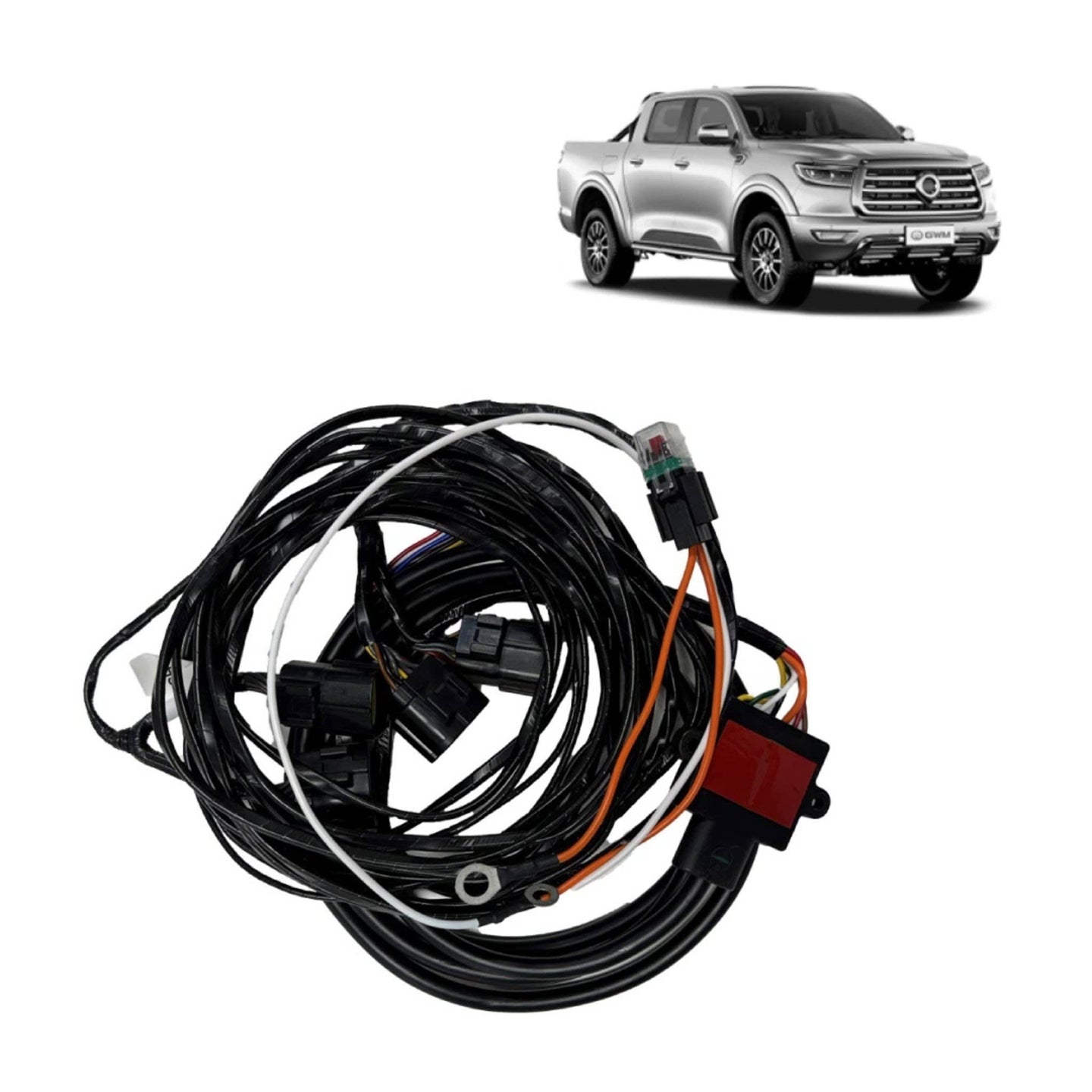

  • TAG Direct Fit Wiring

Towbar:

  • Includes Zinc Tow Ball & Extreme Duty Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

  • Extreme Duty Reinforced Crossbar

  • Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit Soft-Shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Highly durable, textured Extreme Duty Powder Coated Finish

  • Dual top-mounted Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

Wiring:

The UNT057 is a high-quality 13-Pin Euro to 7-Pin Flat AU Adapter designed for seamless compatibility with supported vehicles and towing systems. Key Features:

  • Plug & Play: Direct fit with no diagnostic coding required.

  • Tow Mode Activation: Automatically adjusts vehicle systems when towing on compatible vehicles.

  • Reverse Sensor Cut-Off: Enabled when used with compatible vehicles.

Important Note:
For vehicles that activate “Tow Mode” automatically, it is recommended to only connect the UNT057 when towing.

Vehicle Applications

GWM Cannon Alpha (05/2024 - on)

Make Model From To Body Series Engine Variant Drivetrain
GWM Cannon Alpha 05/2024 - Cab Chassis (Converted) P05 GW4D24 | 2.4L | Diesel Lux,Ultra Automatic 4WD
