TAG Heavy Duty (Extended) Towbar and Direct Fit Wiring Harness for Ford Ranger (03/2014 - 07/2015) - Cab Chassis

SKU T7F706-K101

RRP: $1,519.00

TAG Heavy Duty (Extended)Towbar for Ford Ranger (08/2011 - 06/2022), Mazda BT-50 (11/2011 - 07/2020) - Cab Chassis Models

SKU: T7F706-K201

$1,505.68

alternate

Extended Towbar and Direct Fit Bypass Harness to Suit Cab Chassis with Extended Tray or Canopy

Quantity

RRP: $1,519.00

Assembly Components

Product Description

Premium Powder Coated 3-Piece Heavy Duty Extended Towbar and Direct Fit Wiring Harness To Suit Cab Chassis Models With Extended Tray or Canopy

This Kit Includes:

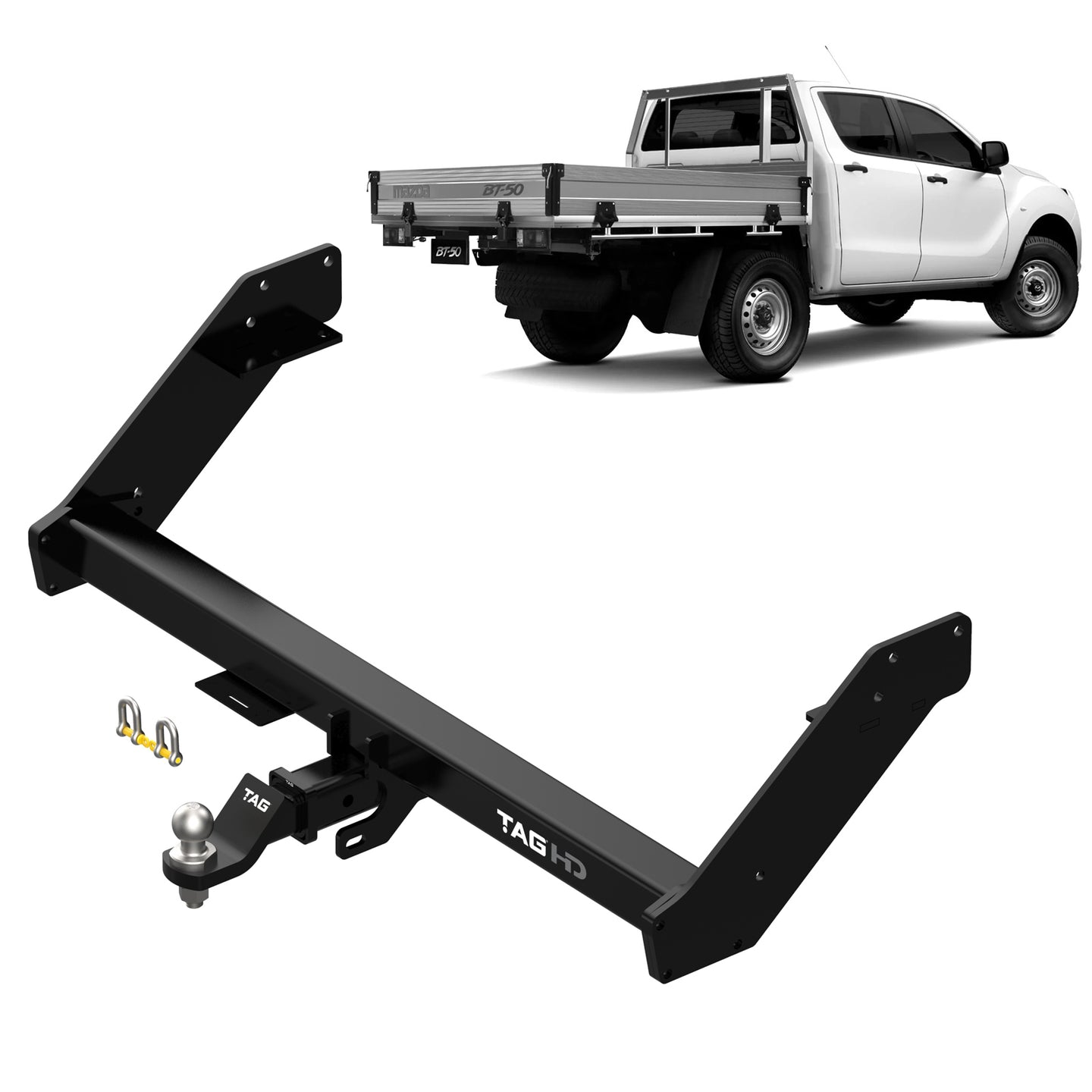

TAG Heavy Duty Extended 3-Piece Towbar

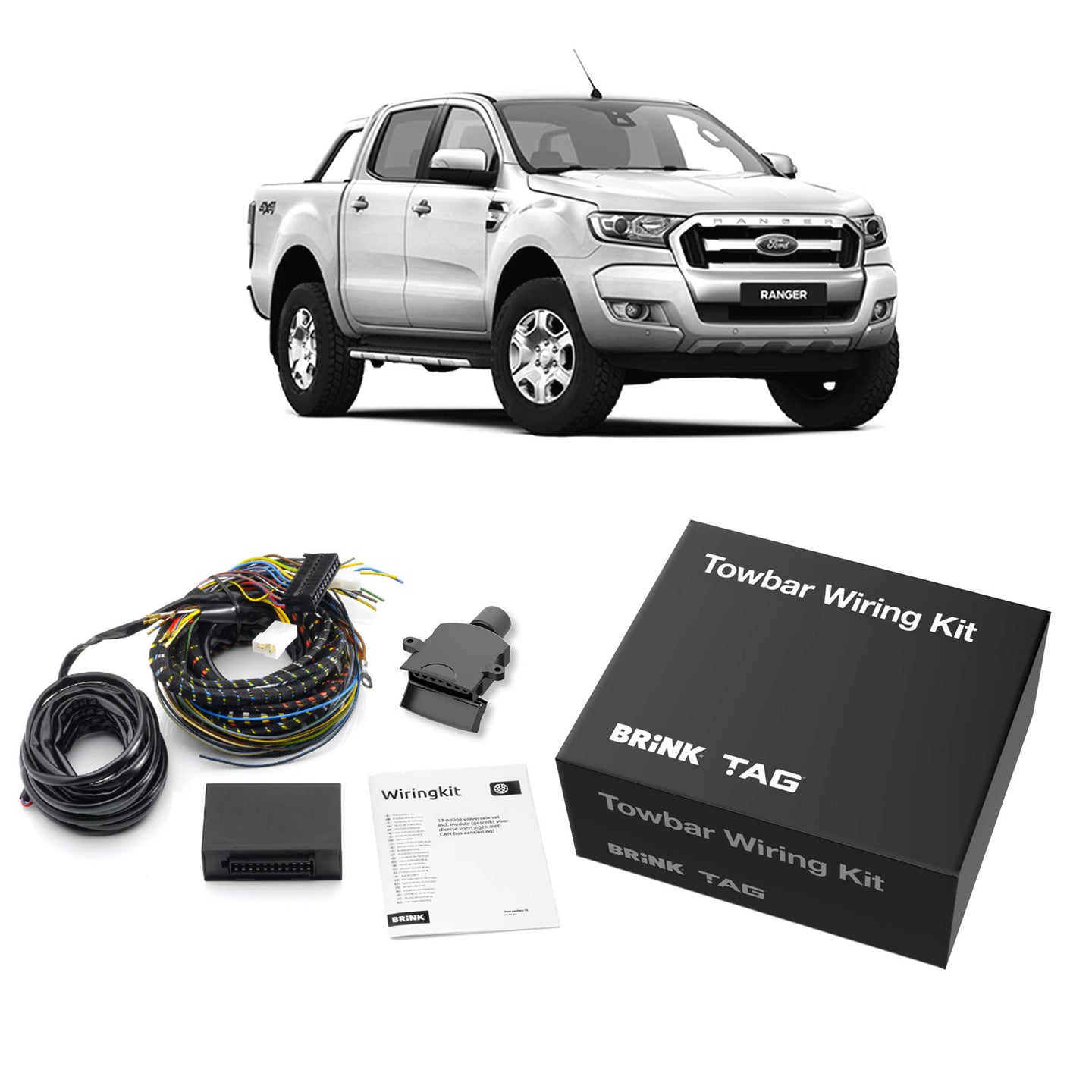

TAG Direct Fit Wiring Harness with 7 Pin Flat plug

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

Extended, 3-Piece Design (Suits Extended Tray or Canopy)
Class 4 Towbar - 50mm Square Hitch Receiver
Durable Powder Coated Finish
TAG Limited Lifetime Warranty
Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Plug connection 7 Pin Flat Socket
Wiring option Direct Fit CAN-Bus Harness suits Vehicles with Black CAN Connector
Fog cut off Automatic
Diagnostic coding Optional
Reverse sensor cut off Not Applicable
Fitting time [min.] 60 (BR-712205)
Fitting time [min.] 30 (T7F706)
Towbar class Heavy Duty (Extended 3-Piece)
Towbar capacity [kg] 3500
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4045
Coating Powder Coated
Bumper removed during fitment No
Bumper cut out required No
Exposure Exposed
Fits vehicle year from (month) 09
Ball weight [kg] 350

Vehicle Applications

Ford Ranger (08/2011 - 06/2022)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
FORD	RANGER	11/2011	05/2022	Cab Chassis	PX, PX2, PX3	P5-AT \| 3.2L \| Diesel	TDdi	4WD
FORD	RANGER	09/2011	06/2022	Cab Chassis	PX, PX2, PX3	P5AT \| 3.2L \| Diesel	SUPER CAB XL	Automatic/Manual 4WD
FORD	RANGER	09/2011	03/2022	Cab Chassis	PX, PX2, PX3	P5AT \| 3.2L \| Diesel	XL, XL PLUS	Manual 4WD
FORD	RANGER	04/2012	07/2017	Cab Chassis	PX	P5AT \| 3.2L \| Diesel	XL	Automatic/Manual 4WD
FORD	RANGER	03/2014	03/2015	Cab Chassis	PX	P5AT \| 3.2L \| Diesel	XL PLUS	Automatic 4WD
FORD	RANGER	03/2014	04/2015	Cab Chassis	PX	P5AT \| 3.2L \| Diesel	XL PLUS	Automatic 4WD
FORD	RANGER	01/2014	01/2015	Cab Chassis	PX	P5AT \| 3.2L \| Diesel	SUPER CAB XL	Manual 4WD
FORD	RANGER	11/2011	05/2015	Cab Chassis	PX	P5AT \| 3.2L \| Diesel	SUPER CAB XL	Manual 4WD
FORD	RANGER	11/2011	06/2015	Cab Chassis	PX	P4-AT \| 2.2L \| Diesel	TDdi	4WD
FORD	RANGER	11/2011	06/2015	Cab Chassis	PX	P4-AT \| 2.2L \| Diesel	TDdi	RWD
FORD	RANGER	11/2011	05/2015	Cab Chassis	PX	P4AT \| 2.2L \| Diesel	XL HIGHRIDER	RWD
FORD	RANGER	09/2011	07/2015	Cab Chassis	PX	P4AT \| 2.2L \| Diesel	SUPER CAB XL HIRIDER	Manual RWD
FORD	RANGER	09/2011	07/2015	Cab Chassis	PX	P4AT \| 2.2L \| Diesel	XL	Manual 4WD
FORD	RANGER	09/2011	07/2015	Cab Chassis	PX	P4AT \| 2.2L \| Diesel	XL	Manual RWD
FORD	RANGER	09/2011	07/2015	Cab Chassis	PX	P4AT \| 2.2L \| Diesel	XLT HI-RIDER	Automatic/Manual RWD
FORD	RANGER	08/2011	07/2015	Cab Chassis	PX	P4AT \| 2.2L \| Diesel	XL	Manual 4WD
FORD	RANGER	08/2011	07/2015	Cab Chassis	PX	P4AT \| 2.2L \| Diesel	XL	Manual RWD
FORD	RANGER	08/2011	05/2015	Cab Chassis	PX	DPAT \| 2.5L \| Petrol	XL	Manual RWD
FORD	RANGER	08/2011	05/2015	Cab Chassis	PX	DPAT \| 2.5L \| Petrol	XL	Manual RWD
