TAG Heavy Duty (Extended) Towbar and Direct Fit Wiring Harness for Ford Ranger PX2,PX3 (06/2015 - 05/2022) - Cab Chassis models

SKU T7F706-K102
$1,466.98
$1,173.58

Important Note

Includes Direct Fit CANbus Wiring Harness to suit PX2 & PX3 Models from 06/2015 to 05/2022

$1,466.98
$1,173.58

You may also need

Product Attributes
  • Style 7 Pin Flat
  • Type Plugs & Sockets
  • Fitting time [min.] 60 (BR-712365)
  • Fitting time [min.] 30 (T7F706)
  • Wiring option CANBUS Direct Fit Wiring
  • Diagnostic coding Optional For All Features
  • Reverse sensor cut off Coding required
  • Fog cut off Automatic

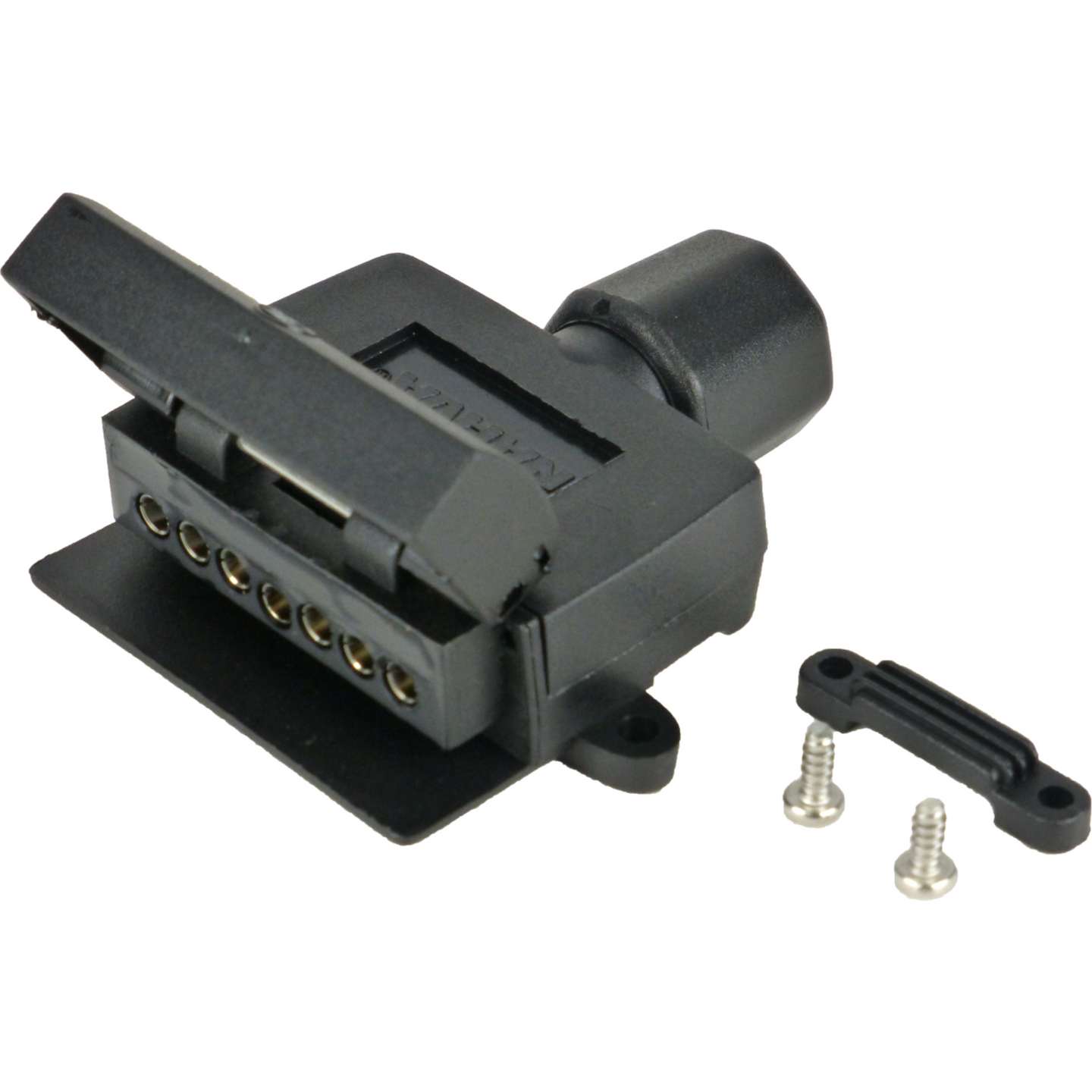

  • Plug connection 7 Pin Flat Socket
  • Towbar class Heavy Duty (Extended 3-Piece)
  • Towbar capacity [kg] 3500
  • Hitch type 50mm Square Hitch Receiver
  • Tow ball mount L4045
  • Coating Powder Coated
  • Bumper removed during fitment No
  • Bumper cut out required No
  • Exposure Exposed
  • Fits vehicle year from (month) 09
  • Ball weight [kg] 350
Assembly Components

Premium Powder Coated 3-Piece Heavy Duty Extended Towbar and Direct Fit Wiring Harness To Suit Cab Chassis Models With Extended Tray or Canopy

This Kit Includes:

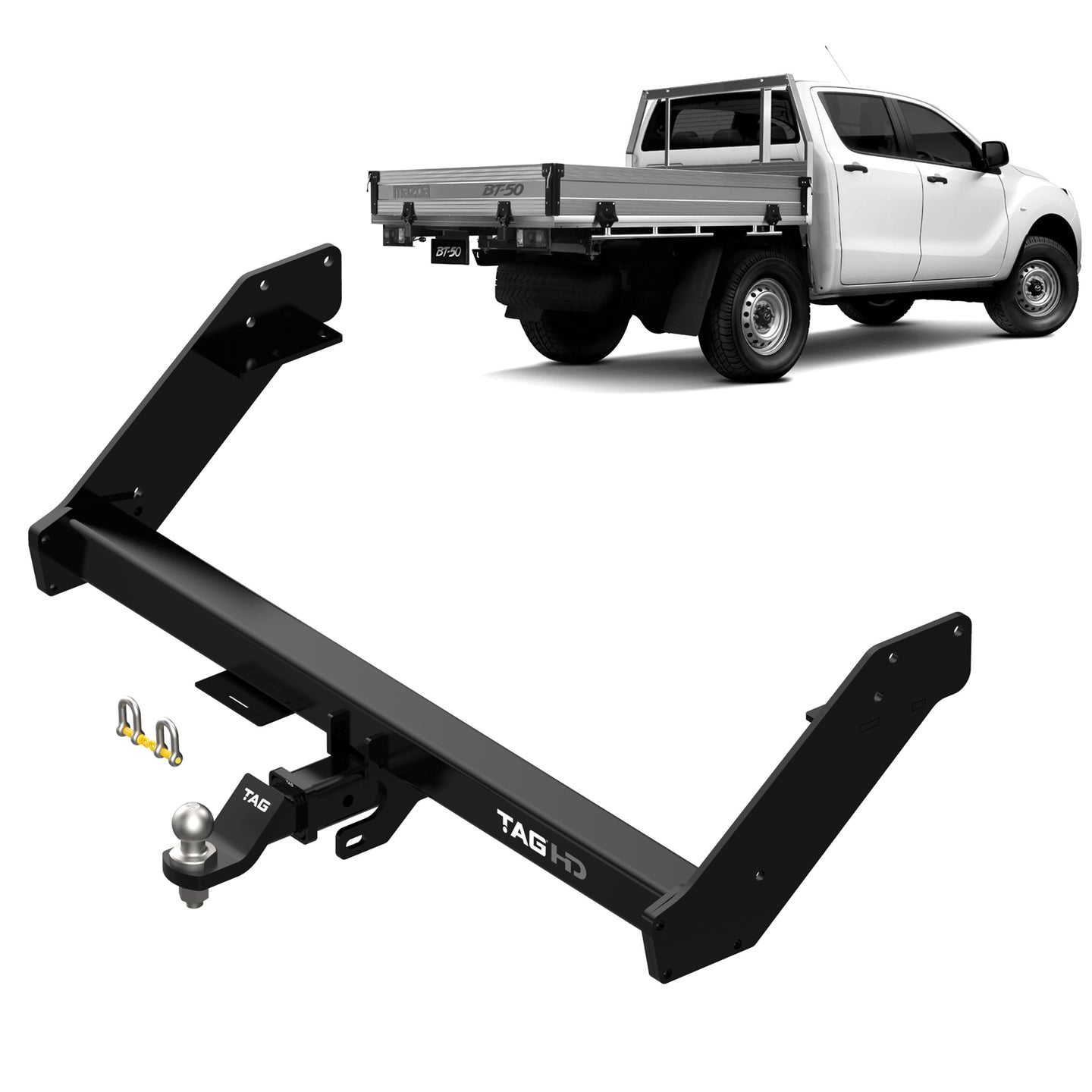

  • TAG Heavy Duty Extended 3-Piece Towbar

  • BRINK Direct Fit CANbus Wiring Harness with 7 Pin Flat plug

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

  • Extended, 3-Piece Design (Suits Extended Tray or Canopy)

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • Durable Powder Coated Finish

  • TAG Limited Lifetime Warranty

  • Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

Brink Wiring Harness:

No special tools or soldering required.

  • Compatible with Trailer Stability Programming (TSP), Lane Collision Avoidance systems, Park Distance Controls (PDC).

  • Does not interfere with brake lights, turning signals and live wire connection.

  • TAG Limited Lifetime Warranty.

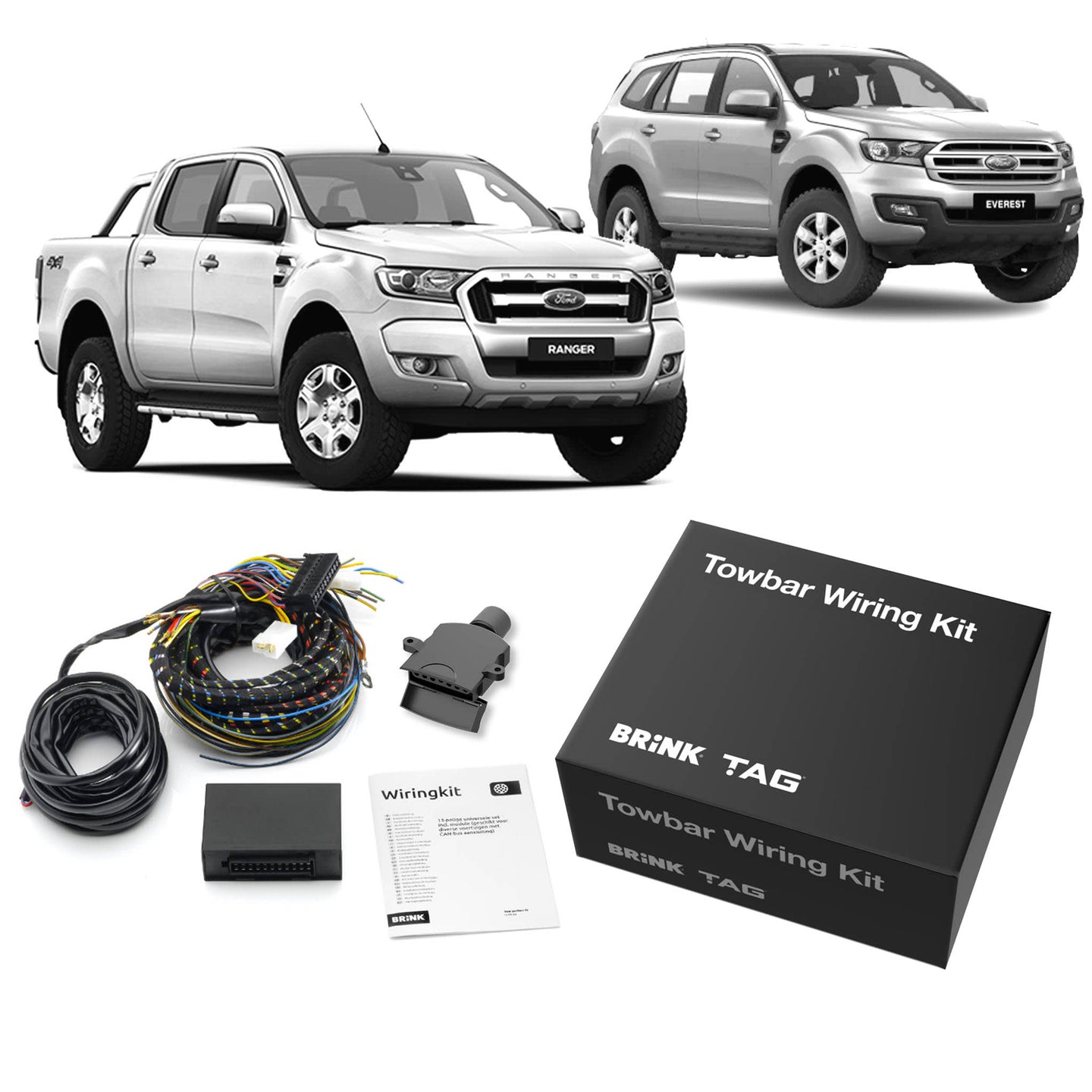

  • Each wiring kit includes harness, ECU module, 7-Pin Flat Socket, installation instructions and connection guide.

Full trailer light functionality and no fault codes without coding tool. For wiring harness to work with all factory sensors and features coding is required.

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Vehicle Applications

Ford Ranger (09/2011 - 06/2022)

Make Model From To Body Series Engine Variant Drivetrain
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P4AT | 2.2L | Diesel XL Double Cab 4WD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P5AT | 3.2L | Diesel XL Double Cab 4WD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P4AT | 2.2L | Diesel XL Hi-Rider RWD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P4AT | 2.2L | Diesel XL Hi-Rider Double Cab RWD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P4AT | 2.2L | Diesel XL Hi-Rider Super Cab RWD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P4AT | 2.2L | Diesel XL Low Rider Single Cab RWD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P5AT | 3.2L | Diesel XL Single Cab 4WD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P5AT | 3.2L | Diesel XL Super Cab 4WD
FORD RANGER 07/2016 05/2022 Cab Chassis PX (PX2, PX3) P5AT | 3.2L | Diesel XL, SPORT Automatic/Manual 4WD
FORD RANGER 08/2015 05/2022 Cab Chassis PX2 P4AT | 2.2L | Diesel SUPER CAB XL HIRIDER Manual RWD
FORD RANGER 08/2015 05/2022 Cab Chassis PX (PX2, PX3) P4AT | 2.2L | Diesel XL Manual 4WD
FORD RANGER 08/2015 05/2022 Cab Chassis PX (PX2, PX3) P4AT | 2.2L | Diesel XL Manual RWD
FORD RANGER 06/2015 05/2022 Cab Chassis PX (PXII, PXIII) P4-AT | 2.2L | Diesel TDdi AWD
FORD RANGER 06/2015 05/2022 Cab Chassis PX (PXII, PXIII) P4-AT | 2.2L | Diesel TDdi RWD
FORD RANGER 11/2011 05/2022 Cab Chassis PX (PX, PXII, PXIII) P5-AT | 3.2L | Diesel TDdi 4WD
FORD RANGER 09/2011 06/2022 Cab Chassis PX (PX1, PX2, PX3) P5AT | 3.2L | Diesel SUPER CAB XL Automatic/Manual 4WD
FORD RANGER 09/2011 03/2022 Cab Chassis PX (PX1, PX2, PX3) P5AT | 3.2L | Diesel XL, XL PLUS Manual 4WD
FORD RANGER 11/2011 06/2015 Cab Chassis PX P4-AT | 2.2L | Diesel TDdi RWD
