TAG Heavy Duty Towbar and Direct Fit Wiring Harness for LDV D90 (04/2020 - 12/2024)

files/T7P786_T7P786.jpg
files/unt360-4820635256234-1-21a79c7a_14a9ea36-8871-4ba5-b8fa-f8b536171b4c.jpg
files/T7P786_T7P786_T7P786_ef29695b-1a0f-4019-94d7-16e2e128e90b.jpg
files/UNT032RS_4799c2f8-af27-4ff5-ac61-05aaa3268569.png

TAG Heavy Duty Towbar and Direct Fit Wiring Harness for LDV D90 (04/2020 - 12/2024)

SKU T7P786-K201

RRP: $1,189.99

Quantity

RRP: $1,189.99

Assembly Components

Product Description

This Kit Includes:

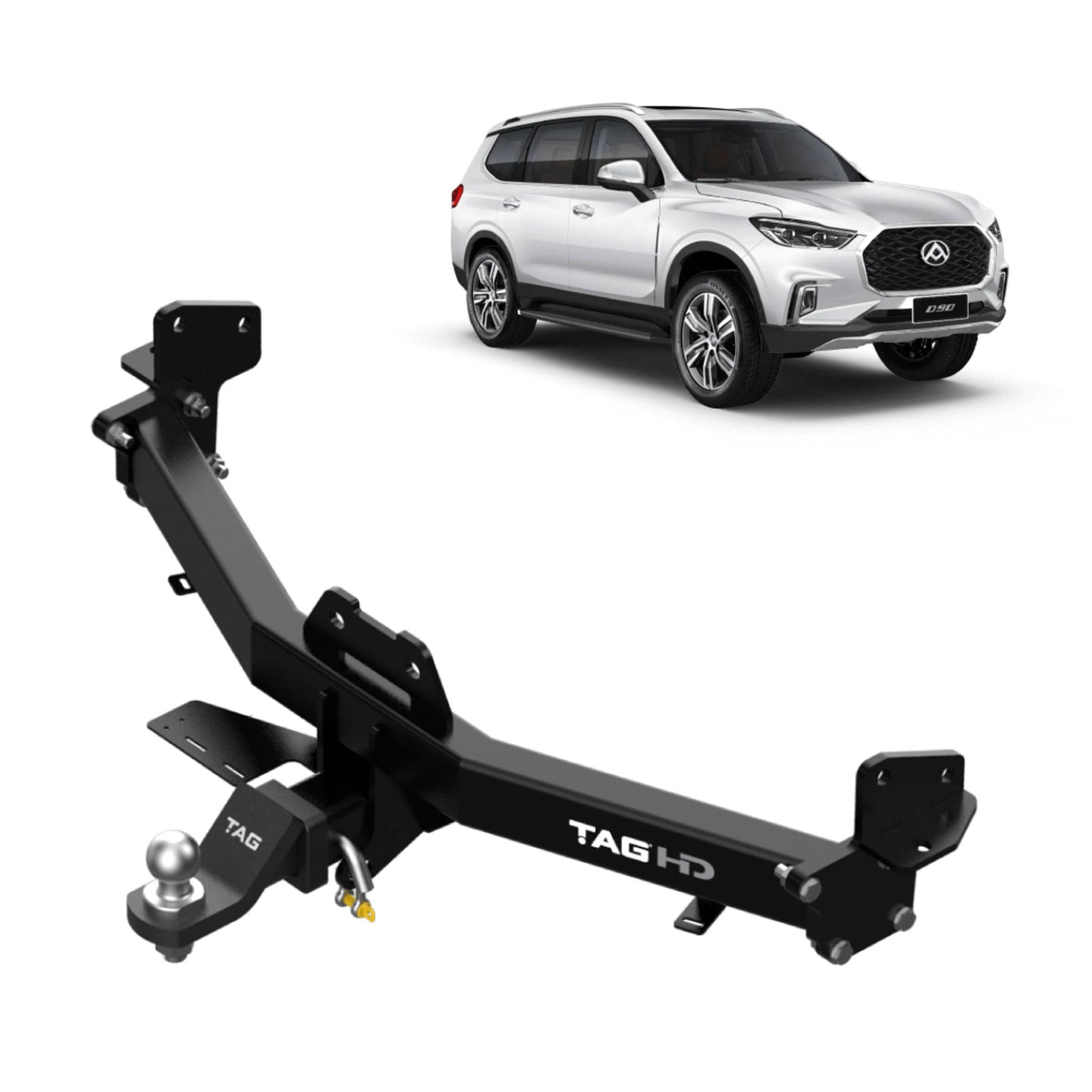

TAG Heavy Duty 3-Piece Towbar

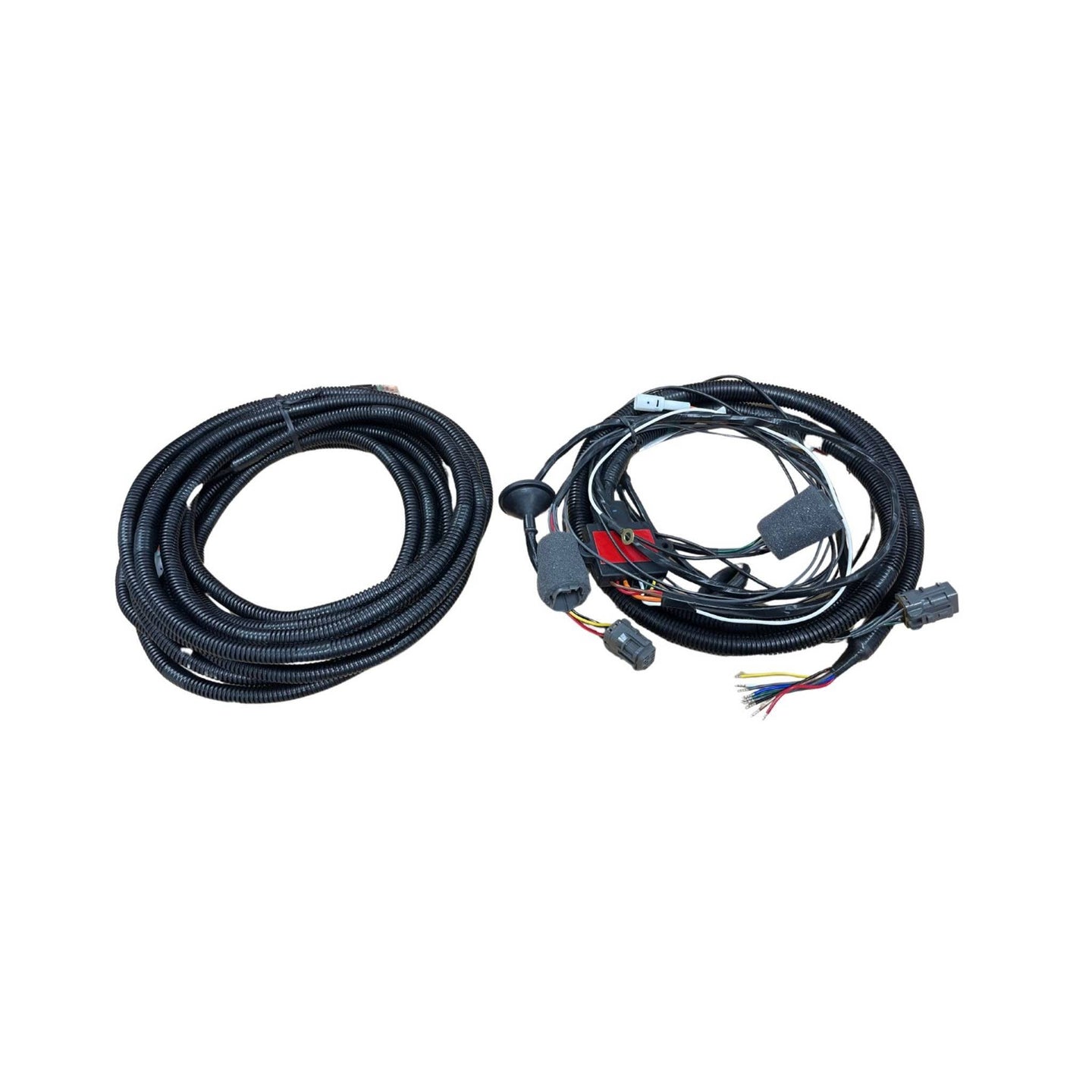

TAG Direct Fit Wiring Harness

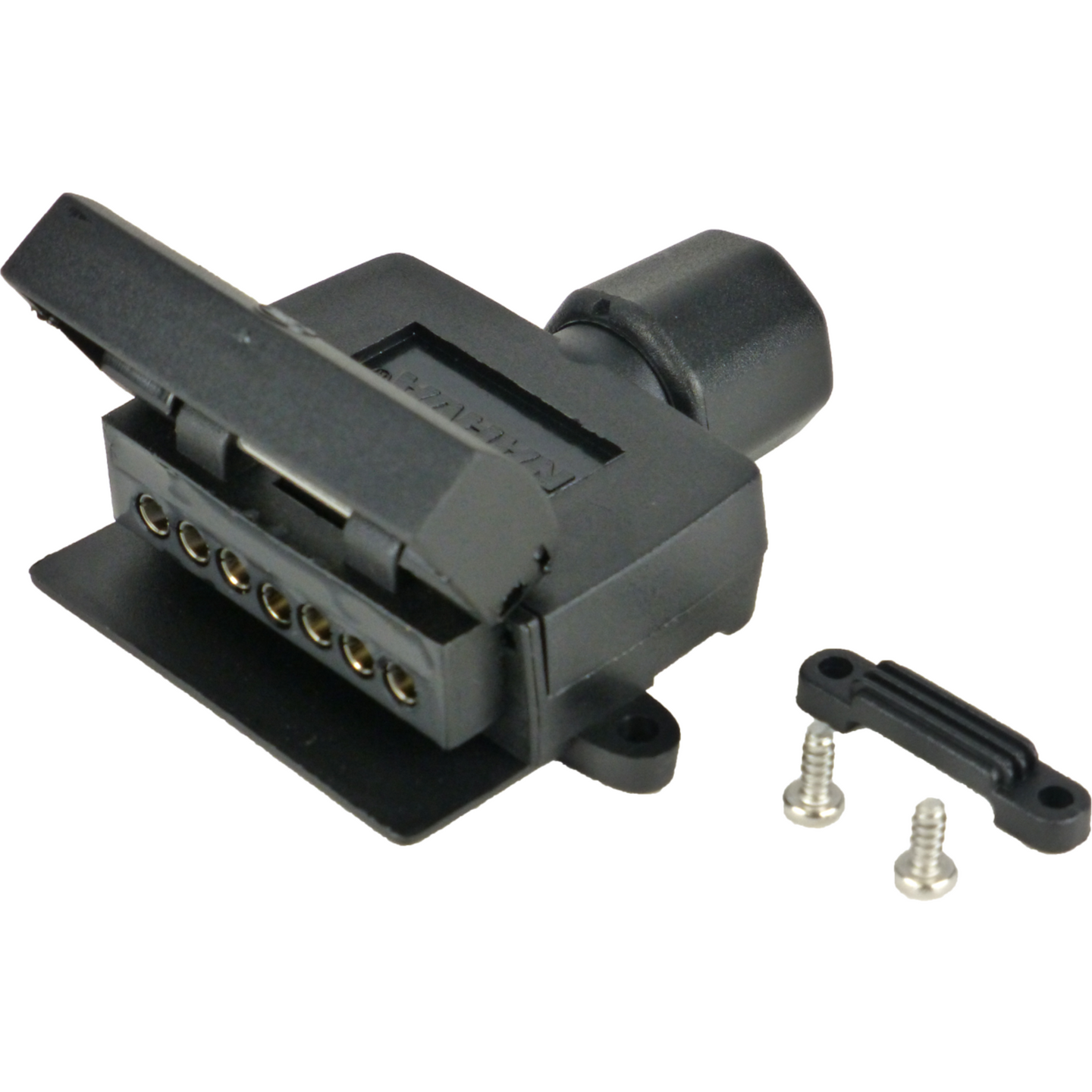

TAG 7 Pin Flat Socket - Vehicle Side

Suits petrol and diesel models

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

3-Piece Design for easier installation
Class 4 Towbar - 50mm Square Hitch Receiver
Durable Powder Coated Finish
TAG Limited Lifetime Warranty
Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Style 7 Pin Flat
Type Plugs & Sockets
Diagnostic coding No
Fitting time [min.] 60 (UNT360)
Fitting time [min.] 90 (T7P786)
Reverse sensor cut-off Via Dash
Wiring type Direct Fit
Includes trailer plug No
Reed switch Normally Closed Circuit
Towbar class Heavy Duty (3-Piece Design)
Towbar capacity [kg] 3100
Ball weight [kg] 300
Tow ball mount L4045S
Coating Powder Coated
Hitch type 50mm Square Hitch Receiver
Bumper removed during fitment Yes
Bumper cut out required Yes
Exposure Concealed

Vehicle Applications

Vehicle Applications

LDV D90 (04/2020 - 12/2024)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
LDV	D90	04/2020	12/2024	SUV	SV9A	20A4E \| 2.0L \| Petrol	-	AWD
LDV	D90	04/2020	12/2024	SUV	SV9A	20A4E \| 2.0L \| Petrol	-	RWD
LDV	D90	04/2020	12/2024	SUV	SV9A	SC20M218Q5 \| 2.0L \| Diesel	-	AWD
LDV	D90	04/2020	12/2024	Wagon	SV9A	EH1SF \| 2.0L \| Petrol	EXECUTIVE	Automatic 4WD
LDV	D90	04/2020	12/2024	Wagon	SV9A	EH1SF \| 2.0L \| Petrol	EXECUTIVE	Automatic RWD
LDV	D90	04/2020	12/2024	Wagon	SV9A	SC20M \| 2.0L \| Diesel	EXECUTIVE D20	Automatic 4WD
LDV	D90	04/2020	12/2024	Wagon	SV9A	SC20M \| 2.0L \| Diesel	EXECUTIVE D20	Automatic 4WD
