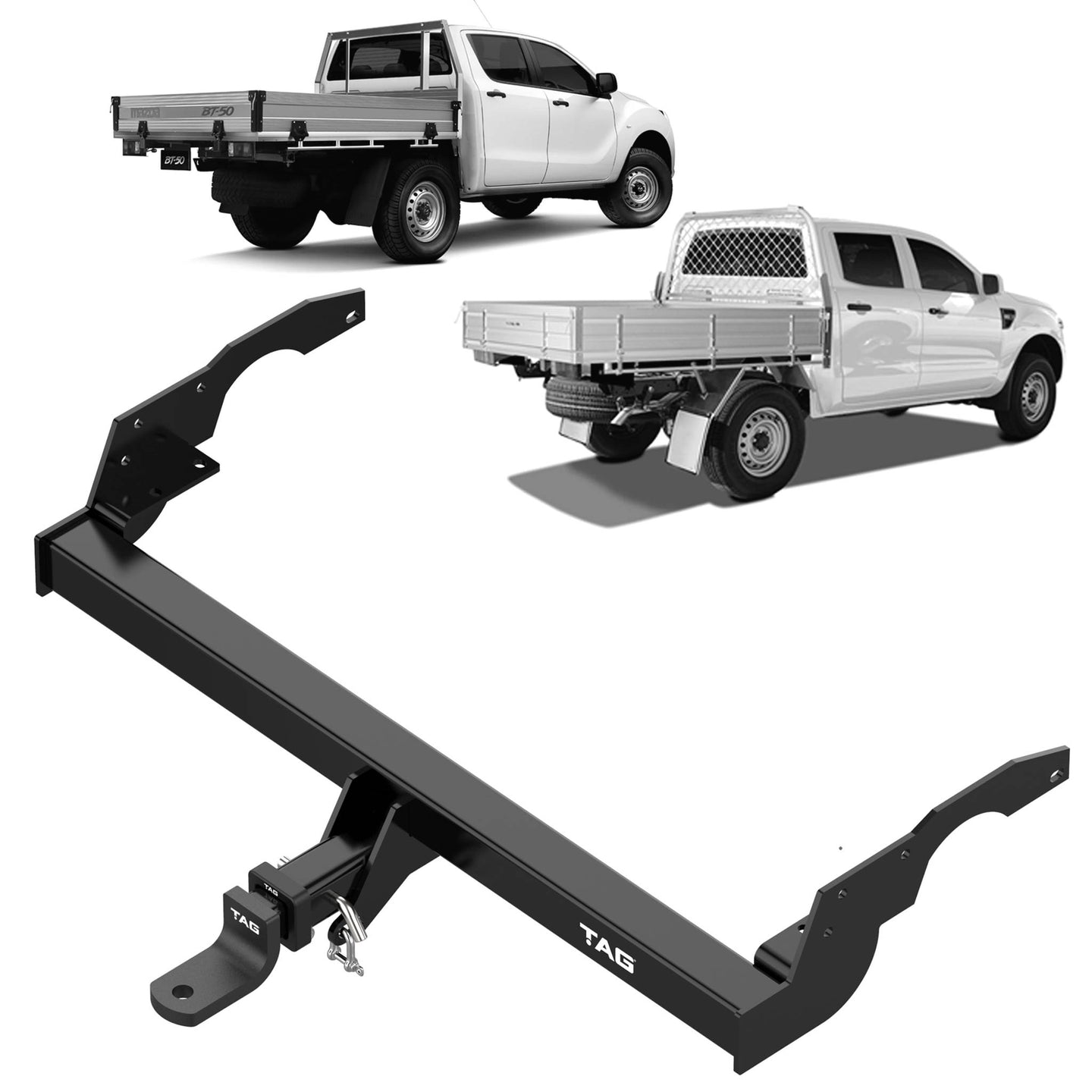

TAG Heavy Duty Towbar & Direct Fit Wiring for Ford Ranger PX2 and PX3 Cab Chassis Models (06/2015 - 06/2022)

SKU T4M577-K102

RRP: $1,237.99

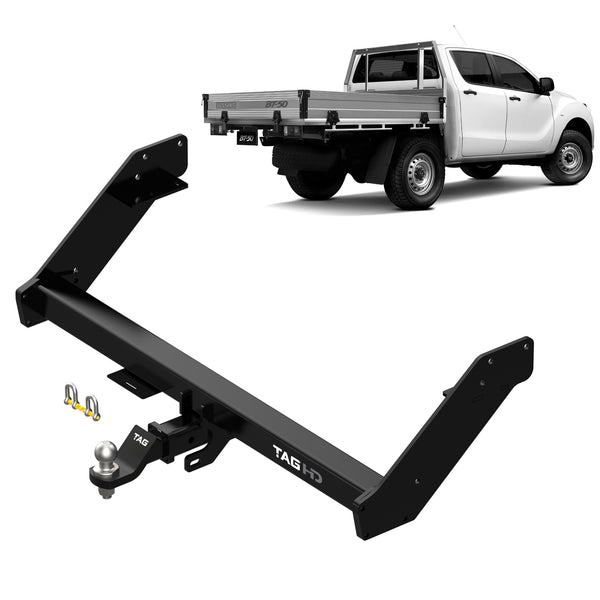

TAG Heavy Duty (Extended) Towbar and Direct Fit Wiring Harness for Ford Ranger PX2,PX3 (06/2015 - 05/2022) - Cab Chassis models

SKU: T7F706-K102

$1,466.98

alternate

Extended Towbar Kit

TAG Heavy Duty Towbar & Direct Fit Wiring Harness for Ford Ranger PX2, PX3 Cab Chassis (06/2015 - 05/2022)

SKU: T7F705-K102

$1,266.98

alternate

Premium Towbar Kit Option

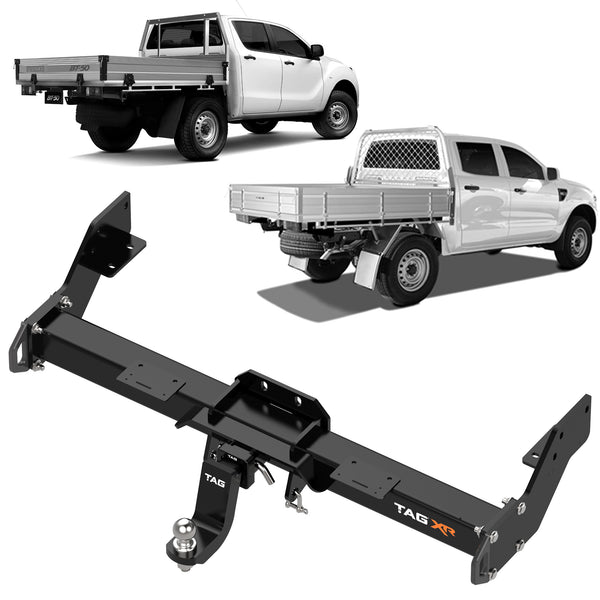

TAG Extreme Recovery Towbar & Direct Fit Wiring For Ford Ranger PX2 & PX3 Cab Chassis (08/2015 - 05/2022)

SKU: TXR804-K101

$1,756.98

alternate

Extreme Recovery Towbar Kit

Quantity

RRP: $1,237.99

Assembly Components

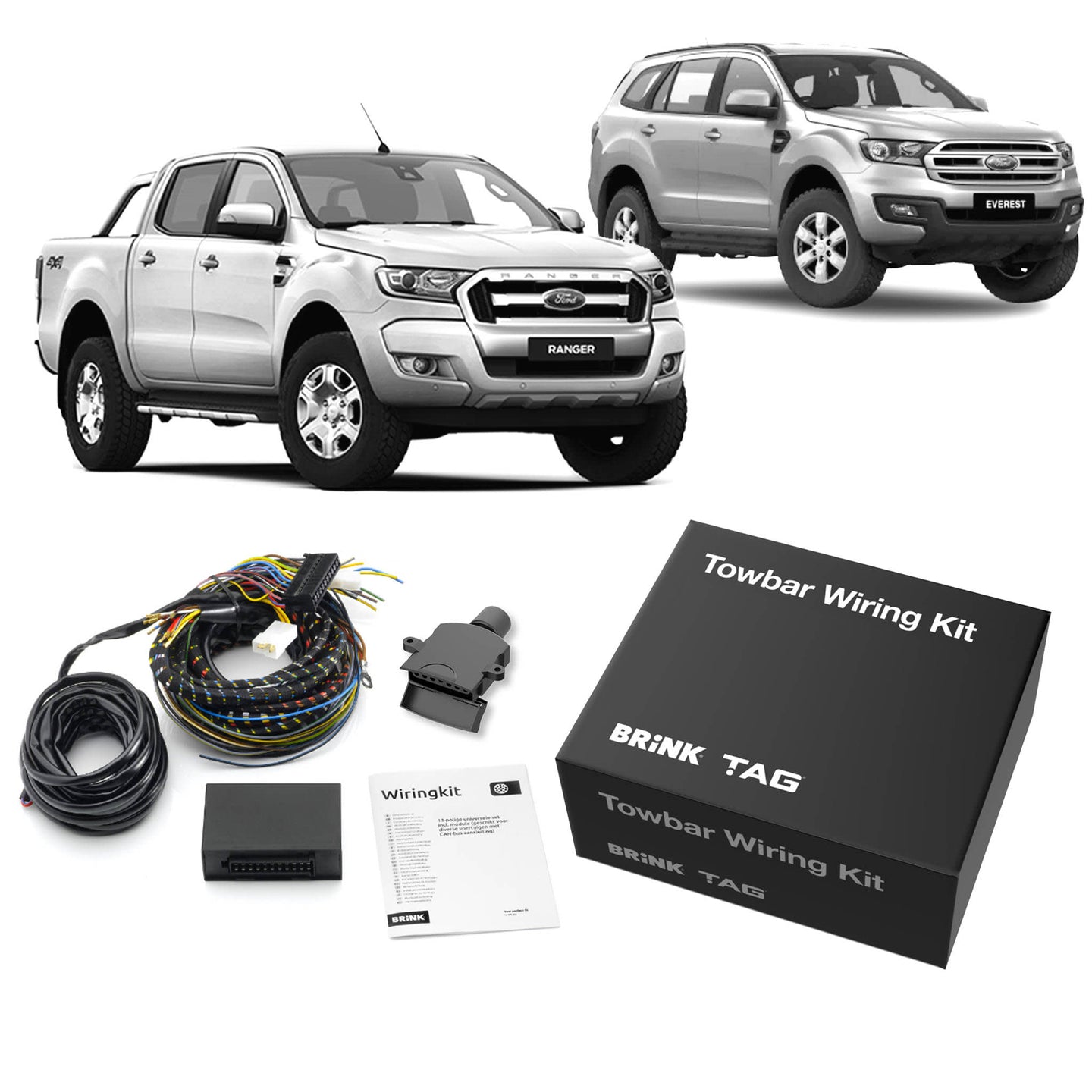

TAG Direct Fit Wiring Harness for Ford Ranger PX2 PX3 (06/2015 - 05/2022), Ranger Next Gen (06/2022 - 11/2024), Ford Everest UA/UA MkII (07/2015 - 05/2022), Volkswagen Amarok NF (12/2022- on)

BR-712365

$238.99

Product Description

Basic 1-Piece Towbar for PX2 PX3 cab chassis Rangers WITHOUT rear bumper step.

This Kit Includes:

TAG Heavy Duty Towbar
CAN-Bus Direct Fit Brink Wiring Harness with 7 Pin Plug

TAG Heavy Duty Towbars are designed and manufactured in Australia.

Utilises factory mounting points for ease of fitment
Durable Powder Coated Finish.
Class 4 Receiver - 50mm x 50mm Hitch
TAG Limited Lifetime Warranty
Towbar includes - towball, ballmount, pin & clip and dshackles
Cab Chassis Without Step - all variants

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Fitting time [min.] 60
Wiring option CANBUS Direct Fit Wiring
Diagnostic coding Optional For All Features
Reverse sensor cut off Coding required
Fog cut off Automatic
Plug connection 7 Pin Flat Socket
Towbar class Heavy Duty
Towbar capacity [kg] 3500
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4045
Coating Enamel Immersion Dipped
Fits models with rear step No
Bumper removed during fitment No
Bumper cut out required No
Exposure Exposed
Fits vehicle year from (month) 09
Ball weight [kg] 350

Vehicle Applications

Ford Ranger (06/2015 - 06/2022)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P4AT \| 2.2L \| Diesel	XL Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P5AT \| 3.2L \| Diesel	XL Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P4AT \| 2.2L \| Diesel	XL Hi-Rider	RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P4AT \| 2.2L \| Diesel	XL Hi-Rider Double Cab	RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P4AT \| 2.2L \| Diesel	XL Hi-Rider Super Cab	RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P4AT \| 2.2L \| Diesel	XL Low Rider Single Cab	RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P5AT \| 3.2L \| Diesel	XL Single Cab	4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P5AT \| 3.2L \| Diesel	XL Super Cab	4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2, PX3	P5AT \| 3.2L \| Diesel	XL, SPORT	Automatic/Manual 4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2	P4AT \| 2.2L \| Diesel	SUPER CAB XL HIRIDER	Manual RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2, PX3	P4AT \| 2.2L \| Diesel	XL	Manual 4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2, PX3	P4AT \| 2.2L \| Diesel	XL	Manual RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2, PX3	P4-AT \| 2.2L \| Diesel	TDdi	AWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2, PX3	P4-AT \| 2.2L \| Diesel	TDdi	RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX, PX2, PX3	P5-AT \| 3.2L \| Diesel	TDdi	4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX, PX2, PX3	P5AT \| 3.2L \| Diesel	SUPER CAB XL	Automatic/Manual 4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX, PX2, PX3	P5AT \| 3.2L \| Diesel	XL, XL PLUS	Manual 4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX	P4-AT \| 2.2L \| Diesel	TDdi	RWD
