TAG Heavy Duty Towbar & Direct Fit Wiring Harness for Ford Ranger PX2, PX3 Cab Chassis (06/2015 - 05/2022)

SKU T7F705-K102

RRP: $1,266.98

Quantity

RRP: $1,266.98

Assembly Components

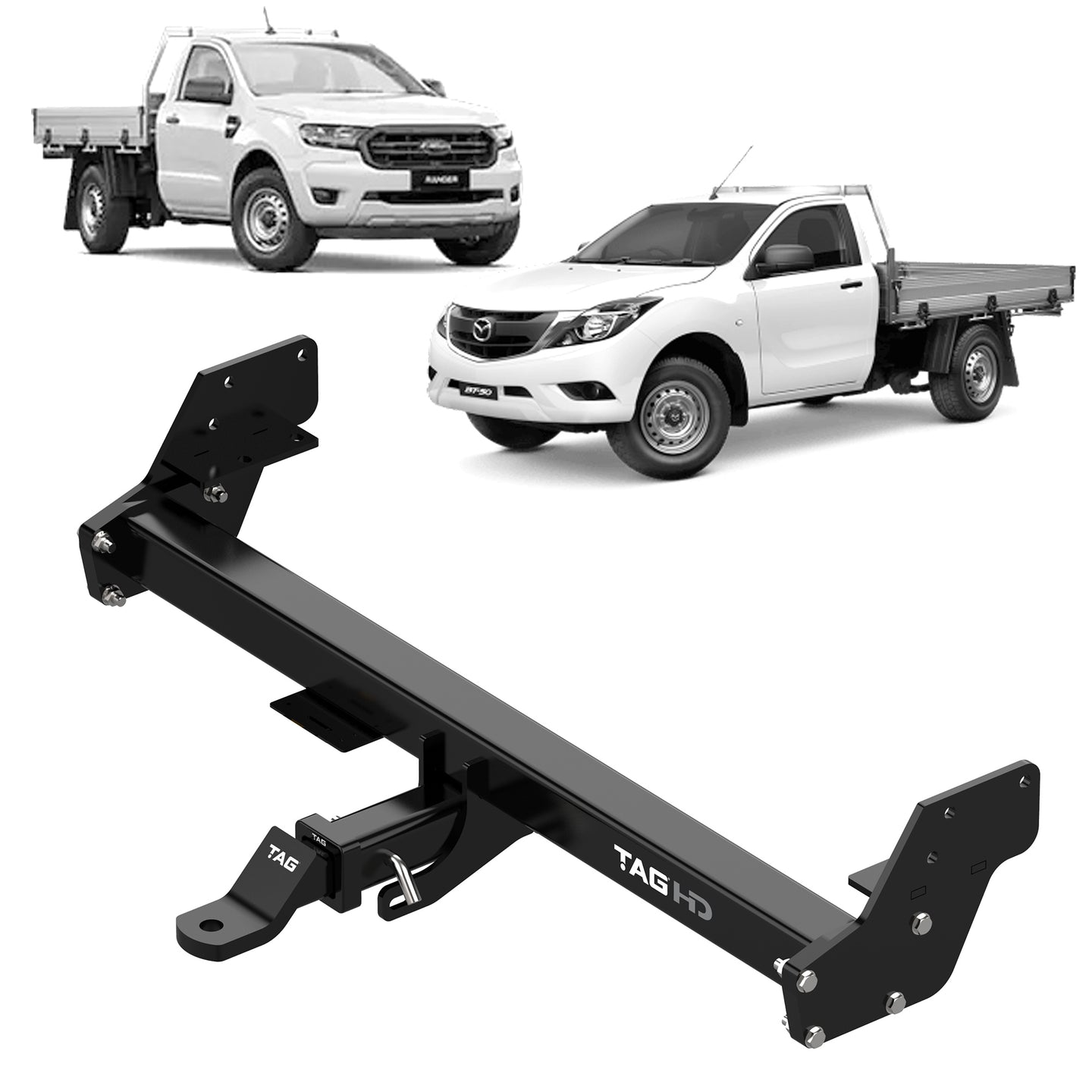

TAG Heavy Duty Towbar for Ford Ranger (09/2011 - 05/2022), Mazda BT-50 (09/2011 - 10/2020)

T7F705

$999.00

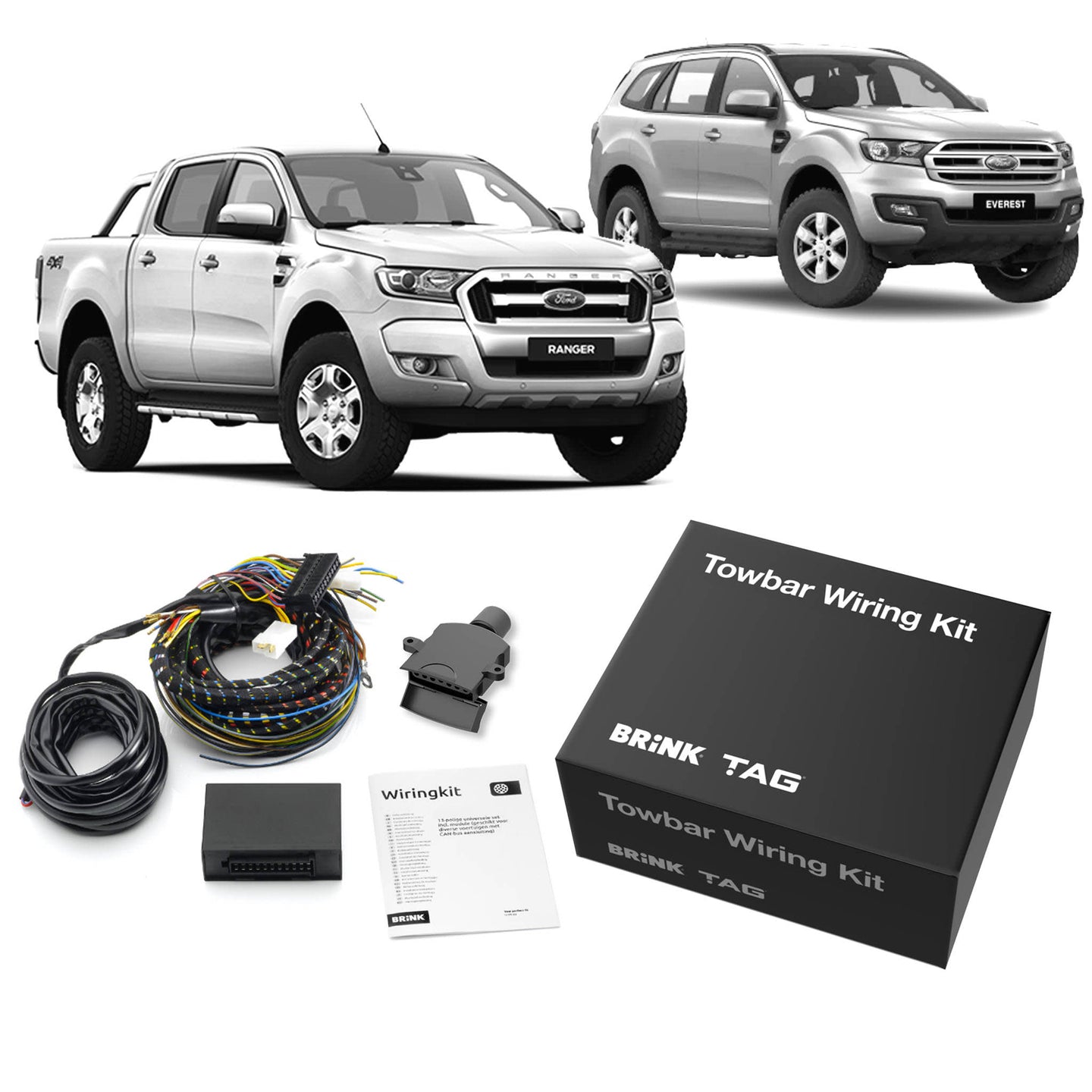

TAG Direct Fit Wiring Harness for Ford Ranger PX2 PX3 (06/2015 - 05/2022), Ranger Next Gen (06/2022 - 11/2024), Ford Everest UA/UA MkII (07/2015 - 05/2022), Volkswagen Amarok NF (12/2022- on)

BR-712365

$238.99

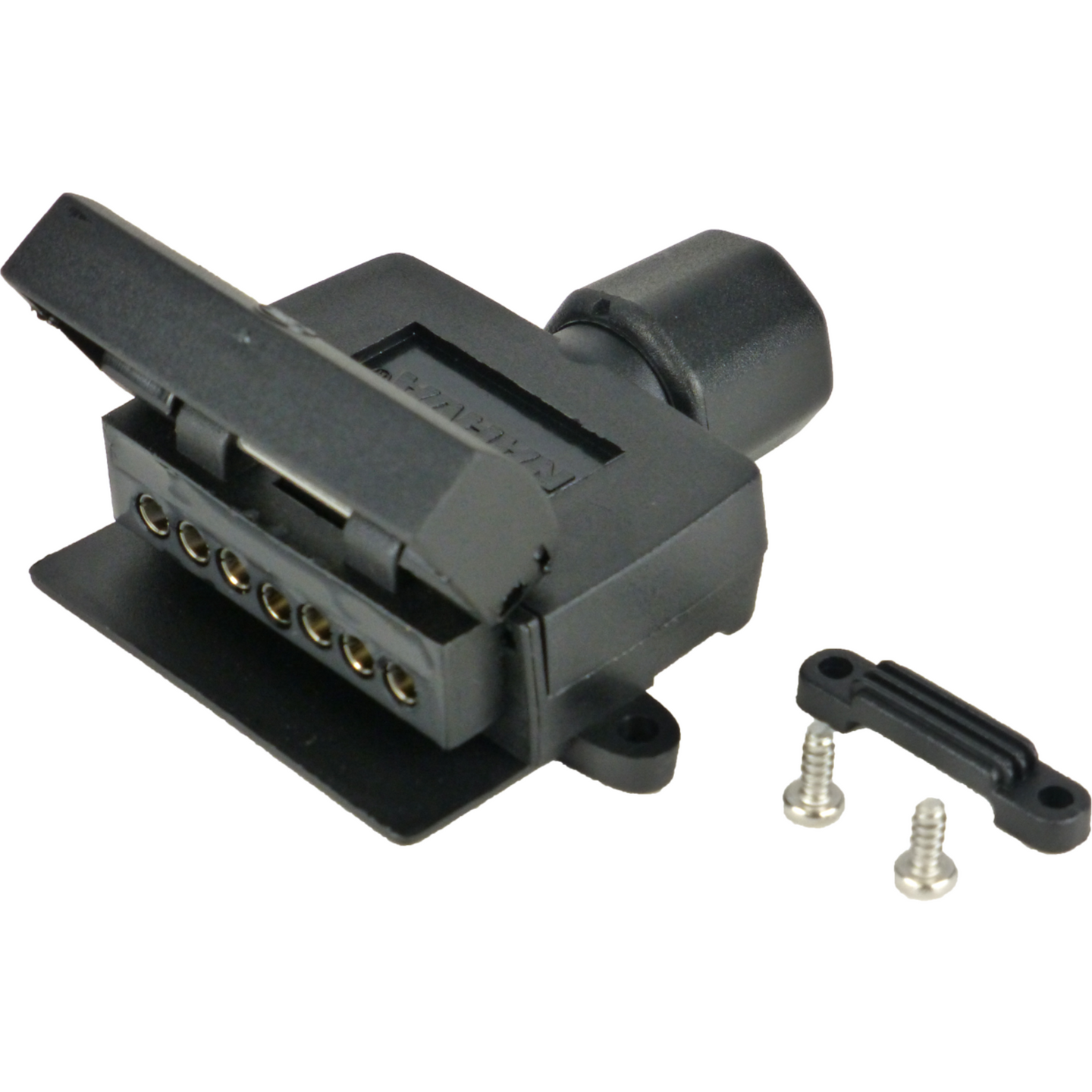

TAG 7 Pin Flat Socket with Reed Switch (Closed Circuits)

UNT032RS

$25.00

Product Description

Premium Powder Coated 3-Piece Towbar and Direct Fit Wiring Harness to suit Ford Ranger PX2 & PX3 Cab Chassis vehicles

This Kit Includes:

TAG Heavy Duty 3-Piece Towbar
TAG Direct Fit CANbus Wiring Harness with 7 Pin Flat plug

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

3-Piece Design for easier installation
Class 4 Towbar - 50mm Square Hitch Receiver
Durable Powder Coated Finish
TAG Limited Lifetime Warranty
Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Style 7 Pin Flat
Type Plugs & Sockets
Fitting time [min.] 60 (BR-712365)
Fitting time [min.] 30 (T7F705)
Wiring option CANBUS Direct Fit Wiring
Diagnostic coding Optional For All Features
Reverse sensor cut off Coding required
Fog cut off Automatic
Plug connection 7 Pin Flat Socket
Towbar class Heavy Duty (3-Piece Design)
Towbar capacity [kg] 3500
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4045
Coating Powder Coated
Fits models with rear step No
Bumper removed during fitment No
Bumper cut out required No
Exposure Exposed
Fits vehicle year from 2011
Fits vehicle year from (month) 09
Ball weight [kg] 350

Vehicle Applications

Ford Ranger (06/2015 - 06/2022)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P5AT \| 3.2L \| Diesel	XL Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P4AT \| 2.2L \| Diesel	XL Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P4AT \| 2.2L \| Diesel	XL Hi-Rider	RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P4AT \| 2.2L \| Diesel	XL Hi-Rider Double Cab	RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P4AT \| 2.2L \| Diesel	XL Hi-Rider Super Cab	RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P4AT \| 2.2L \| Diesel	XL Low Rider Single Cab	RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P5AT \| 3.2L \| Diesel	XL Single Cab	4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX3	P5AT \| 3.2L \| Diesel	XL Super Cab	4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2, PX3	P5AT \| 3.2L \| Diesel	XL, SPORT	Automatic/Manual 4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2	P4AT \| 2.2L \| Diesel	SUPER CAB XL HIRIDER	Manual RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2, PX3	P4AT \| 2.2L \| Diesel	XL	Manual 4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2, PX3	P4AT \| 2.2L \| Diesel	XL	Manual RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2, PX3	P4-AT \| 2.2L \| Diesel	TDdi	AWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX2, PX3	P4-AT \| 2.2L \| Diesel	TDdi	RWD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX, PX2, PX3	P5-AT \| 3.2L \| Diesel	TDdi	4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX, PX2, PX3	P5AT \| 3.2L \| Diesel	SUPER CAB XL	Automatic/Manual 4WD
FORD	RANGER	06/2015	06/2022	Cab Chassis	PX, PX2, PX3	P5AT \| 3.2L \| Diesel	XL, XL PLUS	Manual 4WD
