TAG Heavy Duty Towbar & Direct Fit Wiring Harness for Hyundai IMAX (02/2008 - 06/2021), ILoad (02/2008 - 06/2021)

SKU T4Z542-K201

RRP: $921.68

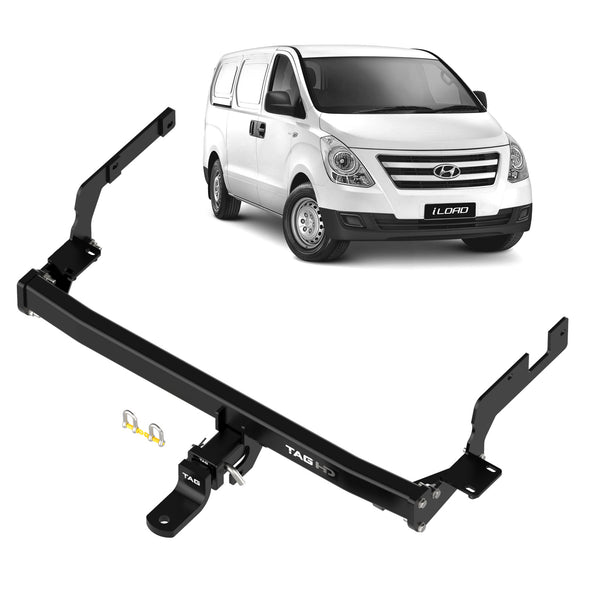

TAG Heavy Duty Towbar & Direct Fit Wiring for Hyundai ILoad (02/2008 - 06/2021), IMAX (02/2008 - 06/2021)

SKU: T7Z726-K201

$921.68

alternate

Premium Towbar Kit

TAG Rear Step & Towbar for Hyundai ILoad / IMax (02/2008 - 06/2021)

SKU: T7Z737-K010

$1,893.99

alternate

Towbar and Step

Quantity

Assembly Components

Product Description

This Kit Includes:

TAG Heavy Duty Towbar
TAG Direct Fit Wiring Harness
TAG 7 Pin Flat Socket - Vehicle Side

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

Factory Mounting Points for ease of fitment
Durable Enamel Immersion Dipped finish.
Class 4,50mm x 50mm Hitch Receiver
TAG Limited Lifetime Warranty
Towbar includes - Tow Ball, Tow Ball Mount, Hitch Pin & R-Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Style 7 Pin Flat
Type Plugs & Sockets
Reverse sensor cut off Not Applicable
Diagnostic coding Not Required
Fog cut off Not Applicable
Wiring option Direct Fit Wiring Harness
Fitting time [min.] 45 (UNT284)
Fitting time [min.] 60 (T4Z542)
Towbar class Heavy Duty
Towbar capacity [kg] 2000
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4120
Coating Enamel Immersion Dipped
Bumper removed during fitment Yes
Bumper cut out required Yes
Exposure Concealed
Ball weight [kg] 150

Vehicle Applications

Hyundai IMAX (02/2008 - 10/2021)

Make	Model	From	To	Body	Generation	Chassis	Engine	Variant	Drivetrain
HYUNDAI	iMAX	02/2008	10/2021	Bus	TQ	-	G4KG \| 2.4L \| Petrol	-	Automatic RWD
HYUNDAI	iMAX	02/2008	10/2021	Bus	TQ	-	D4CB \| 2.5L \| Diesel	CRDi	RWD
HYUNDAI	iMAX	02/2008	10/2021	Bus	TQ	-	D4CB \| 2.5L \| Diesel	CRDI	RWD
HYUNDAI	iMAX	02/2008	10/2021	Bus	TQ	-	D4CB \| 2.5L \| Diesel	CRDi	RWD
HYUNDAI	iMAX	02/2008	10/2021	Bus	TQ	-	D4CB \| 2.5L \| Diesel	-	RWD
HYUNDAI	iMAX	02/2008	10/2021	Bus	TQ	-	D4CB \| 2.5L \| Diesel	-	Automatic/Manual RWD
HYUNDAI	iMAX	02/2008	10/2021	Bus	TQ	-	G4KC, G4KG \| 2.4L \| Petrol	i	RWD
HYUNDAI	iMAX	02/2008	10/2021	Bus	TQ	-	D4CB \| 2.5L \| Diesel	-	Automatic/Manual RWD

Hyundai ILoad (02/2008 - 10/2021)

Make	Model	From	To	Body	Generation	Chassis	Engine	Variant	Drivetrain
HYUNDAI	iLoad	02/2012	10/2021	Van	TQ	-	D4CB \| 2.5L \| Diesel	CRDi	RWD
HYUNDAI	iLoad	02/2008	10/2021	Van	TQ	-	D4CB \| 2.5L \| Diesel	CRDi	RWD
HYUNDAI	iLoad	01/2012	04/2018	Van	TQ	-	D4CB \| 2.5L \| Diesel	-	RWD
HYUNDAI	iLoad	01/2012	01/2016	Van	TQ	-	D4CB \| 2.5L \| Diesel	-	Automatic/Manual RWD
HYUNDAI	iLoad	02/2008	11/2016	Van	TQ	-	G4KC, G4KG \| 2.4L \| Petrol	-	RWD
HYUNDAI	iLoad	01/2009	08/2012	Van	TQ	-	D4CB \| 2.5L \| Diesel	-	Automatic/Manual RWD
HYUNDAI	iLoad	02/2008	12/2009	Van	TQ	-	G4KG \| 2.4L \| Petrol	-	Automatic/Manual RWD
HYUNDAI	iLoad	02/2008	12/2009	Van	TQ	-	D4CB \| 2.5L \| Diesel	-	Automatic/Manual RWD
