TAG Heavy Duty Towbar & Direct Fit Wiring Harness for Hyundai Staria Van (01/2021 - on)

files/T7Z828_2beb59ee-feba-410c-9b1a-92f04d0c8ce0.jpg
files/unt372-4824991896548-1-c6d5bed8_1d001ad1-2447-4be6-9b36-40ce67d9c1d8.jpg
files/1833865192065_b901ddb3-7976-4ebf-ac5f-0aaa97b7a37e.png

TAG Heavy Duty Towbar & Direct Fit Wiring Harness for Hyundai Staria Van (01/2021 - on)

SKU T7Z828-K201

RRP: $1,519.69

Quantity

Assembly Components

Product Description

This Kit Includes:

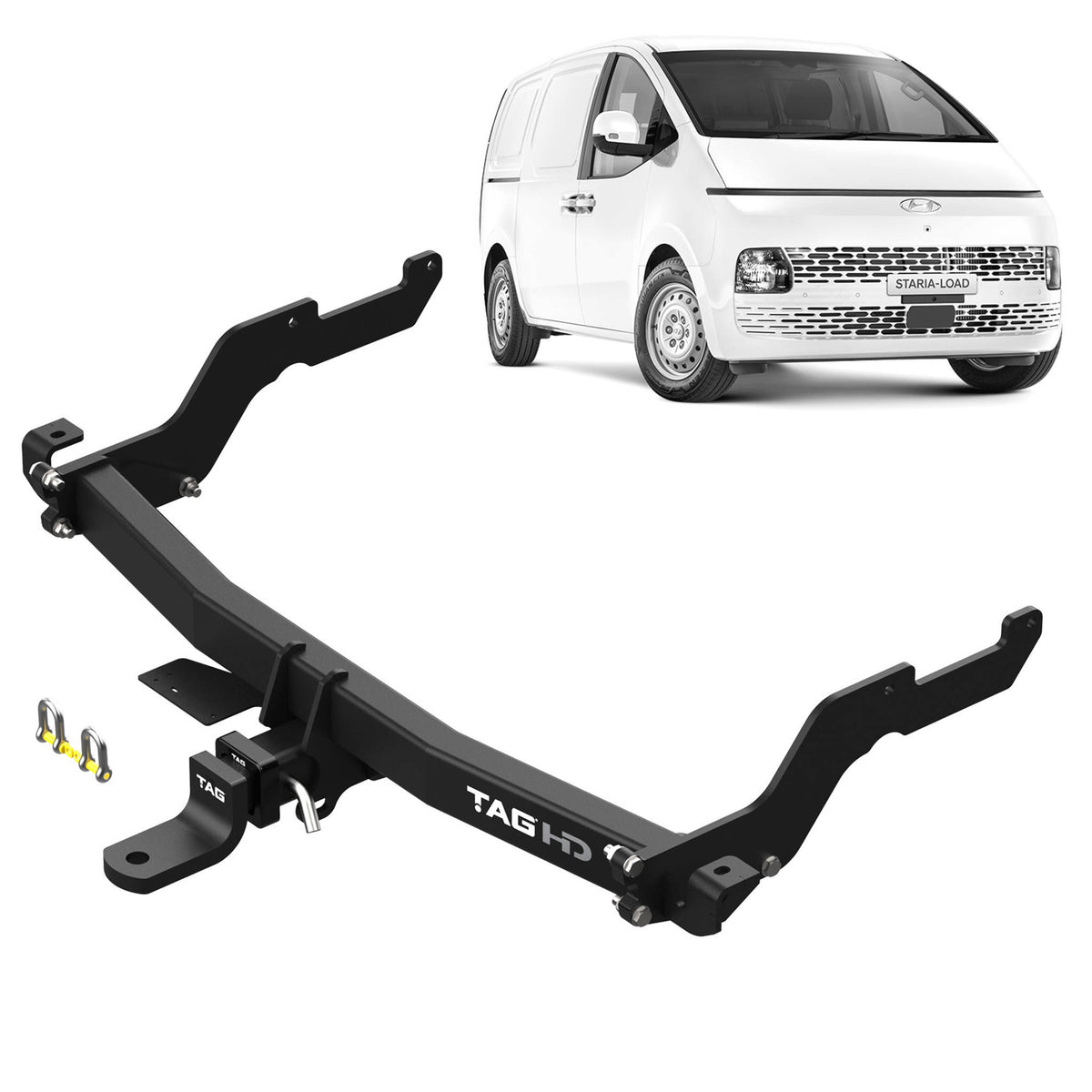

TAG Heavy Duty 3-Piece Towbar

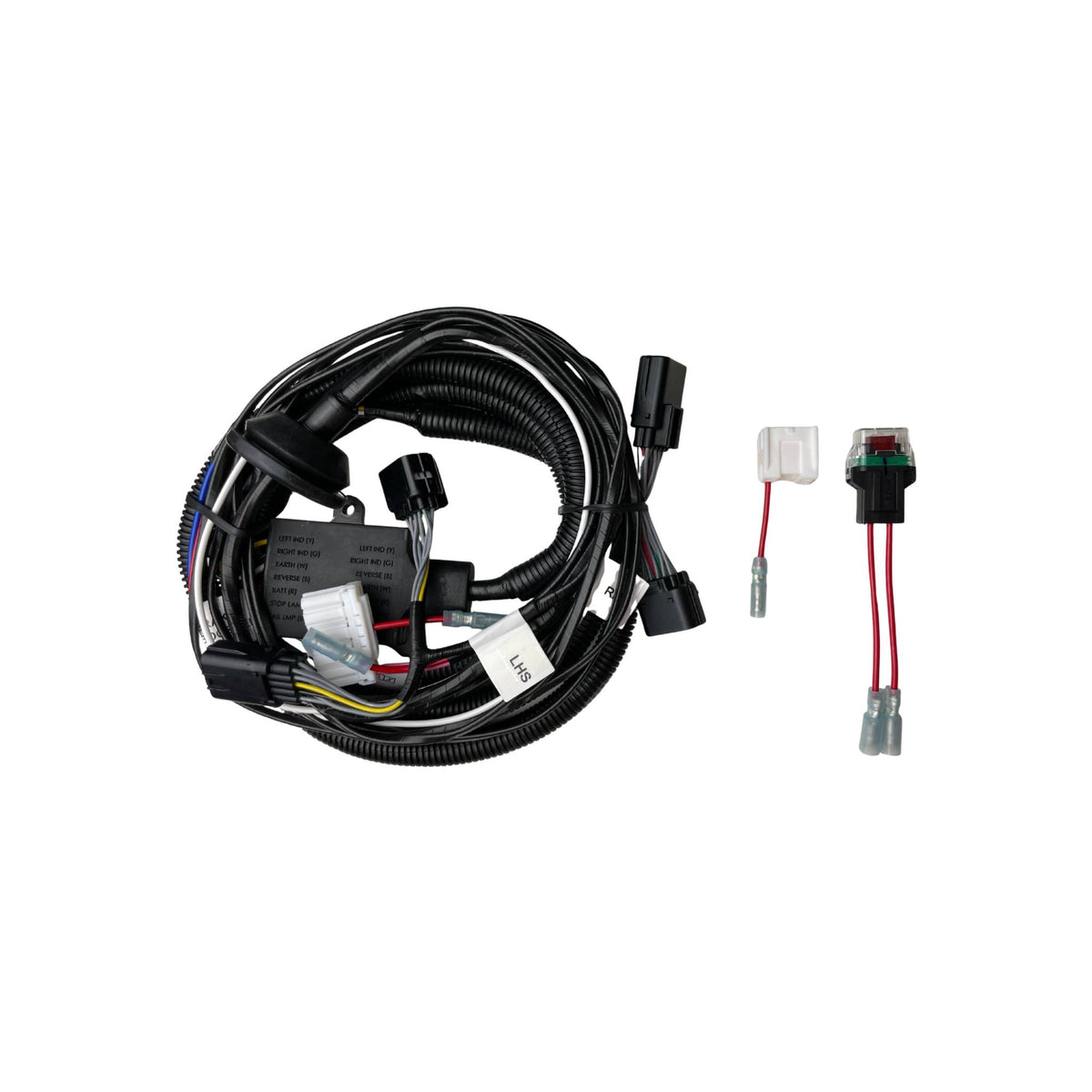

TAG Wiring Harness
TAG 7 Pin Flat Socket - Vehicle Side

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

3-Piece Design for easier installation
Class 4 Towbar - 50mm Square Hitch Receiver
Durable Powder Coated Finish
TAG Limited Lifetime Warranty
Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Style 7 Pin Flat
Type Plugs & Sockets
Diagnostic coding No
Fitting time [min.] 60 (UNT372)
Fitting time [min.] 90 (T7Z828)
Reverse sensor cut-off Via Dash
Wiring type Direct Fit
Includes trailer plug No
Brake controller prep Yes
Can bus support no
Towbar class Heavy Duty (3-Piece Design)
Towbar capacity [kg] 2500
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4120
Coating Powder Coated
Bumper removed during fitment Yes
Bumper cut out required Yes
Exposure Concealed
Ball weight [kg] 100

Vehicle Applications

Vehicle Applications

Hyundai Staria (01/2021 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
HYUNDAI	STARIA	06/2021	-	Van/Wagon	US	D4HB \| 2.2L \| Diesel	LOAD, 5S	Automatic FWD
HYUNDAI	STARIA	06/2021	-	Van/Wagon	US	D4HB \| 2.2L \| Diesel	LOAD, 5S, LR 2S	Automatic/Manual FWD
HYUNDAI	STARIA	06/2021	-	Wagon	US	D4HB \| 2.2L \| Diesel	5S, ELITE, HIGHLANDER	Automatic AWD
HYUNDAI	STARIA	06/2021	-	Wagon	US	G6DU \| 3.5L \| Petrol	ELITE, HIGHLANDER	Automatic FWD
HYUNDAI	STARIA	01/2021	-	Bus	US4	D4HB \| 2.2L \| Diesel	CRDi	AWD
HYUNDAI	STARIA	01/2021	-	Bus	US4	G6DU \| 3.5L \| Petrol	MPi	FWD
HYUNDAI	STARIA	01/2021	-	Van	US4	D4HB \| 2.2L \| Diesel	CRDi	FWD

Hyundai Staria (01/2021 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
HYUNDAI	STARIA	06/2021	-	Van/Wagon	US	D4HB \| 2.2L \| Diesel	LOAD, 5S	Automatic FWD
HYUNDAI	STARIA	06/2021	-	Van/Wagon	US	D4HB \| 2.2L \| Diesel	LOAD, 5S, LR 2S	Automatic/Manual FWD
HYUNDAI	STARIA	06/2021	-	Wagon	US	D4HB \| 2.2L \| Diesel	5S, ELITE, HIGHLANDER	Automatic AWD
HYUNDAI	STARIA	06/2021	-	Wagon	US	G6DU \| 3.5L \| Petrol	ELITE, HIGHLANDER	Automatic FWD
HYUNDAI	STARIA	01/2021	-	Bus	US4	D4HB \| 2.2L \| Diesel	CRDi	AWD
HYUNDAI	STARIA	01/2021	-	Bus	US4	G6DU \| 3.5L \| Petrol	MPi	FWD
HYUNDAI	STARIA	01/2021	-	Van	US4	D4HB \| 2.2L \| Diesel	CRDi	FWD
