TAG Heavy Duty Towbar & Direct Fit Wiring Kit for Ford Ranger PX2 PX3 Styleside Tub Models (06/2016 - 06/2022)

SKU T7F704-K202

RRP: $1,243.99

TAG Heavy Duty Towbar & Direct Fit Wiring for Ford Ranger PX2 PX3 Styleside Tub Models Only (05/2015 - 05/2022)

SKU: T4F574-K202

$1,272.98

alternate

Basic Heavy Duty Towbar

TAG Heavy Duty Towbar & Direct Fit Wiring Kit for Mazda BT-50 (11/2011 - 07/2020), Ford Ranger (11/2011 - 05/2022)

SKU: T7F704-K201

$1,311.68

alternate

Same Bar - Tag Wiring Harness

Quantity

RRP: $1,243.99

Assembly Components

Product Description

3-piece premium powder coated heavy duty towbar to suit models WITH rear bumper step. Direct fit Brink CANBUS wiring harness.

This Kit Includes:

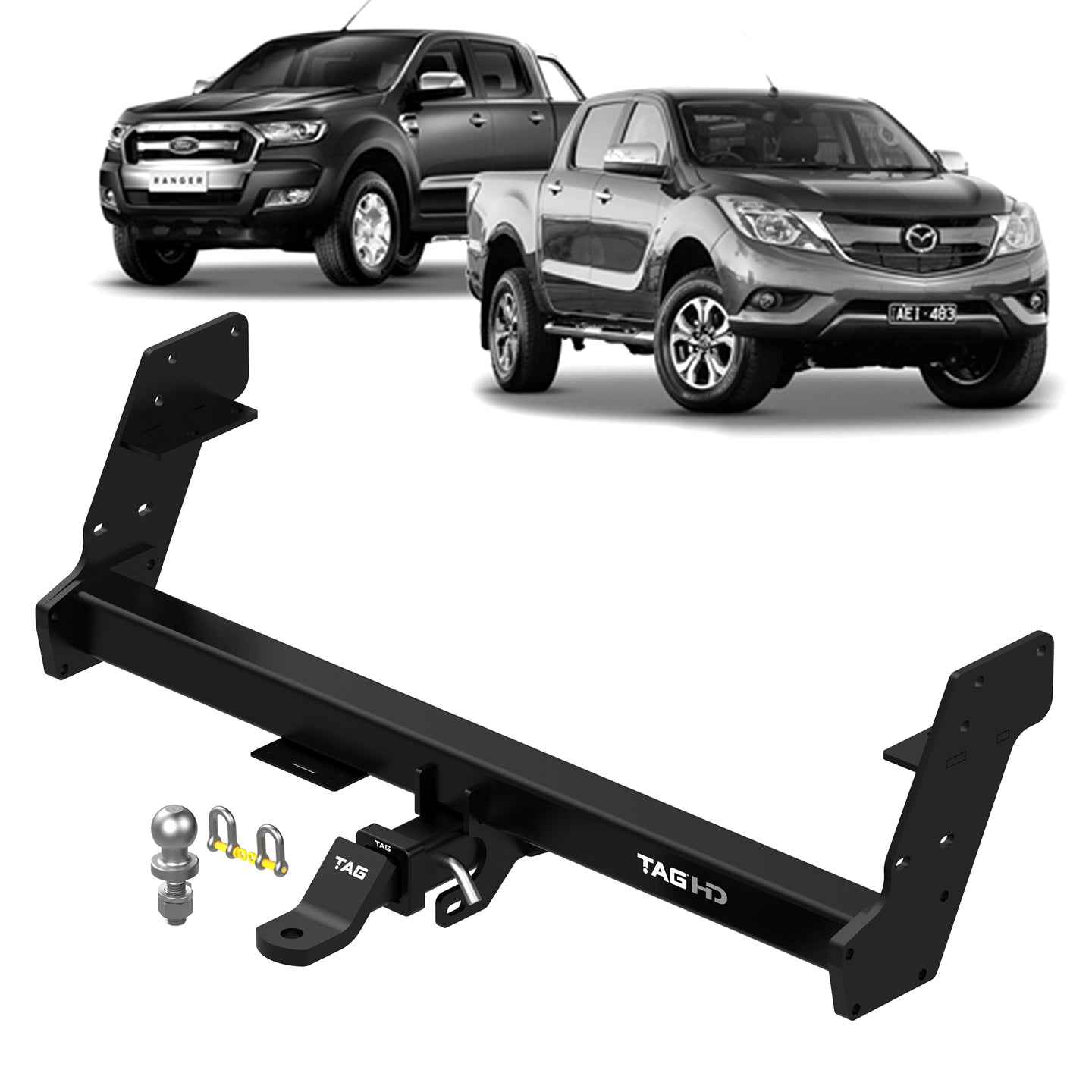

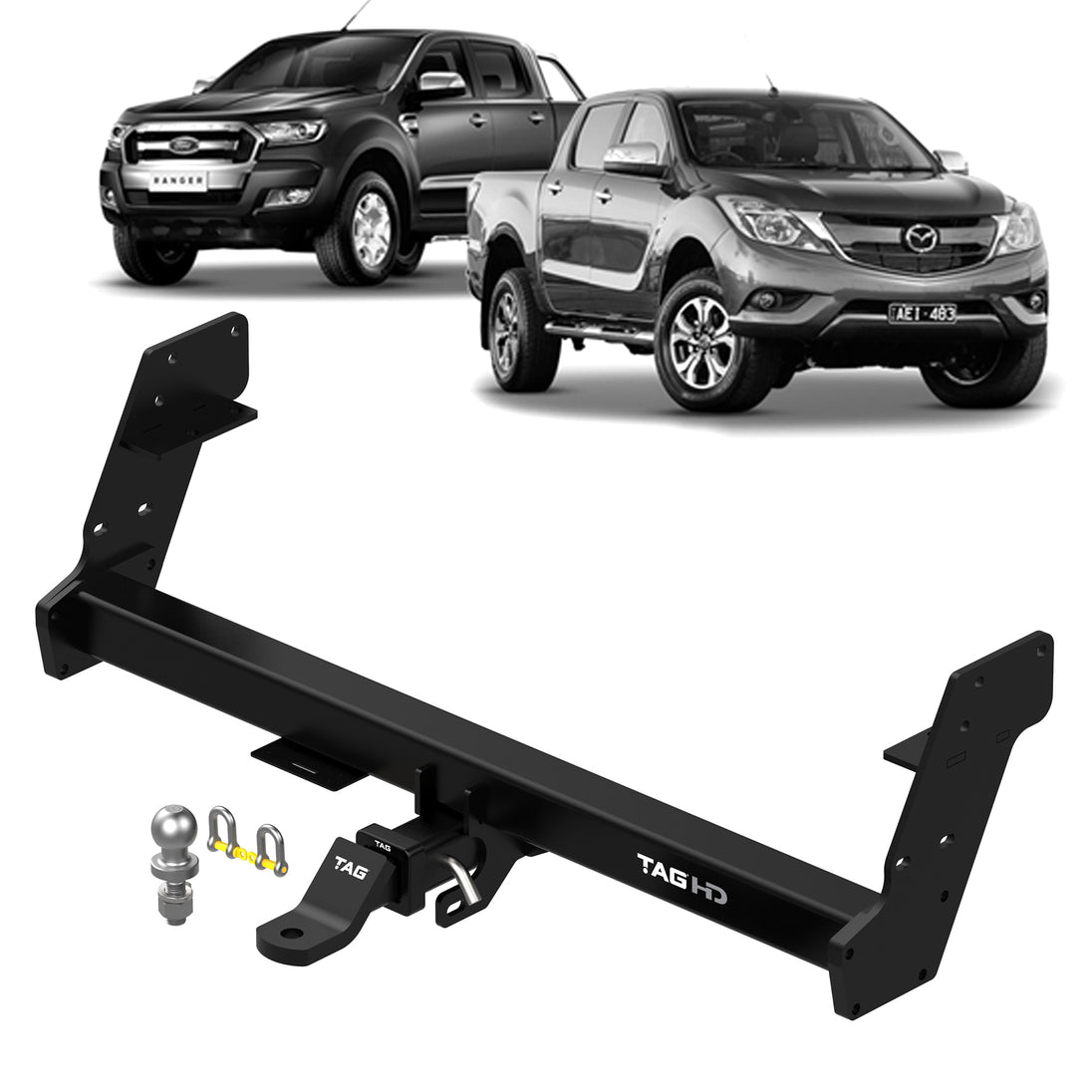

TAG Heavy Duty 3-Piece Towbar

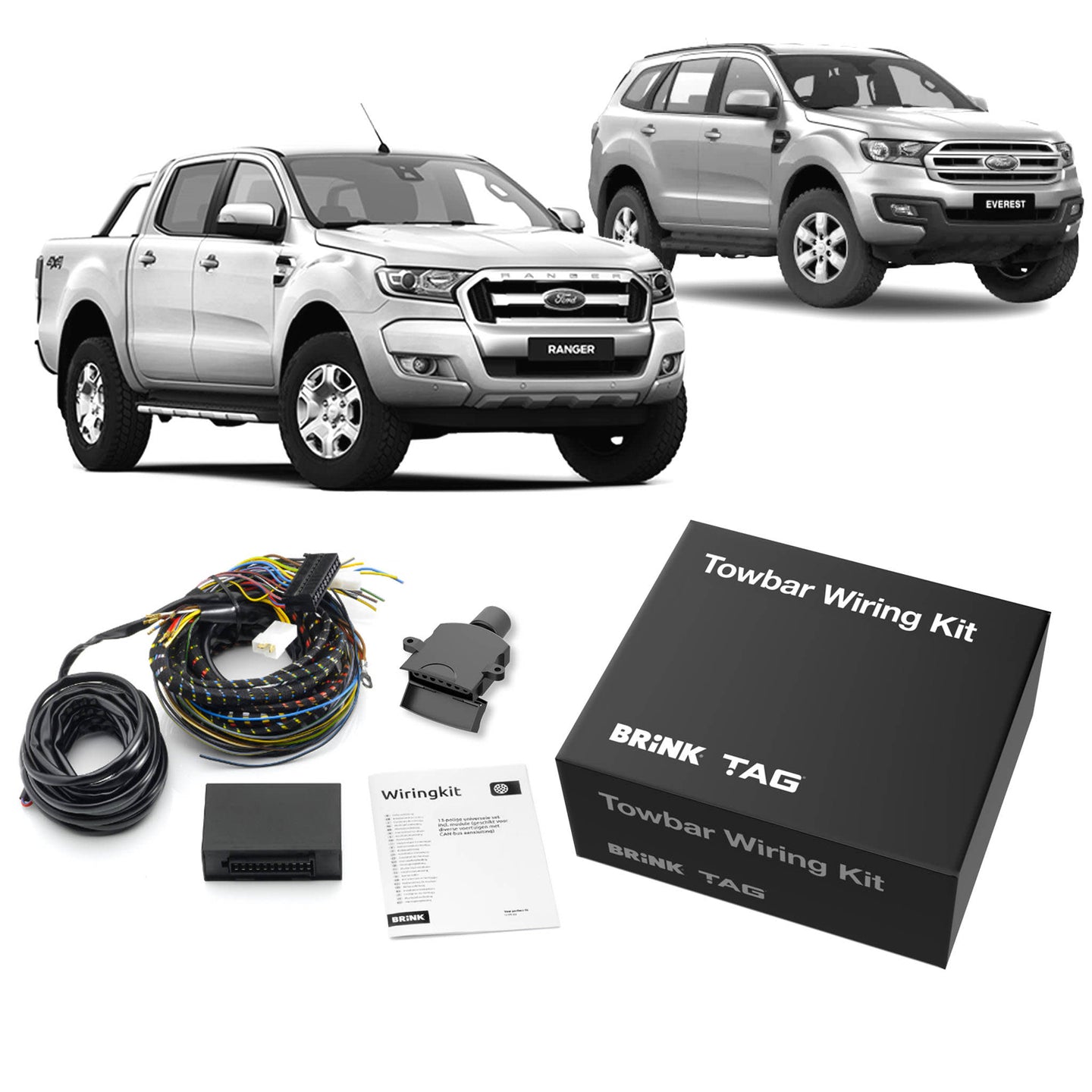

TAG Direct Fit CANBUS Wiring Harness with 7 Pin Flat plug

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

Suits Cab Chassis
3-Piece Design for easier installation
Class 4 Towbar - 50mm Square Hitch Receiver
Durable Powder Coated Finish
TAG Limited Lifetime Warranty
Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Fitting time [min.] 60
Wiring option CANBUS Direct Fit Wiring
Diagnostic coding Optional For All Features
Reverse sensor cut off Coding required
Fog cut off Automatic
Plug connection 7 Pin Flat Socket
Towbar class Heavy Duty (3-Piece Design)
Towbar capacity [kg] 3500
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4045
Coating Powder Coated
Fits models with rear step Yes
Fits vehicle year from 2011
Fits vehicle year from (month) 09
Ball weight [kg] 350

Vehicle Applications

Ford Ranger (06/2015 - 06/2022)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	Wildtrak Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	P5AT \| 3.2L \| Diesel	Wildtrak Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	P5AT \| 3.2L \| Diesel	XL Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	P4AT \| 2.2L \| Diesel	XL Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	P4AT \| 2.2L \| Diesel	XL Hi-Rider Double Cab	RWD
FORD	RANGER	06/2015	06/2022	Ute	PX3	P5AT \| 3.2L \| Diesel	XLS Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	P5AT \| 3.2L \| Diesel	XL Super Cab	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	XLT Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	P5AT \| 3.2L \| Diesel	XLT Double Cab	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	P5AT \| 3.2L \| Diesel	XLT Hi-Rider Double Cab	RWD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	XLT Hi-Rider Double Cab	RWD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	XLT Super Cab	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	P5AT \| 3.2L \| Diesel	XLT Super Cab	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	REDBACK, WILDTRAK, XLT	Automatic/Manual 4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	SUPER CAB	Automatic/Manual 4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	XLT HI-RIDER	Automatic RWD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	XLT HI-RIDER	Automatic RWD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	XLT SUPER CAB	Automatic 4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	XLT, WILDTRAK, FX4	Automatic 4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	P5AT \| 3.2L \| Diesel	LIMITED	Automatic/Manual 4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	Raptor Bi-Turbo	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	TDCi Bi-Turbo	AWD
FORD	RANGER	06/2015	06/2022	Ute	PX3	YN2S \| 2.0L \| Diesel	TDCi Bi-Turbo	RWD
FORD	RANGER	06/2015	06/2022	Ute	PX2, PX3	P4AT \| 2.2L \| Diesel	XL HI-RIDER	Automatic RWD
FORD	RANGER	06/2015	06/2022	Ute	PX2, PX3	P4AT \| 2.2L \| Diesel	XL, XLS	Automatic 4WD
FORD	RANGER	06/2015	06/2022	Ute	PX2, PX3	P5AT \| 3.2L \| Diesel	XLT HI-RIDER	Automatic/Manual RWD
FORD	RANGER	06/2015	06/2022	Ute	PX2, PX3	P5AT \| 3.2L \| Diesel	XL, XLT, XLS, WILDTR	Automatic/Manual 4WD
FORD	RANGER	06/2015	06/2022	Ute	PX2, PX3	P4AT \| 2.2L \| Diesel	XL	Manual RWD
FORD	RANGER	06/2015	06/2022	Ute	PX2, PX3	P4-AT \| 2.2L \| Diesel	TDdi	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX2, PX3	P4-AT \| 2.2L \| Diesel	TDdi	RWD
FORD	RANGER	06/2015	06/2022	Ute	PX, PX2, PX3	P5-AT \| 3.2L \| Diesel	TDdi	4WD
FORD	RANGER	06/2015	06/2022	Ute	PX, PX2, PX3	P5-AT \| 3.2L \| Diesel	TDdi	RWD
FORD	RANGER	06/2015	06/2022	Ute	PX, PX2, PX3	P5AT \| 3.2L \| Diesel	SUPER CAB XL, XLT	Automatic/Manual 4WD
