TAG Heavy Duty Towbar & Direct Fit Wiring Kit for Nissan Patrol GQ GU Wagons Only (12/1997 - on)

SKU T4D472-K202
$1,051.68
$841.34
$1,051.68
$841.34
Product Attributes
  • Style 7 Pin Flat
  • Type Plugs & Sockets
  • Reverse sensor cut off Not Applicable
  • Wiring option Direct Fit Wiring Harness
  • Fitting time [min.] 30 (UNT218)
  • Fitting time [min.] 120 (T4D472)
  • Towbar class Heavy Duty
  • Towbar capacity [kg] 3500
  • Hitch type 50mm Square Hitch Receiver
  • Tow ball mount L4045
  • Coating Enamel Immersion Dipped
  • Bumper removed during fitment Yes
  • Bumper cut out required No
  • Exposure Exposed
  • Ball weight [kg] 350
Assembly Components

Nissan Patrol Wagon GQ & GU 12/1997 - On 2500/250kg

This Kit Includes:

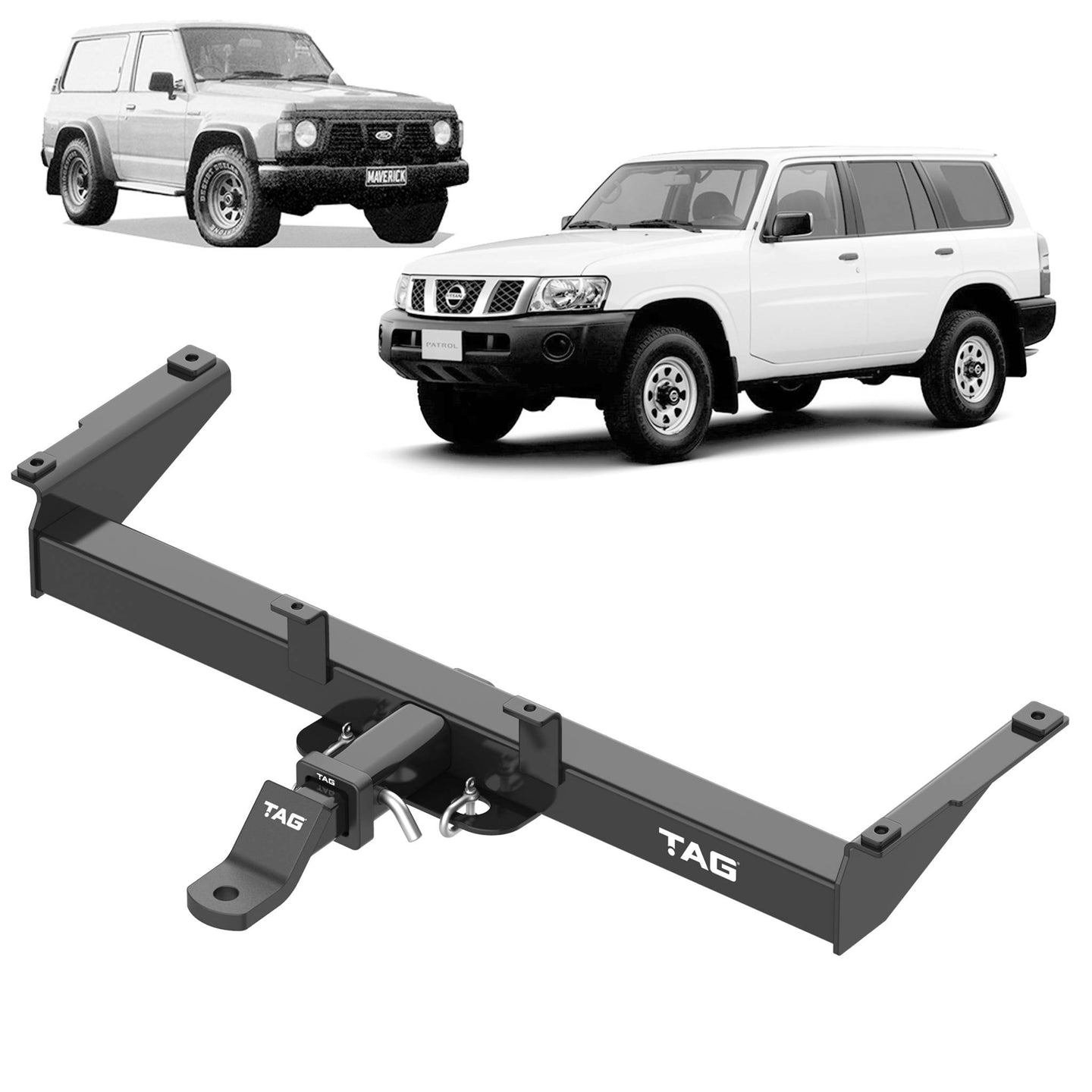

  • TAG Heavy Duty Towbar

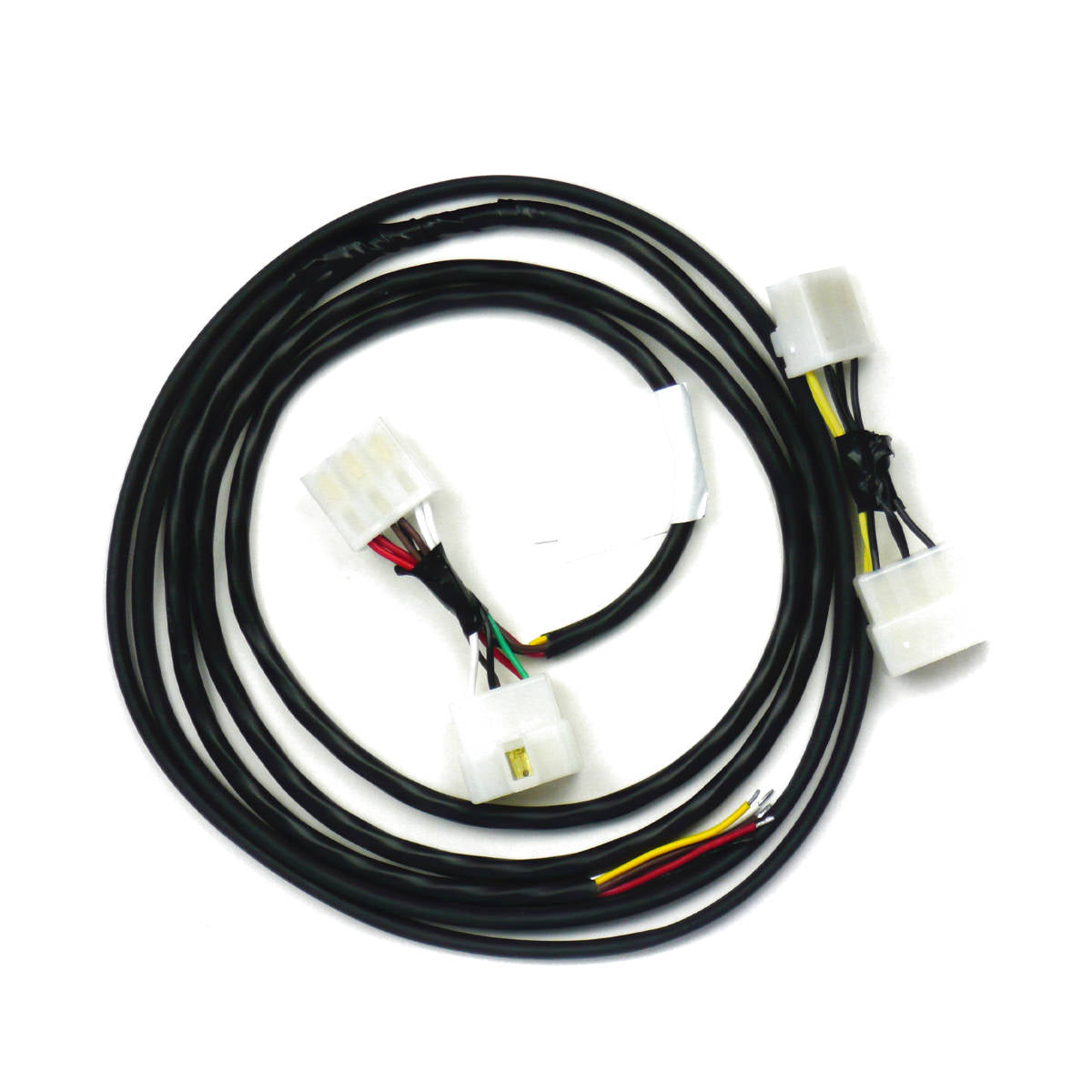

  • TAG Direct Fit Wiring Harness

  • TAG 7 Pin Flat Socket - Vehicle Side

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

  • Factory Mounting Points for ease of fitment

  • Durable Powder Coated Finish.

  • Class 4,50mm x 50mm Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Towbar includes - Tow Ball, Tow Ball Mount, Hitch Pin & R-Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Vehicle Applications

Nissan Patrol (01/1987 - 01/2017)

Make Model From To Body Series Engine Variant Drivetrain
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) ZD30DDTi | 3.0L | Diesel D AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) 3.0L | - DTi -
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) 3.0L | - DTi -
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) ZD30DDTi | 3.0L | - D -
NISSAN PATROL 01/1987 01/2017 Wagon GR_, GU ZD30DDTi | 3.0L | Diesel DTi AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 TB48DE | 4.8L | Petrol - AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 TB48DE | 4.8L | Petrol - AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) TB48DE | 4.8L | Petrol ST| ST-L| ST-S| TI Automatic/Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon GR_, GU ZD30DDTi | 3.0L | Diesel DTi AWD
NISSAN PATROL 01/1987 01/2017 Wagon GR_, GU TD42T | 4.2L | Diesel D AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) TD42T | 4.2L | Diesel DX| ST| ST-L| ST-S| ST PLUS Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) ZD30DDTi | 3.0L | Diesel D AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) ZD30DDTi | 3.0L | Diesel DX| ST| ST-L| ST-S| TI Automatic/Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) TD42T | 4.2L | Diesel - Automatic 4WD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 TD42 | 4.2L | Diesel D AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 TB45E | 4.5L | Petrol - AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) TB45E | 4.5L | Petrol ST| TI Automatic/Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) TD42 | 4.2L | Diesel DX Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 RD28Ti | 2.8L | Diesel TDiC AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) RD28ETI | 2.8L | Diesel - 4WD
NISSAN PATROL 01/1987 01/2017 Wagon Y61 (GU) RD28ETI | 2.8L | Diesel DX| ST Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon Y60 (GQ) RD28T | 2.8L | Diesel RX| ST Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon K260 TB42E | 4.2L | Petrol - AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y60 (GQ) TB42E | 4.2L | Petrol TI| ST| RX Automatic/Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon GQ, Y60 RB30S | 3.0L | Petrol - AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y60 (GQ) RB30 | 3.0L | Petrol - AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y60 (GQ) RB30 | 3.0L | Petrol RX| ST30 Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon GQ, Y60 TD42 | 4.2L | Diesel D 4WD
NISSAN PATROL 01/1987 01/2017 Wagon GQ (Y60A) RD28T | 2.8L | Diesel TD AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y60 (GQ) TD42 | 4.2L | Diesel DX| GLi| RX| ST| TI Automatic/Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon GQ (CGY60, WGY60) TB42E | 4.2L | Petrol Efi AWD
NISSAN PATROL 01/1987 01/2017 Wagon K260 TD42 | 4.2L | Diesel D AWD
NISSAN PATROL 01/1987 01/2017 Wagon GQ (CRGY60, KRY60, KY60, WRGY60) TD42 | 4.2L | Diesel D AWD
NISSAN PATROL 01/1987 01/2017 Wagon - TB42 | 4.2L | Petrol Carb AWD
NISSAN PATROL 01/1987 01/2017 Wagon K260 TB42E | 4.2L | Petrol - AWD
NISSAN PATROL 01/1987 01/2017 Wagon Y60 (GQ) TB42S | 4.2L | Petrol DX| ST| TI Automatic/Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon Y60 (GQ) TD42 | 4.2L | Diesel - Automatic/Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon Y60 (GQ) TD42 | 4.2L | Diesel - Manual 4WD
NISSAN PATROL 01/1987 01/2017 Wagon Y60 (GQ) TD42 | 4.2L | Diesel - Automatic/Manual 4WD
