TAG Heavy Duty Towbar & Direct Fit Wiring Kit for Subaru Outback (09/2009 - 01/2015)

files/T4S629_T4S629_93bc2bd1-41f0-46ba-b631-fed20a677444.jpg
files/5215994342782_7430ba4a-7f75-4d3e-a459-4628b368a691.jpg
files/1833865192065_d0876d3f-ce3b-4724-8865-cf2668c94dee.png

TAG Heavy Duty Towbar & Direct Fit Wiring Kit for Subaru Outback (09/2009 - 01/2015)

SKU T4S629-K201

RRP: $937.78

Quantity

RRP: $937.78

Assembly Components

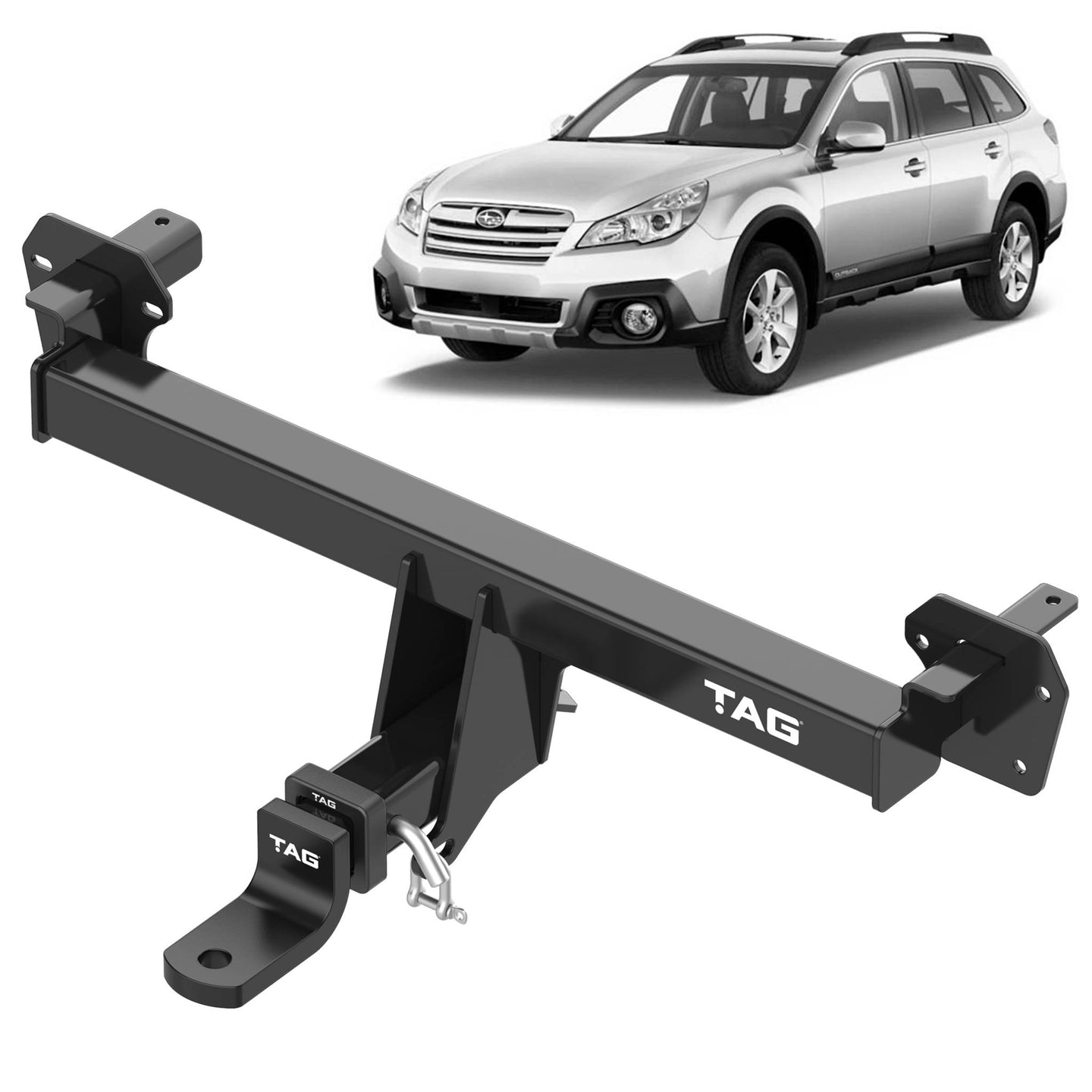

TAG Towbar Heavy Duty for Subaru Outback (09/2009 - 01/2015)

T4S629

$879.00

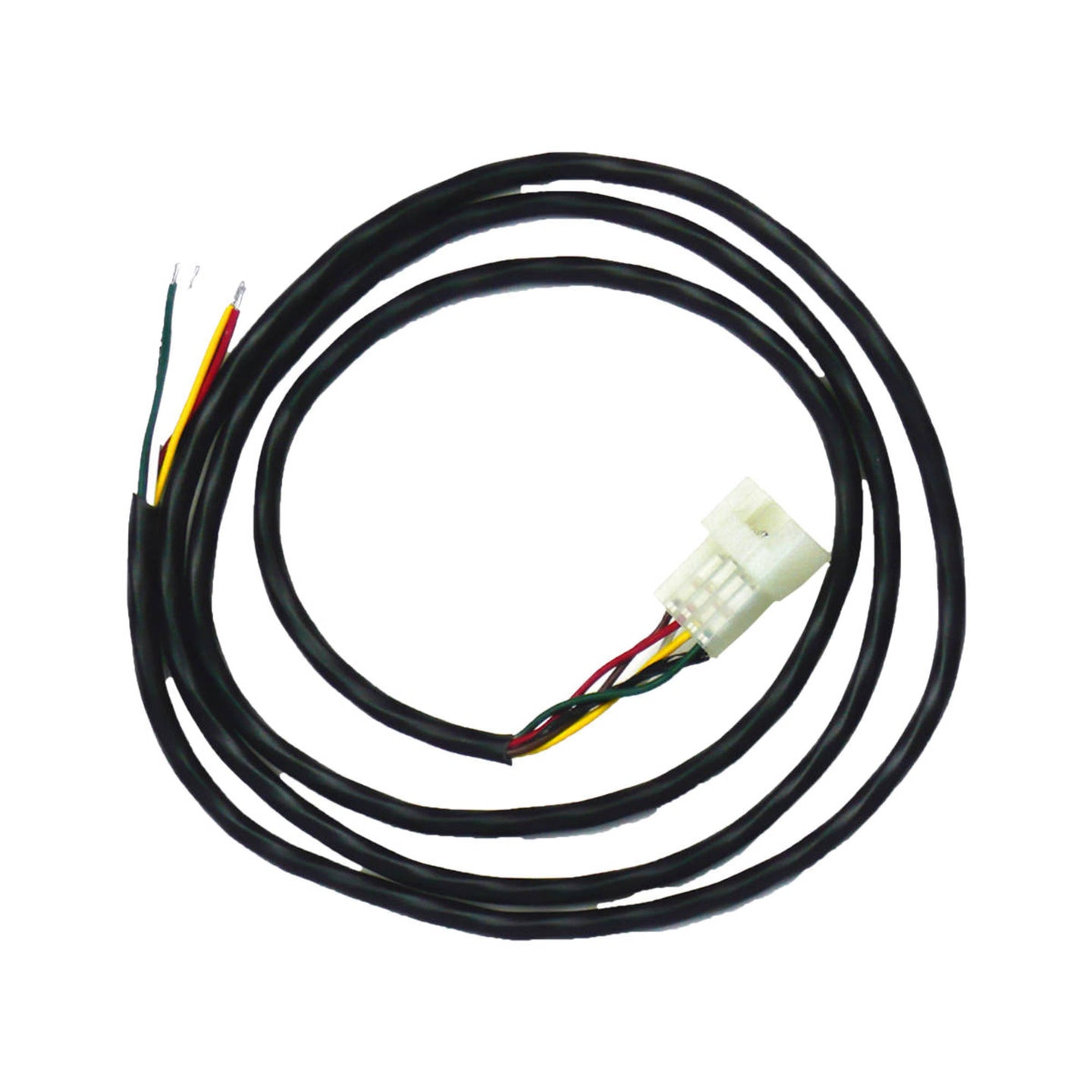

TAG Direct Fit Wiring Harness for Subaru Forester (10/2007 - 07/2018), Outback (10/2007 - 07/2018), Impreza (10/2007 - 07/2018), Liberty (10/2007 - 07/2018), XV (10/2007 - 07/2018)

UNT276

$46.09

Product Description

This Kit Includes:

TAG Heavy Duty Towbar
TAG Direct Fit Wiring Harness
TAG 7 Pin Flat Socket - Vehicle Side

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

Factory Mounting Points for ease of fitment
Durable Powder Coated Finish.
Class 4,50mm x 50mm Hitch Receiver
TAG Limited Lifetime Warranty
Towbar includes - Tow Ball, Tow Ball Mount, Hitch Pin & R-Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Product Attributes

Specifications

Style 7 Pin Flat
Type Plugs & Sockets
Reverse sensor cut off Not Applicable
Diagnostic coding Not Required
Fog cut off Not Applicable
Wiring option Direct Fit Wiring Harness
Fitting time [min.] 30 (UNT276)
Fitting time [min.] 60 (T4S629)
Towbar class Heavy Duty
Towbar capacity [kg] 1800
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4120
Coating Enamel Immersion Dipped
Bumper removed during fitment Yes
Bumper cut out required Yes
Exposure Concealed
Ball weight [kg] 180

Vehicle Applications

Vehicle Applications

Subaru Outback (09/2009 - 01/2015)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
SUBARU	OUTBACK	12/2012	01/2015	Wagon	BR	FB25 \| 2.5L \| Petrol	2.5i	AWD
SUBARU	OUTBACK	01/2012	01/2015	Wagon	BR (BRM)	EJ253 \| 2.5L \| Petrol	i	AWD
SUBARU	OUTBACK	10/2009	01/2015	Wagon	BR	EE20 \| 2.0L \| Diesel	2.0D	Manual AWD
SUBARU	OUTBACK	09/2009	01/2015	Wagon	BR	EZ36D \| 3.6L \| Petrol	3.6R	Automatic/Manual AWD
SUBARU	OUTBACK	09/2009	01/2015	Wagon	BR (BRD)	EE20Z \| 2.0L \| Diesel	D	AWD
SUBARU	OUTBACK	09/2009	01/2015	Wagon	BR (BR9)	EJ253 \| 2.5L \| Petrol	i	AWD
SUBARU	OUTBACK	09/2009	01/2015	Wagon	BR (BR9)	EJ253 \| 2.5L \| Petrol	i	AWD
SUBARU	OUTBACK	09/2009	01/2015	Wagon	BR (BRF)	EZ36D \| 3.6L \| Petrol	R	AWD
SUBARU	OUTBACK	09/2009	11/2012	Wagon	BR	EJ253 \| 2.5L \| Petrol	2.5i	Automatic/Manual AWD
