TAG Tow Ball Mount and Direct Fit Wiring Harness Kit For Toyota Hilux N80 (10/2015 - on)

SKU TL4045-K201

RRP: $452.87

Quantity

RRP: $452.87

Assembly Components

Product Description

TO SUIT HILUX WITH INTEGRATED TOWBAR SR5

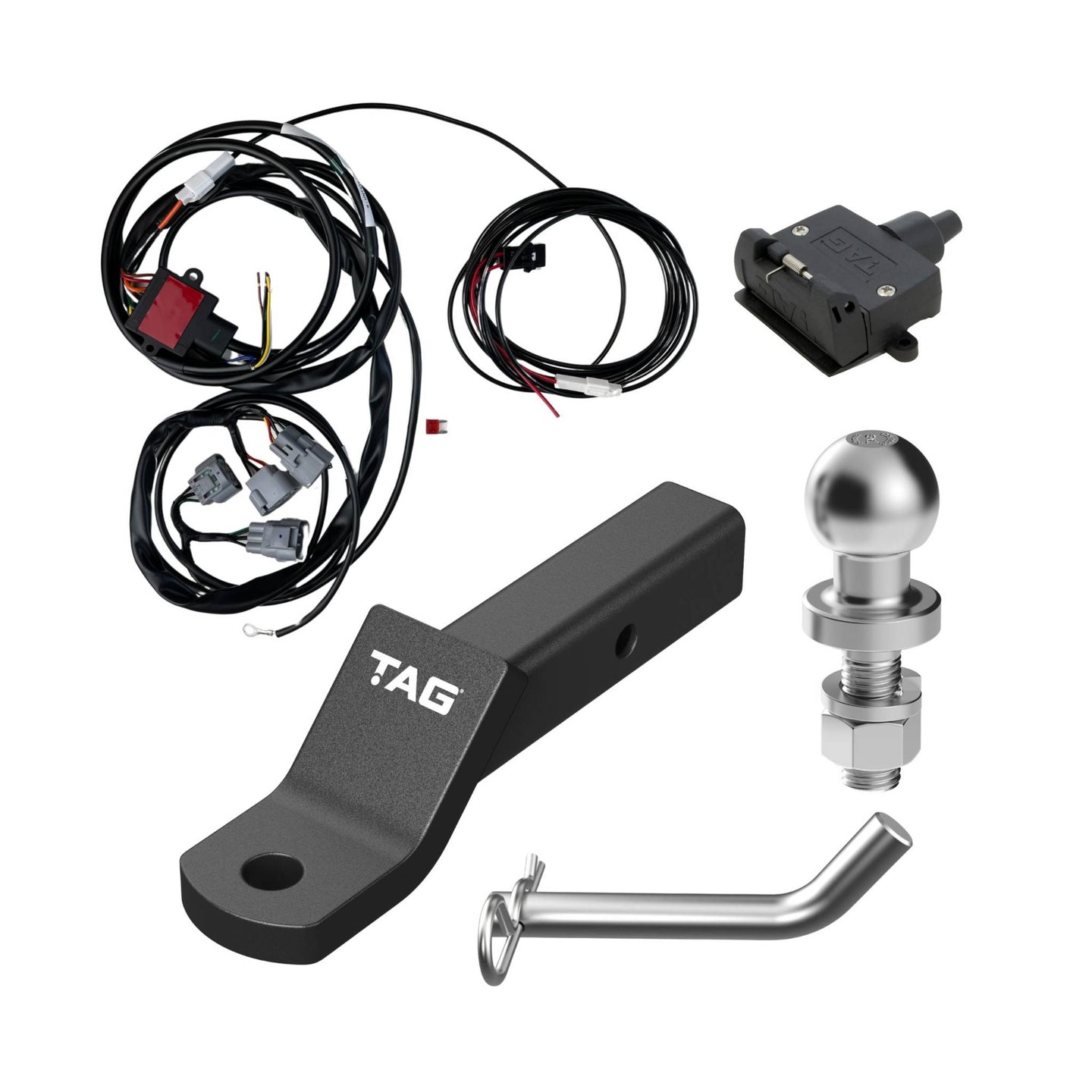

This kit includes

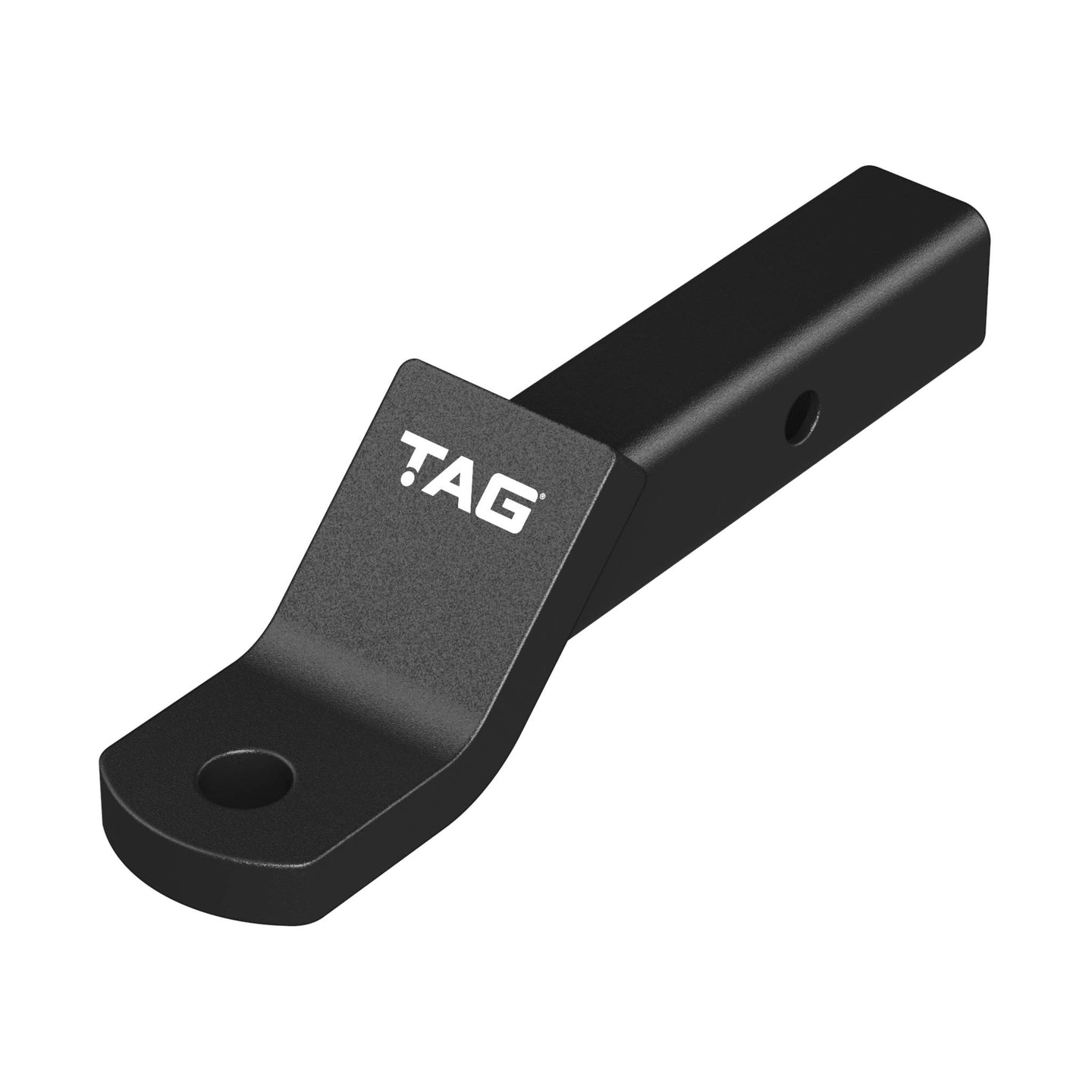

TAG Tow Ball Mount

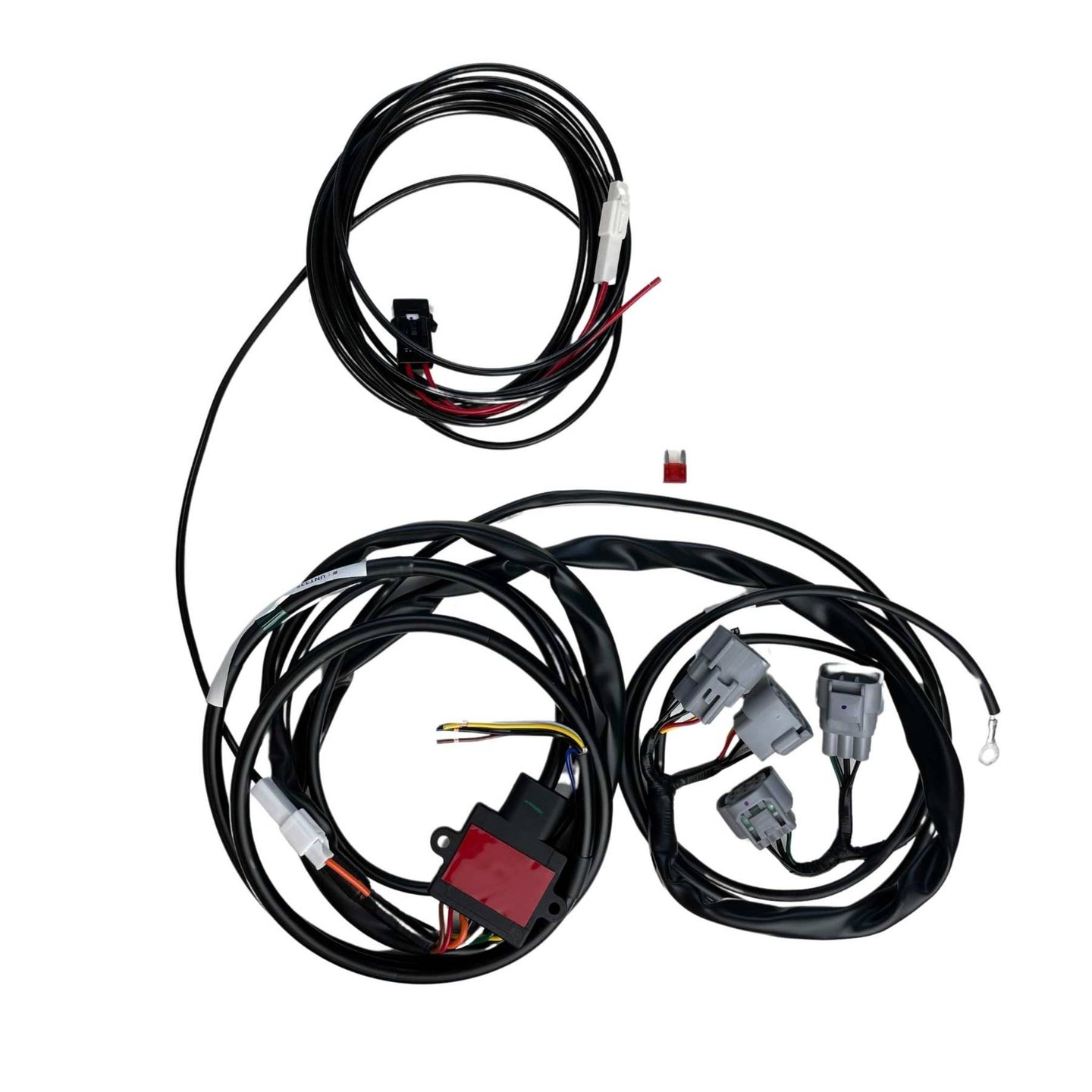

TAG Direct Fit Wiring Harnerss

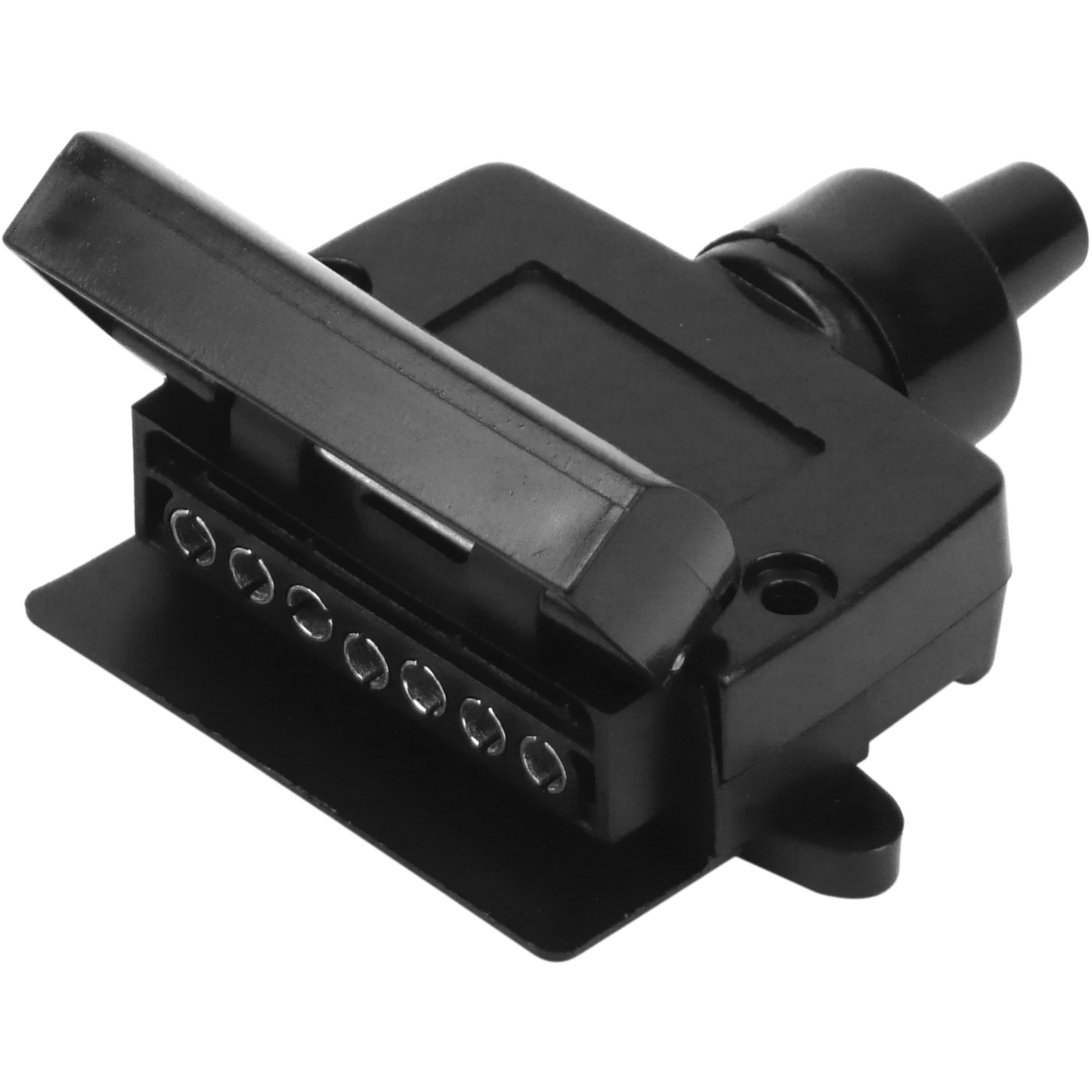

TAG 7 Pin Flat Socket Vehicle Side

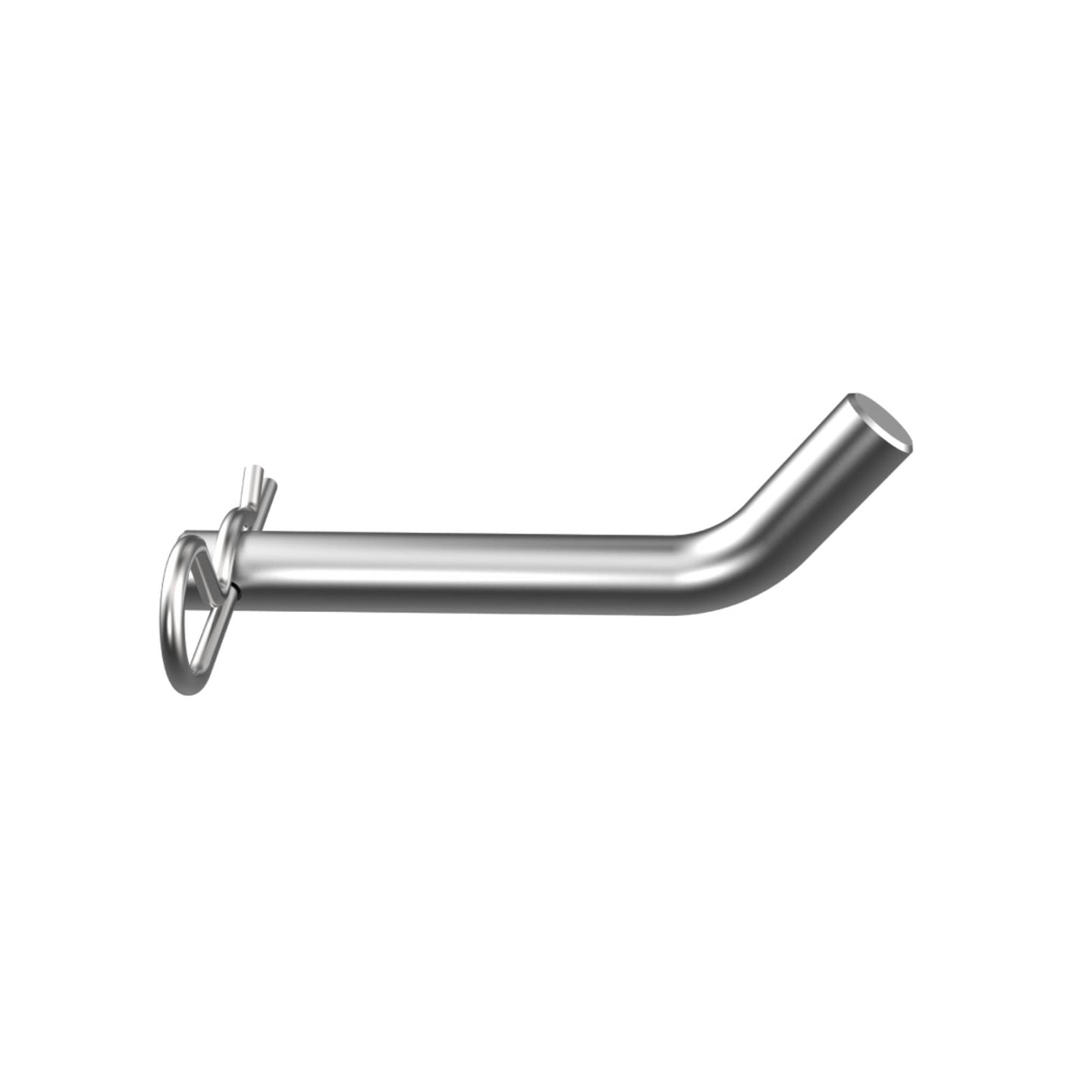

Pull Pin with Clip

TAG Tow Ball Mounts are manufactured using drop-forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

208mm Long (Hitch Pin Hole to Tow Ball Hole)
135 Tongue Face
Drop: 0mm
Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
3500kg Gross Trailer Weight
350kg Ball Weight
Durable Powder-Coated Finish
ADR 62/02 Compliant
TAG Limited Lifetime Warranty

Tow Ball sold separately.

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.

Product Attributes

Specifications

Type Hitch Pin (UNT080)
Type Plugs & Sockets (UNT032)
Coating Zinc Plated (UNT080)
Coating Powder Coated (L4045)
Style 7 Pin Flat
Fitting time [min.] 60
Reverse sensor cut off Automatic
Diagnostic coding Not Applicable
Fog cut off Automatic
Wiring option Direct Fit ECU
Hitch type Heavy Duty 50mm Square
Tow ball mount class Heavy Duty (Class 4)
Gross trailer weight 3500
Ball weight [kg] 350
Drop 18mm
Rise Can be used in Drop or Rise mode
Length (pin to ball) 208mm
Front to pin (mm) 250
Back to pin (mm) 90
Tongue face 135°
Length 338

Vehicle Applications

Toyota Hilux (07/2015 - on)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel 48V \| 2.8L \| Hybrid (Diesel)	SR 48V Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel 48V \| 2.8L \| Hybrid (Diesel)	SR5 48V Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	SR Double Cab	Manual 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	SR Extra Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	WorkMate Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	WorkMate Single Cab	Automatic 4X2
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	WorkMate Single Cab	Manual 4X2
TOYOTA	HILUX	07/2015	-	Cab Chassis	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	WorkMate Single Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Ute	N90	2.8L Turbo Diesel 48V \| 2.8L \| Hybrid (Diesel)	Rogue 48V Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Ute	N90	2.8L Turbo Diesel 48V \| 2.8L \| Hybrid (Diesel)	Rugged X 48V Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Ute	N90	2.8L Turbo Diesel 48V \| 2.8L \| Hybrid (Diesel)	SR 48V Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Ute	N90	2.8L Turbo Diesel 48V \| 2.8L \| Hybrid (Diesel)	SR5 48V Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Ute	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	SR5 Double Cab	Manual 4X4
TOYOTA	HILUX	07/2015	-	Ute	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	SR Double Cab	Automatic 4X2
TOYOTA	HILUX	07/2015	-	Ute	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	WorkMate Double Cab	Automatic 4X2
TOYOTA	HILUX	07/2015	-	Ute	N90	2.8L Turbo Diesel \| 2.8L \| Diesel	WorkMate Double Cab	Automatic 4X4
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	1GD-FTV \| 2.8L \| Hybrid (Diesel)	D-4D 48V	AWD
TOYOTA	HILUX	07/2015	-	Ute	N80	1GD-FTV \| 2.8L \| Hybrid (Diesel)	D-4D 48V	AWD
TOYOTA	HILUX	07/2015	-	Ute	N80	1GD-FTV \| 2.8L \| Diesel	GR Sport	- 4X4
TOYOTA	HILUX	07/2015	-	Ute	N80	1GD-FTV \| 2.8L \| Diesel	D-4D	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	1GD-FTV \| 2.8L \| Diesel	D-4D	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2TRFE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	Workmate Hi-Rider	Manual RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	1GD-FTV \| 2.8L \| Diesel	D-4D	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2TRFE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	1GD-FTV \| 2.8L \| Diesel	Rogue\| Rugged\| Rugged X	4WD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	1GD-FTV \| 2.8L \| Diesel	SR	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	1GD-FTV \| 2.8L \| Diesel	SR	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	Workmate	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	Workmate	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	1GD-FTV \| 2.8L \| Diesel	SR	AWD
TOYOTA	HILUX	07/2015	-	Ute	N80	1GD-FTV \| 2.8L \| Diesel	SR5	AWD
TOYOTA	HILUX	07/2015	-	Ute	N80	1GD-FTV \| 2.8L \| Diesel	SR5 Hi-Rider	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	1GD-FTV \| 2.8L \| Diesel	SR Hi-Rider	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2GD-FTV \| 2.4L \| Diesel	Workmate	AWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2GD-FTV \| 2.4L \| Diesel	Workmate	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	TDi	AWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2TR-FE \| 2.7L \| Petrol	Workmate	RWD
TOYOTA	HILUX	07/2015	-	Cab Chassis	N80	2TR-FE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2TR-FE \| 2.7L \| Petrol	Workmate	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2TR-FE \| 2.7L \| Petrol	WORKMATE	Automatic/Manual RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2GD-FTV \| 2.4L \| Diesel	TDi	AWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2GD-FTV \| 2.4L \| Diesel	TDi	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	07/2015	-	Ute	N80	2TR-FE \| 2.7L \| Petrol	VVTi	RWD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	Workmate Hi-Rider	Manual RWD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	N80	1GD-FTV \| 2.8L \| Diesel	SR	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	N80	1GD-FTV \| 2.8L \| Diesel	SR	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	N80	1GD-FTV \| 2.8L \| Diesel	SR EXTRA CAB	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	WORKMATE	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	WORKMATE EXTRA CAB	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Ute	N80	1GD-FTV \| 2.8L \| Diesel	ROGUE, RUGGED, RUGGED X, SR5, SR5+	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Ute	N80	1GD-FTV \| 2.8L \| Diesel	SR HI-RIDER	Automatic/Manual RWD
TOYOTA	HILUX	07/2015	04/2020	Ute	N80	2GD-FTV \| 2.4L \| Diesel	WORKMATE	Automatic/Manual 4WD
TOYOTA	HILUX	07/2015	04/2020	Cab Chassis	N80	1GD-FTV \| 2.8L \| Diesel	D-4D	AWD
TOYOTA	HILUX	07/2015	04/2020	Ute	N80	1GD-FTV \| 2.8L \| Diesel	D-4D	AWD
TOYOTA	HILUX	07/2015	04/2020	Ute	N80	1GD-FTV \| 2.8L \| Diesel	D-4D	RWD
TOYOTA	HILUX	07/2015	06/2019	Cab Chassis	N80	2GD-FTV \| 2.4L \| Diesel	WORKMATE	Manual RWD
TOYOTA	HILUX	07/2015	06/2019	Ute	N80	2GD-FTV \| 2.4L \| Diesel	WORKMATE	Manual RWD
TOYOTA	HILUX	07/2015	09/2019	Ute	N80	1GD-FTV \| 2.8L \| Diesel	SR5 EXTRA CAB	Automatic 4WD
TOYOTA	HILUX	07/2015	09/2017	Cab Chassis	N80	1GD-FTV \| 2.8L \| Diesel	SR	Manual RWD
TOYOTA	HILUX	07/2015	09/2017	Ute	N80	1GD-FTV \| 2.8L \| Diesel	SR EXTRA CAB	Manual RWD
TOYOTA	HILUX	07/2015	07/2017	Cab Chassis	N80	1GD-FTV \| 2.8L \| Diesel	D-4D	RWD
TOYOTA	HILUX	07/2015	07/2017	Cab Chassis	N80	1GD-FTV \| 2.8L \| Diesel	D-4D	RWD
TOYOTA	HILUX	07/2015	07/2017	Ute	N80	1GD-FTV \| 2.8L \| Diesel	D-4D	RWD
TOYOTA	HILUX	07/2015	10/2017	Ute	N80	1GR-FE \| 4.0L \| Petrol	SR	AWD
TOYOTA	HILUX	07/2015	10/2017	Ute	N80	1GR-FE \| 4.0L \| Petrol	SR	RWD
TOYOTA	HILUX	07/2015	09/2017	Ute	N80	1GR-FE \| 4.0L \| Petrol	SR	Automatic RWD
TOYOTA	HILUX	07/2015	09/2017	Ute	N80	1GR-FE \| 4.0L \| Petrol	SR5	Automatic 4WD
TOYOTA	HILUX	07/2015	10/2017	Ute	N80	1GR-FE \| 4.0L \| Petrol	SR5	AWD
TOYOTA	HILUX	07/2015	09/2017	Ute	N80	1GD-FTV \| 2.8L \| Diesel	SR5 HI-RIDER	Automatic RWD
TOYOTA	HILUX	07/2015	07/2017	Ute	N80	1GR-FE \| 4.0L \| Petrol	V6 VVTi	AWD
TOYOTA	HILUX	07/2015	07/2017	Ute	N80	1GR-FE \| 4.0L \| Petrol	V6 VVTi	AWD
TOYOTA	HILUX	07/2015	07/2017	Ute	N80	1GR-FE \| 4.0L \| Petrol	V6 VVTi	RWD
TOYOTA	HILUX	07/2015	07/2017	Ute	N80	1GR-FE \| 4.0L \| Petrol	V6 VVTi	RWD
TOYOTA	HILUX	07/2015	10/2017	Ute	N80	1GR-FE \| 4.0L \| Petrol	SR	Automatic 4WD
