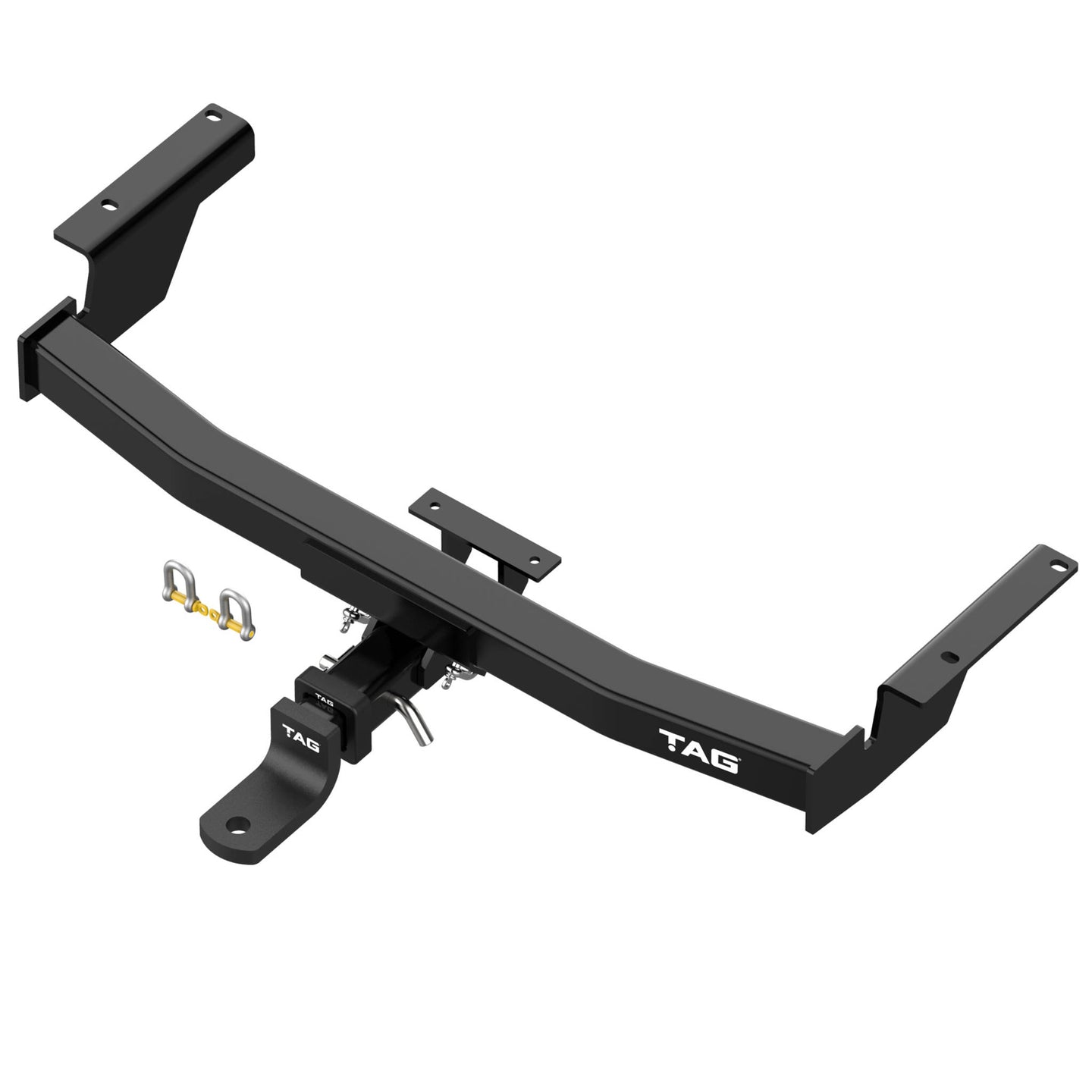

TAG Towbar Heavy Duty for Toyota Rav4 (02/2006 - 01/2013), Toyota Rav4 (11/2005 - 12/2012)

files/T4T536.jpg

TAG Towbar Heavy Duty for Toyota Rav4 (02/2006 - 01/2013), Toyota Rav4 (11/2005 - 12/2012)

SKU T4T536

RRP: $779.00

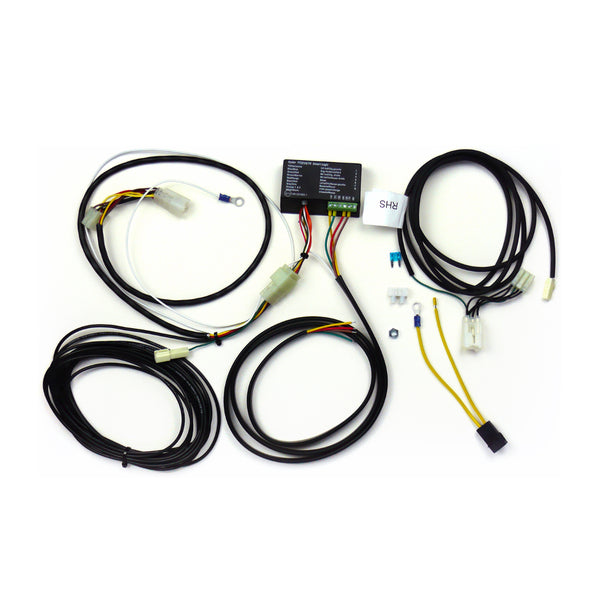

TAG Direct Fit Wiring Harness for Toyota Rav4 (02/2006 - 01/2013)

TAG Direct Fit Wiring Harness for Toyota Rav4 (02/2006 - 01/2013)

SKU: UNT258

$248.99

required

TAG Chrome Tow Ball - 50mm, 3.5 tonne

TAG Chrome Tow Ball - 50mm, 3.5 tonne

SKU: UNT010

$22.59

compatible

Quantity

Kit Listings

TAG Towbar Heavy Duty for Toyota Rav4 (02/2006 - 01/2013)

T4T536-K201

$1,040.68

Product Description

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

Factory Mounting Points for ease of fitment
Durable Powder Coated Finish.
Class 4,50mm x 50mm Hitch Receiver
TAG Limited Lifetime Warranty
Towbar includes - Tow Ball, Tow Ball Mount, Hitch Pin & R-Clip and D-Shackles

Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.

Product Attributes

Specifications

Towbar class Heavy Duty
Towbar capacity [kg] 1900
Hitch type 50mm Square Hitch Receiver
Tow ball mount L4180
Coating Enamel Immersion Dipped
Bumper removed during fitment No
Bumper cut out required No
Exposure Partially Concealed
Fitting time [min.] 60
Ball weight [kg] 190

Vehicle Applications

Vehicle Applications

Toyota Rav4 (02/2006 - 01/2013)

Make	Model	From	To	Body	Series	Engine	Variant	Drivetrain
TOYOTA	RAV4	02/2006	01/2013	SUV	ACA31	2AZFE \| 2.4L \| Petrol	G 4WD, SPORTS 4WD, STYLE 4WD, X 4WD, X LIMITED 4WD	Automatic/Manual 4WD
TOYOTA	RAV4	02/2006	01/2013	Wagon	ACA38R	2AZFE \| 2.4L \| Petrol	-	Automatic/Manual FWD
TOYOTA	RAV4	02/2006	01/2013	SUV	GSA33R	2GRFE \| 3.5L \| Petrol	.	Automatic 4WD
TOYOTA	RAV4	02/2006	01/2013	SUV	ACA33R	2AZFE \| 2.4L \| Petrol	ALTITUDE,CRUISER, CRUISER L, CV	Automatic/Manual 4WD
TOYOTA	RAV4	02/2006	01/2013	Wagon	ACA38L	2AZFE \| 2.4L \| Petrol	-	FWD
TOYOTA	RAV4	02/2006	01/2013	SUV	ACA38	2AZ-FE \| 2.4L \| Petrol	-	AWD
TOYOTA	RAV4	02/2006	01/2013	Wagon	ACA38	2AZ-FE \| 2.4L \| Petrol	-	AWD
TOYOTA	RAV4	02/2006	01/2013	Wagon	ACA30L	2.0L \| Petrol	VVT-i	FWD
TOYOTA	RAV4	02/2006	01/2013	SUV	GSA33	2GR-FE \| 3.5L \| Petrol	-	AWD
TOYOTA	RAV4	02/2006	01/2013	Wagon	GSA33	2GR-FE \| 3.5L \| Petrol	-	AWD
TOYOTA	RAV4	02/2006	01/2013	SUV	ACA33	2AZ-FE \| 2.4L \| Petrol	-	AWD
TOYOTA	RAV4	02/2006	01/2013	Wagon	ACA33	2AZ-FE \| 2.4L \| Petrol	-	AWD
